No.000229 Swing Clamp

Clamps and rotates workpiece in a swing motion.

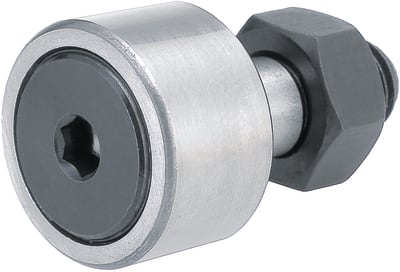

Cam Followers

Product name Cam Followers - Hex Hole, No Seal, Crown Type
Part number CFUA6-16
* Orange colored cells in the table below indicate the part numbers used in this example.

Selection criteria

In order to configure a knuckle joint to support rotating object.

Back to page top

Available sizes

■Cam Followers - Hex Hole, No Seal, Crown Type

Applications Body Nut
Material Seal Material Surface Treatment
Not provided Provided
General 52100 Bearing Steel 1045 Carbon Steel Black Oxide Coating
440C Stainless Steel 304 Stainless Steel -
Low Dust Generation -

■Sizes and Dimensions

Stud Dia. Thread diameter x pitch Outer Ring Diameter Outer Ring Width Overall Length
φ3 M3×0.5 φ10 7 17
φ4 M4×0.7 φ12 8 20
φ5 M5×0.8 φ13 9 23
φ6 M6×1.0 φ16 11 28
φ8 M8x1.25 φ19 11 32
φ10 M10x1.25 φ22 12 36
φ26
φ12 M12x1.5 φ30 14 40
φ32

Back to page top

Accuracy Info

■Cam Follower Accuracy

Stud Diameter Tolerance:  h7.

Outer Ring Width Tolerance:  0/-0.12.

Outer Ring Diameter Tolerance:

Outer Ring Diameter Tolerance
φ10 0/-0.008
φ12
φ13
φ16
φ19 0/-0.009
φ22
φ26
φ30
φ32 0/-0.011

■Rated load and rotation speed of cam follower

Stud Dia.
- Outer Ring Dia.
Basic
Dynamic Load Rating
C (kN)
Basic
Static Load Rating
Cor (kN)
Max.
Allowable Load
(kN)
Track
Load Capacity
(kN)
Max. Rotational Speed (rpm)
With Seal No Seal
φ3−φ10 1.47 1.18 0.36 1.37 32900 47000
φ4−φ12 2.06 2.05 0.78 1.76 25900 37000
φ5−φ13 3.14 2.77 1.42 2.25 20300 29000
φ6−φ16 3.59 3.58 2.11 3.43 17500 25000
φ8−φ19 4.17 4.65 4.73 4.02 14000 20000
φ10−φ22 5.33 6.78 5.81 4.7 11900 17000
φ10−φ26 5.49
φ12−φ30 7.87 9.79 9.37 7.06 9800 14000
φ12−φ32 7.45

Back to page top

Ball Spline

Product name Ball Splines - Both Ends Tapped
Part number BSFM16-335-M8-NTW
* Orange colored cells in the table below indicate the part numbers used in this example.

Selection criteria

Selection to realize unit for rotation and linear motion simultaneously in a compact manner.

Back to page top

Available sizes

■Ball Splines - Both Ends Tapped

Material
Spline Shaft : 52100 Bearing Steel
Nut : 4115 Alloy Steel
Hardness 58HRC or more
Spline Shaft : 440C Stainless Steel
Nut : 440C Stainless Steel
Hardness 55HRC or more
With Round Flange Nut
With Compact Flange Nut -
With Straight Nut -

■Sizes and Dimensions

Nominal Spline Shaft Length Tap Dia. Shaft O.D.
3 4 5 6 8 10 12 16
6 60-400 - - - - - - - 6
8 60-400 - - - - - - 8
10 60-600 - - - - - 10.4
13 60-600 - - - - - 13.4
16 70-600 - - - - 16.6
20 80-700 - - - - 20.6
25 90-900 - - - 25.8
30 100-1150 - - - 30.8

Back to page top

Selection steps

■Selection Steps of Ball Spline

Determining conditions of use.
(Load, Torque, Feed distance, Life).

Temporary selection of specification of ball spline.
(Spline shaft diameter, spline shaft length and overall length are temporary determined in accordance with application condition).

Basic Safety Check.
  • ●Allowable Load.
  • ●Service Life.

Back to page top

Accuracy Info

■Accuracy of Ball Spline Shaft

(μm)

Name
No.
Spline
Shaft Diameter
Max.
Runout of
Nut O.D.
Max. Runout of Spline Axis Line
Length -200 201-315 316-400 401-500 501-630 630-800 801-1000 1001-
6 φ6 11 46 89 126 163 - - - -
8 φ8
10 φ10.4 13 36 54 68 82 102 - - -
13 φ13.4 16 34 45 53 62 75 - - -
16 φ16.6
20 φ20.6 19 32 39 44 50 57 68 83 102
25 φ25.8
30 φ30.8

Back to page top

Performance info.

■Rated Load of Ball Spline

Name
No.
Basic rated Torque Basic Load Rating Allowable Static Moment
Dynamic (Nm) Static (Nm) Dynamic (kN) Static (kN) M 01 (N・m) M 02 (N・m)
6 3.8 7 1.2 2.1 5 36
8 4.8 8.7 1.2 2.1 5 36
10 19 34 3.8 6.9 26 181
13 28 52 4.6 8.3 36 251
16 51 93 6.2 11.1 56 386
20 85 154 8.5 15.3 83 611
25 193 348 15.4 27.7 173 1248
30 272 490 18.5 33.3 212 1581

Back to page top

Technical Calculations

■Calculation of Service Life of Ball Spline

Use the following formula for calculating the running service life of the ball spline.

• Radial Load

• Torque Load

  • L: Running Life (km).
  • ft: Temperature Factor.
  • fh: Hardness Factor.
  • fp: Ratio of Rated Load.
  • fw: Load Factor.
  • L0: Rated Life (50km).
  • C: Basic Dynamic Load Rating (N).
  • F: Applied Radial Load (N).
  • Ct: Basic Dynamic Torque (N·m).
  • T: Applied Torque (N·m).

Use the following formula for calculating the service life of the ball spline.

  • Lh: Run Time (hr).
  • L: Running Life (km).
  • St: Stroke Length (mm).
  • n: Reciprocating Cycles per Minute (cpm).

■Temperature Factor (ft)

■Hardness Factor (fh)

■Ratio of Rated Load (fp)

Name No. Spline Shaft Diameter. Load Divided Direct Download
10 φ10.4 1 0.71
13 φ13.4 1 0.71
16 φ16.6 1 0.68

■Load Factor (fw)

Usage Condition Load Factor (fw)
Minimal vibrations
shocks (slow speed travel 1 to 2 15 m/min or less)
1-2
Some vibrations
shocks(medium speed travel 2 to 3 60 m/min or less)
2-3
Severe vibrations
shocks (high speed travel 3 or more over 60m/min.)
3-

Back to page top

IDEA NOTE A ball spline mechanism that works as a guide

The ball spline not only allows for up and down motion, but also shaft rotary motion for guiding and transferring of workpiece.

IDEA NOTE Clamping work center

The rotation clamp is designed as a mechanism to allow for positioning adjustments.

  • Terms of use of CAD data and simplified drawing data
    These terms and conditions (hereinafter referred to as “the Terms") set forth the conditions for downloading CAD data and simplified drawing data posted on https://th.misumi-ec.com/ (hereinafter referred to as the "Website") operated by MISUMI (THAILAND) CO., LTD. (hereinafter referred to as "MISUMI"). By downloading CAD data and simplified drawing data posted on the Website (hereafter referred to as “Data”), customers are deemed to have agreed to these Terms.

    1. Purpose of Use
    MISUMI offers the following:
    1)CAD data found on the Website (3D CAD data, 3D Intermediate data and 2D CAD data) for the purpose of informing customers of the characteristics of the products offered by MISUMI or a manufacturer affiliated with MISUMI for use in their designs.
    2)Simplified drawing data (in PDF format) for the purpose of checking the specifications of products.
    2. Characteristics of Data
    There may be a discrepancy in certain characteristics of products (for example: tolerance, surface roughness, chamfer, etc.) between the Data and the actual product. Furthermore, for the purpose of reducing the file size of the Data, some information such as oil groove shapes, threads, or spring shapes, may be removed from the Data.
    3. Disclaimer
    MISUMI carefully creates the Data but makes no warranty as to the accuracy of the Data. MISUMI may at any time, and with no prior notice to customers, revise or delete Data. MISUMI assumes no responsibility for any damage or loss resulting from any revision or deletion of the Data, or any errors in said data. Customers are solely responsible for all aspects of their own designs, including those made using MISUMI’s CAD data. MISUMI may provide customers with design example data on the Website, but the quality, accuracy, functionality, safety, reliability, etc., of such data are not guaranteed. MISUMI may, at any time, and in its sole discretion, request that the customer cease its use of or destroy the Data in its possession. MISUMI may request the customer provide MISUMI documentation of such destruction.
    4.Prohibited Acts
    Customers or users of the Data, are prohibited from the following acts regarding the Data, in whole or in part:
    (1)Requesting quotations or placing orders for products with third parties other than those authorized by MISUMI or its affiliates;
    (2)Receiving quotations or orders for products from third parties by providing the Data to a third party or using the Data in their own business;
    (3)Displaying links to the Website related to the Data on their own websites, etc., without MISUMI's consent;
    (4)Using or reproducing the Data beyond the scope of the above-stated Purpose of Use;
    (5)Modifying, altering, tampering with, translating, or adapting the Data;
    (6)Selling, transferring, lending, sublicensing, or providing the Data to third parties in any way without MISUMI’s consent;
    (7)Altering the content, reverse engineering, decompiling, disassembling, or analyzing the Data;
    (8)Publicly disclosing or exhibiting the Data without MISUMI's consent;
    (9)Using the Data for the purpose of providing products and services identical or similar to those of MISUMI;
    (10)Performing acts that interfere with the proper functioning of this Website, such as acquiring Data in bulk.
    5. Copyright
    All title and copyright in and to any information contained in the Data are owned by MISUMI or the relevant manufacturer affiliated with MISUMI and are protected by applicable copyright laws and international treaties. By downloading Data, the customer acquires no ownership rights of any kind in the intellectual property contained within. Without prior approval from MISUMI, no part of the Data may be utilized (reproduced, modified, reverse-engineered, uploaded, presented, sent, distributed, licensed, sold, or published) for any purpose other than that mentioned above.
    In the event Data is found to have been to be used for any purpose other than that mentioned above or against any applicable laws, MISUMI may pursue any legal remedy available to it, which may result in forbidding the offending user from using the Data or accessing the Website.
    6. Third-Party Data
    MISUMI offers some Data provided by third parties. Such Data may be subject to separate terms and conditions, in addition to these terms. MISUMI makes no guarantee or warranty regarding Data from third parties.
    7. Export Control
    Customers shall comply with all applicable laws and regulations regarding the export of the Data.
    8. Amendments to the Terms
    MISUMI may, at any time, and in its sole discretion, modify these terms and conditions; any such modification will be effective immediately.
    9. Severability
    If any term or provision of these Terms is invalid, illegal, or unenforceable in any jurisdiction, such invalidity, illegality, or unenforceability shall not affect any other term or provision of these Terms or invalidate or render unenforceable such term or provision in any other jurisdiction.
    10.Miscellaneous
    These Terms and any disputes arising in connection therewith shall be exclusively governed by and construed in accordance with the laws of Thailand, without regard to its conflicts of law principles. The authorized courts in Thailand shall have exclusive jurisdiction to adjudicate any dispute arising in connection with these Terms.

    Revised: 16th November, 2025

    CAD Download (Unit Assembly)

    CAD Download: File Format
    生成

    Thank you for downloading the data.

    Click the Good IDEA! button when you find interesting design tips.


    This data is utilized in order to list more useful application examples in the future.

    CAD Data Limitations

    1. Assembly data shows the assembly drawings in the concept design phase. The sole purpose of the data is to explain the structure and functionality of the assembly and is not considered nor to be used as a final design.
      You will need to edit the Data so that it meets your specific design conditions.
    2. Unit assembly Data consists of some sub-assemblies.
      It is configured so that each sub-assembly unit can be used as it is or edited.
    3. * The part in the frame is a sub-assembly unit.

    4. The Data for fabricated parts is based on easy-to-edit dimensions and shapes in sketches and histories.
    5. The Data including the third-part components are made by the Company.

    Page top

  • * Unit assembly Data consists of some sub-assemblies.
       It is configured so that each sub-assembly unit can be used as it is or edited.

Application Overview

Purpose

  • Cleans work surface by blowing out dirt using air while the workpiece is being rotated.
    The workpiece is placed on a rotating table while the arm is lowered to clamp it down.

Target workpiece

  • Shape: Cylinder case
  • Size:φ85 x L 102 x t 5mm
  • Weight: 1kg

Design Specifications

Operating Conditions or Design Requirements

  • External dimensions: W 366 x D 482 x H 488mm
  • Arm swing angle: +/- 45°
  • Clam stroke: 50mm
  • Work rotation speed: 75rpm or more

Required Performance

  • Clamp section weight: 2kg

Selection Criteria for Main Components

  • Select a φ25 cylinder in order to lift clamp section 2kg.
  • Select motor of 40 W, reduction ratio 1/80 in order to rotate workpiece at 75rpm or more.

Design Evaluation

Verification of main components

  • Verifying permissible motor moment of inertia based on load inertia.
    • Checking load moment of inertia: J.
      Coupling moment of inertia:Jc=11×10 -5kg・㎡
      Set Collar moment of inertia: Js = mD²/8=0.095×(0.032)²/8=1.2×10-5kg・㎡
      Workpiece moment of inertia: JW = mD²/8=1×(0.085)²/8=90×10-5kg・㎡
      Rotating Shaft moment of inertia: J1 = mD²/8=0.9×(0.028)²/8=8.9×10-5kg・㎡
      Workpiece lower side holder section moment of inertia: J2=mD²/8=1.3×(0.085)²/8=120×10-5kg・㎡
      Workpiece upper side holder section moment of inertia: J3=mD²/8=2.1×(0.085)²/8=190×10-5kg・㎡
      Total: J = Jc + Js + JW + J1 + J2 + J3 = 421 x 10-5kg・m² < 3000 x 10-5kg・m2 = Permissible moment of inertia for motor: JM
      ⇒No problem

Other Design Consideration

  • The clamp arm is set to be capable of rotating 45° in order to avoid interference with the clamp while setting the workpiece.

Explore Similar Application Examples

Page - / -

Part List

No. Part Name Sample Picture MISUMI Part Number
(click the Part Number below for details)
Quantity
1 Rod End Bearings PHSC10A 1
2 Cam Followers CFUA6-16 2
3 Shaft Collars SCCN50-22 1
4 Shaft Collars SCSBS20-24 1
5 Retaining Rings-External STWN30 1
6 Retaining Rings-External STWN10 1
7 Ball Bearing B6204ZZNR 2
8 Ball Bearing B6010ZZNR 2
9 Deep Groove Ball Bearings B6206ZZ 2
10 Couplings MFJC55-20-22 1
11 Ball Spline BSFM16-335-M8-NTW 1
  • The part list above only contains MISUMI parts.
    Part list download (CSV) includes MISUMI and third party components used in this example.
  • Terms of use of CAD data and simplified drawing data
    These terms and conditions (hereinafter referred to as “the Terms") set forth the conditions for downloading CAD data and simplified drawing data posted on https://th.misumi-ec.com/ (hereinafter referred to as the "Website") operated by MISUMI (THAILAND) CO., LTD. (hereinafter referred to as "MISUMI"). By downloading CAD data and simplified drawing data posted on the Website (hereafter referred to as “Data”), customers are deemed to have agreed to these Terms.

    1. Purpose of Use
    MISUMI offers the following:
    1)CAD data found on the Website (3D CAD data, 3D Intermediate data and 2D CAD data) for the purpose of informing customers of the characteristics of the products offered by MISUMI or a manufacturer affiliated with MISUMI for use in their designs.
    2)Simplified drawing data (in PDF format) for the purpose of checking the specifications of products.
    2. Characteristics of Data
    There may be a discrepancy in certain characteristics of products (for example: tolerance, surface roughness, chamfer, etc.) between the Data and the actual product. Furthermore, for the purpose of reducing the file size of the Data, some information such as oil groove shapes, threads, or spring shapes, may be removed from the Data.
    3. Disclaimer
    MISUMI carefully creates the Data but makes no warranty as to the accuracy of the Data. MISUMI may at any time, and with no prior notice to customers, revise or delete Data. MISUMI assumes no responsibility for any damage or loss resulting from any revision or deletion of the Data, or any errors in said data. Customers are solely responsible for all aspects of their own designs, including those made using MISUMI’s CAD data. MISUMI may provide customers with design example data on the Website, but the quality, accuracy, functionality, safety, reliability, etc., of such data are not guaranteed. MISUMI may, at any time, and in its sole discretion, request that the customer cease its use of or destroy the Data in its possession. MISUMI may request the customer provide MISUMI documentation of such destruction.
    4.Prohibited Acts
    Customers or users of the Data, are prohibited from the following acts regarding the Data, in whole or in part:
    (1)Requesting quotations or placing orders for products with third parties other than those authorized by MISUMI or its affiliates;
    (2)Receiving quotations or orders for products from third parties by providing the Data to a third party or using the Data in their own business;
    (3)Displaying links to the Website related to the Data on their own websites, etc., without MISUMI's consent;
    (4)Using or reproducing the Data beyond the scope of the above-stated Purpose of Use;
    (5)Modifying, altering, tampering with, translating, or adapting the Data;
    (6)Selling, transferring, lending, sublicensing, or providing the Data to third parties in any way without MISUMI’s consent;
    (7)Altering the content, reverse engineering, decompiling, disassembling, or analyzing the Data;
    (8)Publicly disclosing or exhibiting the Data without MISUMI's consent;
    (9)Using the Data for the purpose of providing products and services identical or similar to those of MISUMI;
    (10)Performing acts that interfere with the proper functioning of this Website, such as acquiring Data in bulk.
    5. Copyright
    All title and copyright in and to any information contained in the Data are owned by MISUMI or the relevant manufacturer affiliated with MISUMI and are protected by applicable copyright laws and international treaties. By downloading Data, the customer acquires no ownership rights of any kind in the intellectual property contained within. Without prior approval from MISUMI, no part of the Data may be utilized (reproduced, modified, reverse-engineered, uploaded, presented, sent, distributed, licensed, sold, or published) for any purpose other than that mentioned above.
    In the event Data is found to have been to be used for any purpose other than that mentioned above or against any applicable laws, MISUMI may pursue any legal remedy available to it, which may result in forbidding the offending user from using the Data or accessing the Website.
    6. Third-Party Data
    MISUMI offers some Data provided by third parties. Such Data may be subject to separate terms and conditions, in addition to these terms. MISUMI makes no guarantee or warranty regarding Data from third parties.
    7. Export Control
    Customers shall comply with all applicable laws and regulations regarding the export of the Data.
    8. Amendments to the Terms
    MISUMI may, at any time, and in its sole discretion, modify these terms and conditions; any such modification will be effective immediately.
    9. Severability
    If any term or provision of these Terms is invalid, illegal, or unenforceable in any jurisdiction, such invalidity, illegality, or unenforceability shall not affect any other term or provision of these Terms or invalidate or render unenforceable such term or provision in any other jurisdiction.
    10.Miscellaneous
    These Terms and any disputes arising in connection therewith shall be exclusively governed by and construed in accordance with the laws of Thailand, without regard to its conflicts of law principles. The authorized courts in Thailand shall have exclusive jurisdiction to adjudicate any dispute arising in connection with these Terms.

    Revised: 16th November, 2025

    CAD Download (Unit Assembly)

    CAD Download: File Format
    生成

    Thank you for downloading the data.

    Click the Good IDEA! button when you find interesting design tips.


    This data is utilized in order to list more useful application examples in the future.

    CAD Data Limitations

    1. Assembly data shows the assembly drawings in the concept design phase. The sole purpose of the data is to explain the structure and functionality of the assembly and is not considered nor to be used as a final design.
      You will need to edit the Data so that it meets your specific design conditions.
    2. Unit assembly Data consists of some sub-assemblies.
      It is configured so that each sub-assembly unit can be used as it is or edited.
    3. * The part in the frame is a sub-assembly unit.

    4. The Data for fabricated parts is based on easy-to-edit dimensions and shapes in sketches and histories.
    5. The Data including the third-part components are made by the Company.

    Page top

Page top
