No.000123 Multiple Lead Forming Jig
43
43
Workpiece retention and forming by two toggle clamps.
Relevant category
Toggle Clamps
| Product name | Toggle Clamps -Push-Pull- |
|---|---|
| Part number | MC07-3 |
| Features | Suitable when clamping a workpiece from the side. |
* Orange colored cells in the table below indicate the part numbers used in this example.
Selection criteria
Clamping force at the end of the stroke is suitable for the application.
Available sizes
■Toggle Clamps -Push-Pull-
| Material | 1018 Carbon Steel |
|---|---|
| Surface Treatment | Main Body: Trivalent Chromate / Shaft: Nickel Plating |
| Stroke (mm) | 30 |
| Tightening Force (N) | 1960 |
| Weight (g) | 370 |
| Open-Close Angle of Handle | 140° |
| Overall Width | 50 |
| Overall Height (Clamped) | 99.5 |
| Tip Bolt | Steel Bolt |
| Overall Length (Clamped) | 158.5 |
| Overall Length (Unclamped) | 265 |
| Push Shaft Height | 20 |
* Please see the product pages for shape details and dimensions.

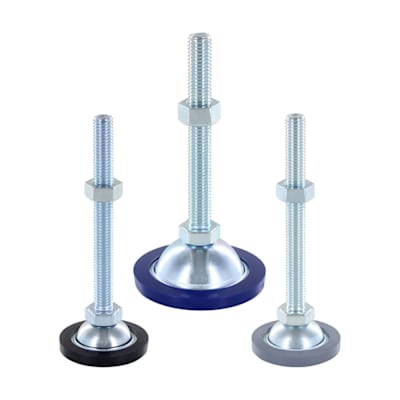

Leveling Mount
| Product name | Adjustment Pads - Nonslip Type |
|---|---|
| Part number | FJGMS10-75-R |
| Features | The rubber material on pads securely grips on the floor surface. |
* Orange colored cells in the table below indicate the part numbers used in this example.
Selection criteria
Select the non-slip type to prevent slipping during operation.
Risk info.
Insufficient for anti-slip effect.
Available sizes
■Adjustment Pads - Nonslip Type
| Main Body | Rubber | |||
|---|---|---|---|---|
| Material | Surface Treatment | Material(Color) | Hardness | |
| Steel Type | 1018 Carbon Steel | Trivalent Chromate | Elastomer (Black) | ― |
| Neoprene Rubber (Black) | Shore A70 | |||
| Non-Migration Chloroprene Rubber (Gray) | ||||
| Electrically Conductive Rubber (Black) | ||||
| PVC (Dark Blue) | ||||
| Stainless Steel | 304 Stainless Steel | Electrolytic Polishing | Elastomer (Black) | ― |
| Neoprene Rubber (Black) | Shore A70 | |||
| Non-Migration Chloroprene Rubber (Gray) | ||||
| Electrically Conductive Rubber (Black) | ||||
■Sizes and Dimensions.
| Thread DIA. | Thread Length (mm). |
|---|---|
| 8 | 50,100 |
| 10 | 75,100 |
| 12 | 75,100,125,150 |
| 16 | 75,100,130,150,180 |
| 20 | 100,130,150,180 |
Performance info
■Speeds / Loads (Load Info.) of Leveling Mount.
| Thread DIA. | Thread Length (mm) | Allowable Vertical Load (kN) |
|---|---|---|
| 8 | 50 | 3.9 |
| 100 | ||
| 10 | 75 | 4.3 |
| 100 | ||
| 12 | 75 | 4.9 |
| 100 | ||
| 125 | ||
| 150 |
-
-
Terms of use of CAD data and simplified drawing data- These terms and conditions (hereinafter referred to as “the Terms") set forth the conditions for downloading CAD data and simplified drawing data posted on https://th.misumi-ec.com/ (hereinafter referred to as the "Website") operated by MISUMI (THAILAND) CO., LTD. (hereinafter referred to as "MISUMI"). By downloading CAD data and simplified drawing data posted on the Website (hereafter referred to as “Data”), customers are deemed to have agreed to these Terms.
- 1. Purpose of Use
-
MISUMI offers the following:
1)CAD data found on the Website (3D CAD data, 3D Intermediate data and 2D CAD data) for the purpose of informing customers of the characteristics of the products offered by MISUMI or a manufacturer affiliated with MISUMI for use in their designs.
2)Simplified drawing data (in PDF format) for the purpose of checking the specifications of products. - 2. Characteristics of Data
- There may be a discrepancy in certain characteristics of products (for example: tolerance, surface roughness, chamfer, etc.) between the Data and the actual product. Furthermore, for the purpose of reducing the file size of the Data, some information such as oil groove shapes, threads, or spring shapes, may be removed from the Data.
- 3. Disclaimer
- MISUMI carefully creates the Data but makes no warranty as to the accuracy of the Data. MISUMI may at any time, and with no prior notice to customers, revise or delete Data. MISUMI assumes no responsibility for any damage or loss resulting from any revision or deletion of the Data, or any errors in said data. Customers are solely responsible for all aspects of their own designs, including those made using MISUMI’s CAD data. MISUMI may provide customers with design example data on the Website, but the quality, accuracy, functionality, safety, reliability, etc., of such data are not guaranteed. MISUMI may, at any time, and in its sole discretion, request that the customer cease its use of or destroy the Data in its possession. MISUMI may request the customer provide MISUMI documentation of such destruction.
- 4.Prohibited Acts
-
Customers or users of the Data, are prohibited from the following acts regarding the Data, in whole or in part:
(1)Requesting quotations or placing orders for products with third parties other than those authorized by MISUMI or its affiliates;
(2)Receiving quotations or orders for products from third parties by providing the Data to a third party or using the Data in their own business;
(3)Displaying links to the Website related to the Data on their own websites, etc., without MISUMI's consent;
(4)Using or reproducing the Data beyond the scope of the above-stated Purpose of Use;
(5)Modifying, altering, tampering with, translating, or adapting the Data;
(6)Selling, transferring, lending, sublicensing, or providing the Data to third parties in any way without MISUMI’s consent;
(7)Altering the content, reverse engineering, decompiling, disassembling, or analyzing the Data;
(8)Publicly disclosing or exhibiting the Data without MISUMI's consent;
(9)Using the Data for the purpose of providing products and services identical or similar to those of MISUMI;
(10)Performing acts that interfere with the proper functioning of this Website, such as acquiring Data in bulk. - 5. Copyright
-
All title and copyright in and to any information contained in the Data are owned by MISUMI or the relevant manufacturer affiliated with MISUMI and are protected by applicable copyright laws and international treaties. By downloading Data, the customer acquires no ownership rights of any kind in the intellectual property contained within. Without prior approval from MISUMI, no part of the Data may be utilized (reproduced, modified, reverse-engineered, uploaded, presented, sent, distributed, licensed, sold, or published) for any purpose other than that mentioned above.
In the event Data is found to have been to be used for any purpose other than that mentioned above or against any applicable laws, MISUMI may pursue any legal remedy available to it, which may result in forbidding the offending user from using the Data or accessing the Website. - 6. Third-Party Data
- MISUMI offers some Data provided by third parties. Such Data may be subject to separate terms and conditions, in addition to these terms. MISUMI makes no guarantee or warranty regarding Data from third parties.
- 7. Export Control
- Customers shall comply with all applicable laws and regulations regarding the export of the Data.
- 8. Amendments to the Terms
- MISUMI may, at any time, and in its sole discretion, modify these terms and conditions; any such modification will be effective immediately.
- 9. Severability
- If any term or provision of these Terms is invalid, illegal, or unenforceable in any jurisdiction, such invalidity, illegality, or unenforceability shall not affect any other term or provision of these Terms or invalidate or render unenforceable such term or provision in any other jurisdiction.
- 10．Miscellaneous
- These Terms and any disputes arising in connection therewith shall be exclusively governed by and construed in accordance with the laws of Thailand, without regard to its conflicts of law principles. The authorized courts in Thailand shall have exclusive jurisdiction to adjudicate any dispute arising in connection with these Terms.
- Revised: 16th November, 2025
CAD Download (Unit Assembly)
CAD Download: File Format
CAD Data Limitations
-
Assembly data shows the assembly drawings in the concept design phase. The sole purpose of the data is to explain the structure and functionality of the assembly and is not considered nor to be used as a final design.
You will need to edit the Data so that it meets your specific design conditions. -
Unit assembly Data consists of some sub-assemblies.
It is configured so that each sub-assembly unit can be used as it is or edited. - The Data for fabricated parts is based on easy-to-edit dimensions and shapes in sketches and histories.
- The Data including the third-part components are made by the Company.
* The part in the frame is a sub-assembly unit.
-
- * Unit assembly Data consists of some sub-assemblies.
It is configured so that each sub-assembly unit can be used as it is or edited.
Application Overview
Purpose
- Jig to clamp and form multiple workpieces at the same time.
Points for use
- Manual mechanism by toggle clamp operations.
- Cover for the workpiece is designed to be removed without using tools.
Target workpiece
- Electronic part.
- Outer dimensions: W9.5 ｘ D6 ｘ H35.
Design Specifications
Operating Conditions or Design Requirements
- Outer dimensions: W276 ｘ D231 x H144.
- Toggle clamp stroke:
Workpiece clamp side: 40mm.
Forming side: 30mm.
Required Performance
- Assumed forming load: 200N.
Selection Criteria for Main Components
- Toggle clamp.
- As the toggles make horizontal movements, a side push type is selected.
- For the toggle clamp for the workpiece clamp, a push-pull type is selected because the clamp handle needs to be in horizontal position during clamping.
- Leveling mount.
- Non-slip type leveling mounts are selected to prevent the jig from slipping during work.
Design Evaluation
Verification of main components
- Verify that selected toggle clamp tightening force is appropriate for lead forming.
- Toggle clamp for forming.
- Assumed forming load: 200N.
(This is an estimated value because the load changes depending on the lead wire diameter, bending position, material, etc.) - Toggle clamp tightening force: 1960N.
- Safety factor: 1960/200 = 9.8times.
(As the load is an estimated value, a large safety factor should be taken into consideration.).
- Assumed forming load: 200N.
Other Design Consideration
- Multiple workpieces are clamped altogether by one clamp and formed by the other clamp.
- To clarify the order of toggle clamp operations, the operation numbers are indicated by stickers attached to the clamps.
- The shape of the workpiece escape in the base block is made smaller to eliminate unacceptable workpieces (bent workpieces).
- The vertical clearance for the lead forming part should be equal to or above the lead wire diameter in size and made as narrow as possible (in consideration of the upper and lower limits of tolerance).
- To prevent the jig from shifting during workpiece retention and forming, leveling mounts with rubber are used.
