No.000087 Aluminum Extrusion Frame Door

Simple open/close detection structure

Magnetic catch

Product name Magnet Catches - with Ferrite Magnet
Part number MGCE1
Features General use magnet catch
* Orange colored cells in the table below indicate the part numbers used in this example.

Selection criteria

Use magnets to keep the door closed.

Back to page top

Risk info.

A single assembly of magnets may not secure the door, multiple catches may be required. Trial and error will help to determine what is needed.

Back to page top

Available sizes

■Magnetic catch

Part name Material Surface treatment
Housing Aluminum alloy Anodize
Magnet Ferrite
Attraction plate Low Carbon Steel Nickel plating

■Sizes and Dimensions

External dims.(mm) Retention force
(kgf)
Housing Magnet Attraction plate
A 36×9×10 16×1 24×9×2.2 0.5
B 56.5×23.5×15.5 21.5×3 30×10×1.6 5.5
C 86.5×23×15.5 21.2×3 55×16×1.6 9

Back to page top

Door Limit Switche

Product name Door Limit Switches
Part number BCWS1
Features Non-contact limit switches to detect door opening/closing.
* Orange colored cells in the table below indicate the part numbers used in this example.

Selection criteria

To easily detect the state of the door, open or close.

Back to page top

Available sizes

■Door limit switch

■Dimensions

Part name Material
Main body ABS Resin
Magnet Ferrite
Terminals 304 Stainless Steel

Back to page top

Performance info.

■Door switch speeds・loads (Load info.)

■Detection range

Back to page top

Detachable Hinges

Product name Detachable Hinges (Stainless Steel)
Part number SHHPSLC6-2
* Orange colored cells in the table below indicate the part numbers used in this example.

Selection criteria

To allow for removal of the door, detachable hinges are selected.

Back to page top

Available sizes

■Stainless steel detachable hinges

■Sizes and Dimensions

Length(mm) Width(mm) Mounting hole DIA.(mm) Material
41 36 5.5 304 Stainless Steel
66
48 48
78
59 62 6.5
96
70 80
113

Back to page top

Performance info.

■Hinge speed・Loads (Load info.)

■Load capacity

Length(mm) Width(mm) Load capacity
(N)
41 36 88
66 108
48 48 117
78 147
59 62 245
96 372
70 80 294
113 392

Back to page top

IDEA NOTE Simple structure

A sensor and a magnetic catch are mounted on aluminum extrusions (Width 30mm).

  • TERMS AND CONDITIONS FOR USE OF CAD DATA
    Your access to the CAD data that MISUMI Corporation (hereinafter referred to as the Company) posts on this site (including 3D CAD data, intermediate 3D CAD data and 2D CAD data; hereinafter referred to as the Data) are of products manufactured and/or sold by the Company (hereinafter referred to as the Products) assumes that you have read and accepted these terms and conditions which govern your use of the Data. If you do not agree to these terms and conditions, you must stop using this website and the Data. You must not use the Data for any unlawful purpose or in any manner inconsistent with these terms and conditions.
    1. CAD Data
    The Data is prepared for assisting the Company's users in the CAD design process by providing dimensions and other Product information. In order to provide the best speed and stability working within this site, the Product drawings were simplified to reduce the size of the Data. For instance, some of the Products are shown without the oil groove shape, screws or spring shape. Also, please be aware that the tolerance, surface roughness and/or chamfer of the Data may vary from the actual Products.
    2. Disclaimer on Data
    While the Company has carefully prepared the Data, accuracy of the Data is not guaranteed and is subject to the variances as described above. The Company may also modify, add or delete the Data at any time without prior notice. The Company assumes no liability for any direct, indirect, consequential or special damages that you may claim resulted from your use of the Data or any changes to or deletions of the Data regardless of the reason. The Company provides no warranty as to the quality, accuracy, functionality, safety or reliability of the combination of Products and parts. Example applications and combinations of the Products are provided for illustrative purposes only.
    3. Copyright
    Copyrights to the content and the Data belong to the Company or the manufacturers of the Products. The said copyright is protected by the Copyright Act and international treaties. The use (including duplication, modification, uploading, posting, transmission, distribution, licensing, sales and publishing) of the Data except for the purpose to use the Data described above without prior approval of the Company is not allowed. The Data cannot be used for any purposes (including sales promotion) except for designing your machine. If you violate this provision or the laws or regulations, the Company may prohibit you from the use of the Data, the Company’s site and/or take legal action. So long as you comply with these terms and conditions, the Company grants to you a non-exclusive, non-transferable, revocable license to access and use the Data for the sole purpose of assisting you in designing machines that incorporate products.
    In case that the CAD data is found to have been to be used for any purpose other than mentioned above or against the related laws, MISUMI may take legal actions, including the one for blocking the involved user from using CAD data and from accessing to the MISUMI site.
    4. Disclaimer of Warranty
    ANY AND ALL CONTENT APPEARING ON THIS WEB SITE IS PROVIDED FOR INFORMATIONAL PURPOSES ONLY. THIS WEB SITE, ITS CONTENT AND ITS LINKS ARE PROVIDED ON AN "AS IS" AND "AS AVAILABLE" BASIS AND ARE USED ONLY AT YOUR SOLE RISK, TO THE FULLEST EXTENT PERMISSIBLE BY LAW. THE COMPANY DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, OF ANY KIND, REGARDING THIS WEB SITE (INCLUDING ITS CONTENT, HARDWARE, SOFTWARE AND LINKS), INCLUDING AS TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, TITLE, NON INFRINGEMENT, RESULTS, ACCURACY, COMPLETENESS, ACCESSIBILITY, COMPATIBILITY, SECURITY AND FREEDOM FROM COMPUTER VIRUS. THE COMPANY WILL NOT BE LIABLE FOR ANY DAMAGES OR LOSSES, INCLUDING DIRECT, INDIRECT, CONSEQUENTIAL, SPECIAL, INCIDENTAL OR PUNITIVE DAMAGES AND/OR LOST PROFITS, IN CONNECTION WITH USE OF THE INTERNET, THIS WEB SITE, ITS CONTENT OR ITS LINKS
    Further, the Company will not be liable to you for any failure or delay by the Company to provide access to the Data or any of its obligations under these terms and conditions where such failure or delay is the direct or indirect result of any circumstances beyond the Company's reasonable control (and the Company's obligations will be suspended for the duration of such circumstances).

    CAD Download (Unit Assembly)

    CAD Download: File Format
    生成

    Thank you for downloading the data.

    Click the Good IDEA! button when you find interesting design tips.


    This data is utilized in order to list more useful application examples in the future.

    CAD Data Limitations

    1. Assembly data shows the assembly drawings in the concept design phase. The sole purpose of the data is to explain the structure and functionality of the assembly and is not considered nor to be used as a final design.
      You will need to edit the Data so that it meets your specific design conditions.
    2. Unit assembly Data consists of some sub-assemblies.
      It is configured so that each sub-assembly unit can be used as it is or edited.
    3. * The part in the frame is a sub-assembly unit.

    4. The Data for fabricated parts is based on easy-to-edit dimensions and shapes in sketches and histories.
    5. The Data including the third-part components are made by the Company.

    Page top

  • * Unit assembly Data consists of some sub-assemblies.
       It is configured so that each sub-assembly unit can be used as it is or edited.

Application Overview

Purpose

  • A see-through door with door limit switch.

Points for use

  • The panel is of clear polycarbonate.
  • A door limit switch is mounted for open/closed confirmation.
  • The door can rotate 180°, and the magnetic catch is used the closed position.

Design Specifications

Operating Conditions or Design Requirements

  • Open/Close angle: Approx. 180°
  • External dims.: W740 x D36 (Including the panel) x H1150mm

Selection Criteria for Main Components

  • Hinge
    • Select according to door size.

Design Evaluation

Verification of main components

  • Hinge to support the weight of the selected door.
  • Hinge
    • Door weight 8kg < 36kg (Load capacity, 12kg/pc. X 3 places)

Other Design Consideration

  • Number and location of the magnetic catches are to be appropriately adjusted for open/close frequency and ease.
  • Spacers are mounted beneath the hinges to eliminate gap between panel and extrusion.
  • Threaded inserts are used to tap the extrusions for reinforced strength.

Explore Similar Application Examples

Page - / -

Part List

No. Part Name Sample Picture MISUMI Part Number
(click the Part Number below for details)
Quantity
1 Aluminum Extrusion NEFS6-3030-1090 2
2 Aluminum Extrusion NEFS6-3030-734 2
3 End Caps for Aluminum Extrusion HFC6-3030-S 4
4 Brackets for Aluminum Extrusion HBKTS6 4
5 Nuts For Aluminum Extrusion HNTT6-6 20
6 Magnet Catches MGCE1 2
7 Door Switch BCWS1 1
8 Detachable Hinges SHHPSLC6-2 3
9 Pull Handles UADS132 1
10 Square Washers FK2TS16-A150-P132 1

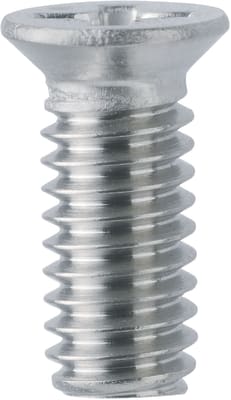

11 Countersunk Screws TSARA3-10 4
12 Thread Inserts HLTS3-6 6
13 Flat Head Cap Screws SFB4-8 6
14 Flat Head Cap Screws SFB4-15 6
  • The part list above only contains MISUMI parts.
    Part list download (CSV) includes MISUMI and third party components used in this example.
