Speed Controller With Single-Action Fittings Inline Type AS Series (AS2002F-06)

SPEED CONTROLLER

Click this image to zoom it.

Move the mouse over or click the image to zoom

Compare This Product

Brand :

SMC

Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

CAD Download

(i)Caution

See catalog for specification details.
Product images may be representative images. Refer to the catalog for shape details.

Product Description

Speed Controller With Single-Action Fittings In-Line Type AS Series
Speed controllers are used to regulate the speed of movement of pneumatic actuators. They offer a wide variety of sizes to choose from.
[Feature]
● Shape : Straight Type
● Control Type : In-Line
● Applicable Tube O.D. (mm.) : 2, 3.2, 4, 6, 8, 10 and 12
● Mounting methods : 4 types consist of Direct mounting, L-shaped bracket mounting, DIN rail mounting, holder mounting.
● Provide Index Plate
● Material
Body - Polybutylene Terephthalate
[Application]
Speed controllers are installed on cylinders to adjust flow rate.

Speed Controller, In-Line Type, AS Series Specifications

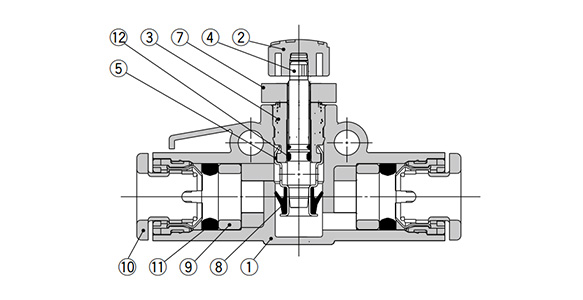

AS1002F, AS2002F, AS2052F structural drawings

Component parts

No.	Description	Material	Note
1	Body A	PBT	-
2	Handle	PBT	-
3	Body B	Brass	Electroless nickel plating
4	Needle	Brass	Electroless nickel plating
5	Seat ring	Brass	Electroless nickel plating
6	Needle guide	Brass	Electroless nickel plating

AS1002F-02, AS3002F, AS4002F structural drawings

Component parts

No.	Description	Material	Note
7	Lock nut	Steel wire^{Note 2)}	Zinc chromate plated^{Note 2)}
8	U-seal	HNBR	-
9	Spacer	POM^{Note 1)}	-
10	Cassette	-	-
11	Seal	NBR	-
12	O-ring	NBR	-

Note 1) AS2052F, AS3002F, AS4002F types are made of PBT. AS3002F-11, AS4002F-11 and AS4002F-13 are made of electroless nickel-plated brass.
Note 2) The material and surface treatment for lock nut option J (round) is brass that is electroless nickel plated for AS1002F-02, AS3002F and AS4002F types only.

Specifications

Usable fluids	Air
Proof pressure	1.5 MPa (1.05 MPa^{Note 1)})
Max. operating pressure	1 MPa (0.7 MPa^{Note 1)})
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	-5 to 60℃ (no freezing)
Applicable tubing material^{Note 2)}	Nylon, soft nylon, polyurethane

Note 1) For AS1002F-02.
Note 2) Use caution at the max. operating pressure when using soft nylon or polyurethane tubing.
Note 3) All brass components are electroless nickel plated.

Flow rate and sonic conductance

Model		AS1002F		AS2002F		AS2052F		AS3002F			AS4002F
Tube outer diameter	Metric size	ø2	ø3.2, ø4, ø6	ø4	ø6	ø6	ø8	ø6	ø8	ø10, ø12	ø10	ø12
Tube outer diameter	Inch Size	-	ø1/8 ", ø5/32 "ø1/4 "	ø5/32 "	ø1/4 "	-	ø1/4 "ø5/16 "	ø1/4 "	ø5/16 "	ø3/8 "	ø3/8 "	ø1/2 "
Controlled flow Free flow	Flow rate L/min (ANR)	20	100	130	230	290	460	390	660	920	920	1,390
Controlled flow Free flow	Sonic conductance dm³/(s·bar)	0.06	0.28	0.36	0.64	0.81	1.3	1.1	1.8	2.6	2.6	3.9
Critical pressure ratio	Controlled flow	0.2
Critical pressure ratio	Free flow	0.25

Note) Flow rate at 0.5 MPa and a temperature of 20°C.

*Refer to the manufacturer's catalog for the specifications and dimensions of other model numbers.

: 30; 60; 90

Part Number
AS2002F-06

Part Number	Price	Name	Minimum Order Qty.	Volume Discount	Days to Ship	Type	Format	Control Method	Joint Type	Material	Environment, Applications	Thread Material	Knob Type	Lock Nut Option	Types of Screw	Applicable Tube O.D. mm (mm)	Applicable Tube O.D. inch size (inch)	Body Size	Dimension L (mm)	Dimension D4 (mm)	Made-to-order specifications	Related component details
	฿ 279.90	SPEED CONTROLLER	1 Piece(s)		Same day	Speed Controller	[Straight] Straight	Meter Out / In	One-touch coupling one both sides	[Resin] PBT	Standard	[Stainless Steel (SUS303, SUS304)] Stainless steel 303	Resin	Hexagon Shape Lock Nut	-	6	-	1/8 standard	-	-	None	-

Please check the type/dimensions/specifications of the part AS2002F-06 in the Speed Controller With Single-Action Fittings Inline Type AS Series series.

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Products with similar specification

Part Number
10-AS1002F-03
10-AS1002F-04
10-AS1002F-04-J
AS2002F-06-J
AS2002F-06-X12
AS2002F-06-X12-J

Price	Minimum Order Qty	Days to Ship	Type	Format	Control Method	Joint Type	Material	Environment, Applications	Thread Material	Knob Type	Lock Nut Option	Types of Screw	Applicable Tube O.D. mm (mm)	Applicable Tube O.D. inch size (inch)	Body Size	Dimension L (mm)	Dimension D4 (mm)	Made-to-order specifications	Related component details
฿ 253.80	1 Piece(s)	55 Day(s)	Speed Controller	[Straight] Straight	Meter Out / In	One-touch coupling one both sides	[Resin] PBT	Clean circumstance	[Stainless Steel (SUS303, SUS304)] Stainless steel 303	Resin	Hexagon Shape Lock Nut	-	-	-	M3, M5 standard	-	-	-	-
฿ 263.70	1 Piece(s)	Same day	Speed Controller	[Straight] Straight	Meter Out / In	One-touch coupling one both sides	[Resin] PBT	Clean circumstance	-	Resin	Hexagon Shape Lock Nut	-	4	-	M3, M5 standard	-	-	-	-
฿ 253.80	1 Piece(s)	3 Day(s)	Speed Controller	[Straight] Straight	Meter Out / In	One-touch coupling one both sides	[Resin] PBT	Clean circumstance	-	Resin	Round Shape Lock Nut	-	4	-	M3, M5 standard	-	-	None	-
฿ 279.90	1 Piece(s)	Same day	Speed Controller	[Straight] Straight	Meter Out / In	One-touch coupling one both sides	[Resin] PBT	Standard	[Stainless Steel (SUS303, SUS304)] Stainless steel 303	Resin	Round Shape Lock Nut	-	-	-	-	-	-	None	-
฿ 577.80	1 Piece(s)	55 Day(s)	Speed Controller	[Straight] Straight	Meter Out / In	One-touch coupling one both sides	[Resin] PBT	Standard	[Stainless Steel (SUS303, SUS304)] Stainless steel 303	Resin	Hexagon Shape Lock Nut	-	-	-	-	-	-	Lubricant: Vaseline	-
฿ 306.00	1 Piece(s)	55 Day(s)	Speed Controller	[Straight] Straight	Meter Out / In	One-touch coupling one both sides	[Resin] PBT	Standard	[Stainless Steel (SUS303, SUS304)] Stainless steel 303	Resin	Round Shape Lock Nut	-	-	-	-	-	-	Lubricant: Vaseline	-
