Stainless Steel Spring Catch C-1539
Caution
Product Description
A stainless steel spring-type catch.
[Features]
· Stainless steel construction with excellent corrosion-resistance.
· Can be locked with a padlock (excluding C-1539-2-AL and C-1539-3-L).
· Ideal for vibration equipment with built-in spring.
· Strengthened with a unique arm shape.
· Equipped with a small stainless steel lock (C-1539-2-AL).
· Automatically locks by a lever so that it will not come off due to vibration, etc. (C-1539-3-L).
· Locks automatically; unlocks with a key (C-1539-2-AL).
[Applications]
· Ships, machine tools, vehicles, measuring instruments.
Spring Catch With Excellent Corrosion Resistance
Materials: cold rolled stainless-steel plate (SUS304)
Surface finish: gloss barrel polishing
Accessories: 2 keys (C-1539-2-AL)
C-1539-2 external appearance
C-1539-2-AL external appearance
C-1539-3-L external appearance
Key No. 488A external appearance

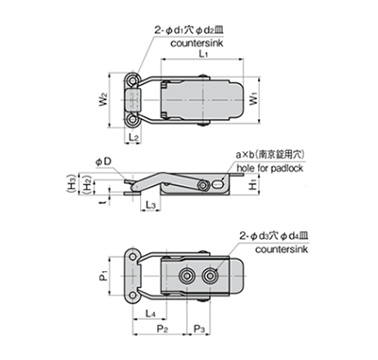

C-1539 dimensional drawing

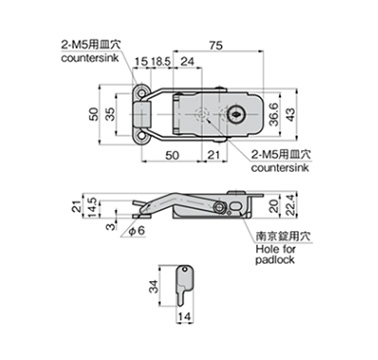

C-1539-2-AL dimensional drawing

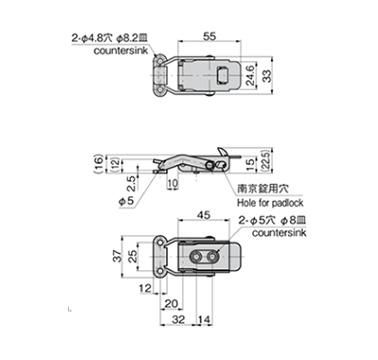

C-1539-3-L dimensional drawing
| Product No. | Reference Tensile Load N | |||||
|---|---|---|---|---|---|---|
| Tightening Margin (mm) Tightening Margin | ||||||
| 1 | 2 | 3 | 4 | 5 | 6 | |
| C-1539-2 | 108 | 167 | 216 | 274 | 323 | 372 |
| C-1539-3 | 69 | 108 | 137 | 176 | 206 | |
| C-1539-4 | 49 | 78.4 | 98 | 127 | ||
| Product No. | L1 | L2 | L3 | L4 | W1 | W2 | H1 | (H2) | (H3) | t | P1 | P2 | P3 | øD | ød1 | ød2 | ød3 | ød4 | a × b | Product Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-1539-2 | 75 | 15 | 18.5 | 31 | 43 | 50 | 20 | 14.5 | 21 | 3 | 35 | 50 | 21 | 6 | 6 | 10.2 | 5.4 | 10 | 10 × 6.5 | 185 |
| C-1539-3 | 55 | 12 | 10 | 20 | 33 | 37 | 15 | 12 | 16 | 2.5 | 25 | 32 | 14 | 5 | 4.8 | 8.2 | 5 | 8 | 9 × 5.5 | 80 |
| C-1539-4 | 45 | 10 | 7 | 15 | 27 | 32 | 12 | 10 | 13 | 2 | 22 | 30 | 12 | 4 | 4.8 | 8.2 | 4.8 | 8.2 | 9 × 5.5 | 45 |
