Surface Mounting Slide Hinge (B-407 / Steel)
Brand :
TAKIGEN
Caution
Product Description
A surface-mounting type slide hinge.
[Features]
· For 150° opening.
· Surface-mounting type so embedding is not required.
· Materials: Cold rolled steel plate (SPCC).
· Surface finish: Chrome plating (MFCr).
· Load capacity: up to approx. 10 kg (when using 2 units).
[Applications]
· Distribution boards / power distribution boards, control panels and inspection doors.
For 150° Outward Opening

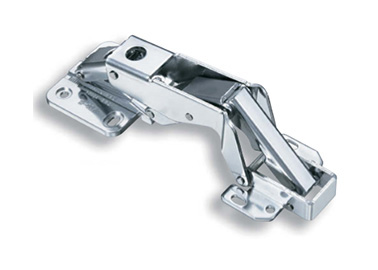

B-407 external appearance (open)

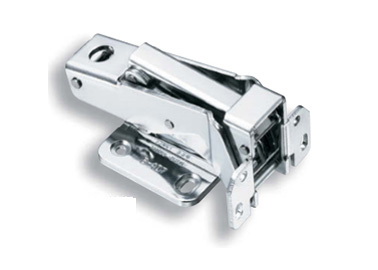

B-407 external appearance (closed)

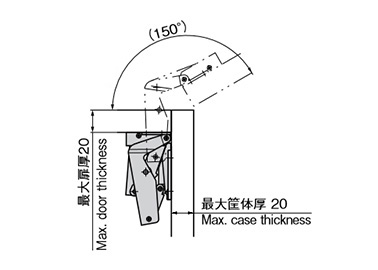

Reference mounting example (Maximum frame thickness of 20)
B-407 dimensional drawing
B-407 dimensional drawing
B-407 dimensional drawing
- *Opened state
B-407 dimensional drawing
| Product No. | Remarks | Product Mass (g) |
|---|---|---|
| B-407-A | Lock in opened state | 195 |
| B-407-B | No locking mechanism | 192 |
| B-407-C | Lock in closed state | 196 |
