Concealed Hinge for Heavy-Duty Use (B-63 / Steel)

Brand :

TAKIGEN

Caution

Product Description

A concealed hinge for heavy loads.
[Features]
· Cushioning is attached to the hinge on the housing side.
· Studs on the case side of the hinge make it easy to mount.
· The shaft is removable,making it easy to mount.
[Applications]
· Large switchboards, cubicles, control panels.

Hinge With Cushioning On Case Side

Hinge For Heavy-Duty Use B-63: related images

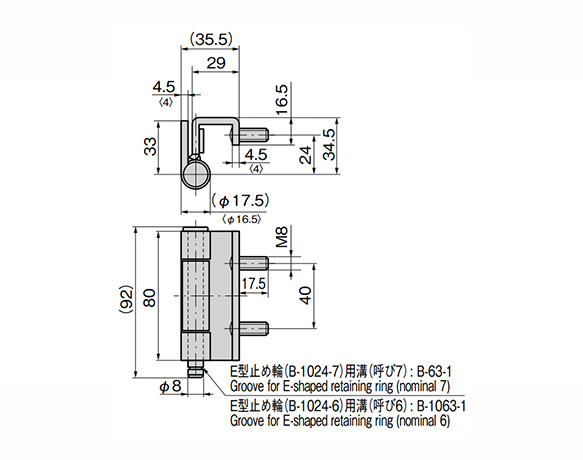

B-63-1 dimensional drawing

Hinge For Heavy-Duty Use B-63: related images

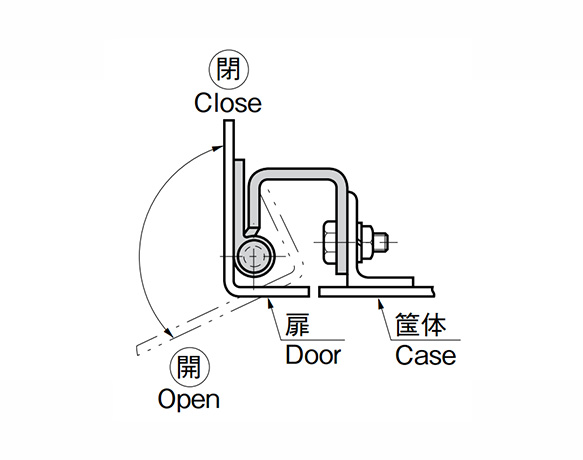

B-63-1 operation drawing

Hinge For Heavy-Duty Use B-63: related images

B-63-2 dimensional drawing

Hinge For Heavy-Duty Use B-63: related images

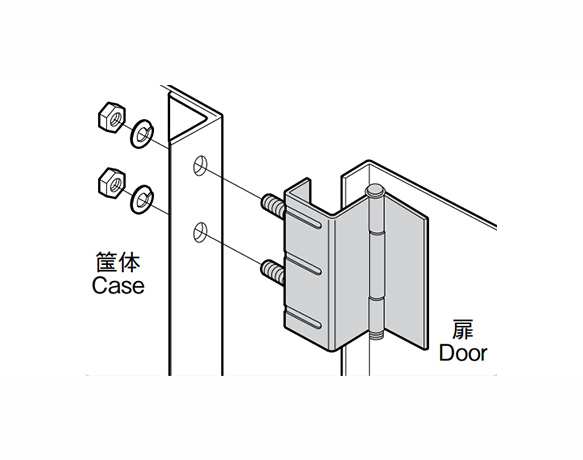

B-63-2 mounting method

Hinge For Heavy-Duty Use B-63: related images

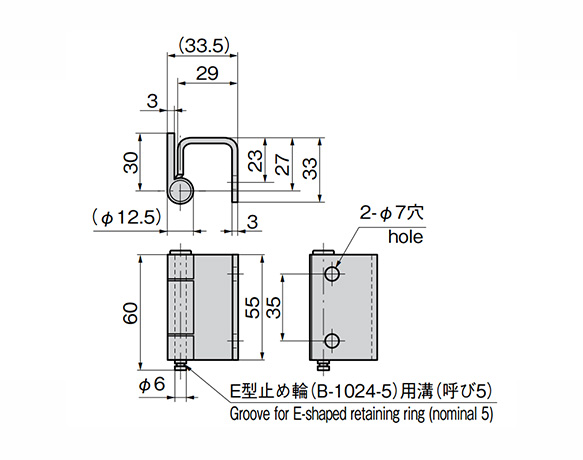

B-63-3 dimensional drawing

Hinge For Heavy-Duty Use B-63: related images

B-63-3 operation drawing
