EE-SX77/SX87 Slim Compact Photomicrosensor
Brand :
OMRON
Caution
Product Description
[Features]
· Small and thin, close attachment possible.
· Easy to use as the indicator lights are visible from both sides.
· Power supply voltage is 5 V DC to 24 V DC extensive.
Slim Compact Photomicrosensor with Attached Cable

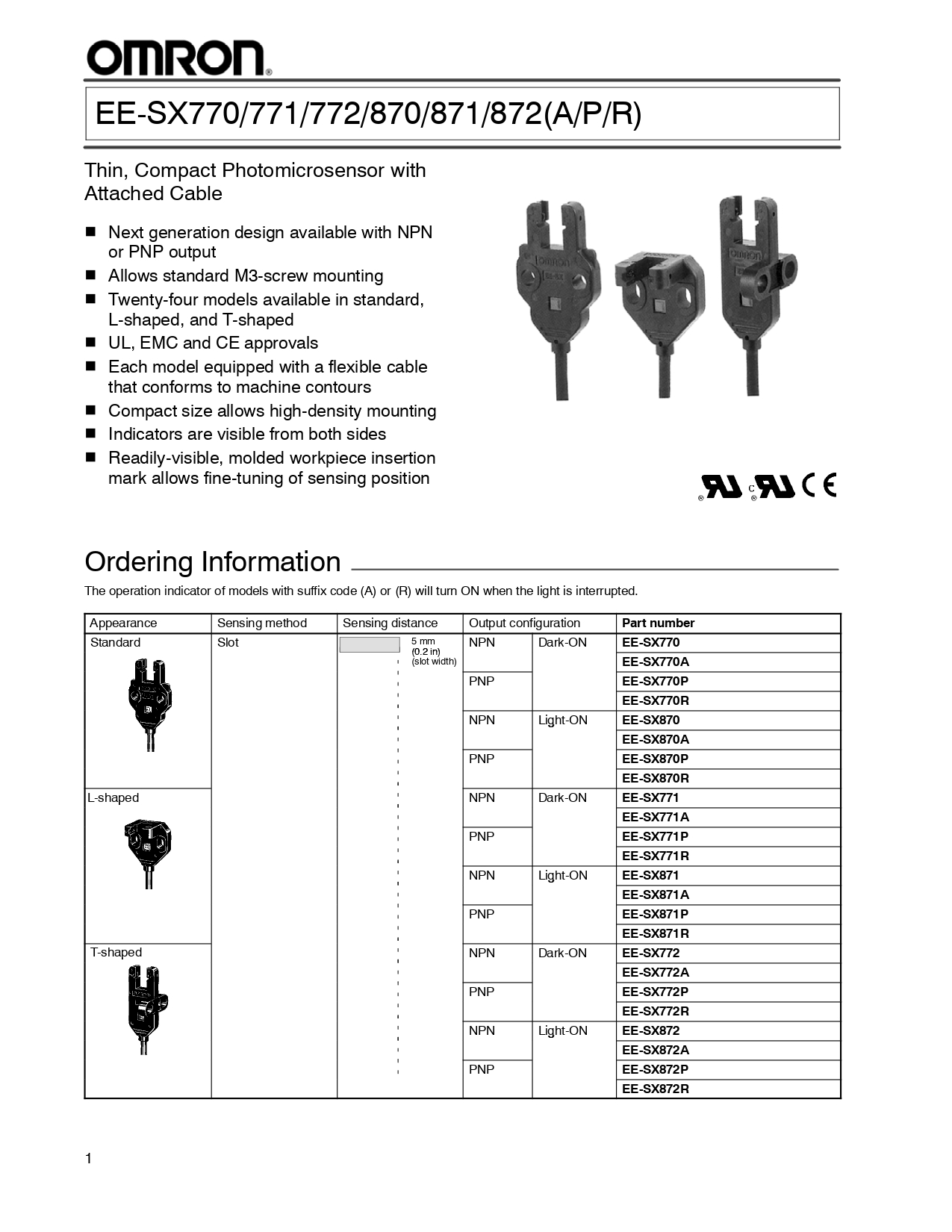

Key Specifications for Slim Compact Photomicrosensor with Attached Cable (EE-SX770/771/772/870/871/872 Series)
| Sensing Method | Through-beam (slot type) |
| Sensing Distance | 5 mm (slot width) |
| Output Type | NPN / PNP (Light-ON / Dark-ON) |
| Power Supply Voltage | 5 to 24 VDC ±10% |
| Current Consumption | NPN: 35 mA max / PNP: 30 mA max |
| Response Frequency | 1 kHz (typ.) |
| Light Source | GaAs infrared LED (peak wavelength: 940 nm) |
| Protection | Overcurrent protection built-in |
| Ambient Temperature | Operating: -25°C to +55°C, Storage: -30°C to +80°C |
| Humidity Range | Operating: 5–85% RH, Storage: 5–95% RH |
| Vibration / Shock Resistance | 20–2,000 Hz, 1.5 mm / 500 m/s² (3 axes, 3 times each) |
| Degree of Protection | IEC60529 IP60 |
| Cable | Pre-wired 2 m (PVC sheath) |
| Casing Material | PBT (polybutylene terephthalate) |
