10FCTB/10FCTR, 10K Cast Iron Ball Valve
Brand :
KITZ
Caution
Product Description
• 10FCTB/10FCTR series Cast Iron Ball Valve - Flange ends connection.
• Kitz product code: 10FCTB and 10FCTR.

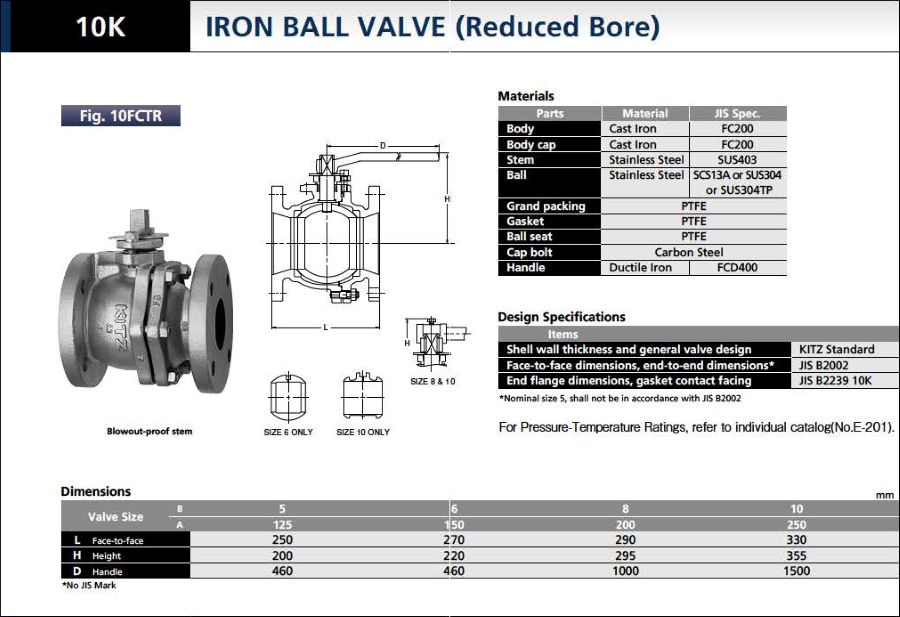

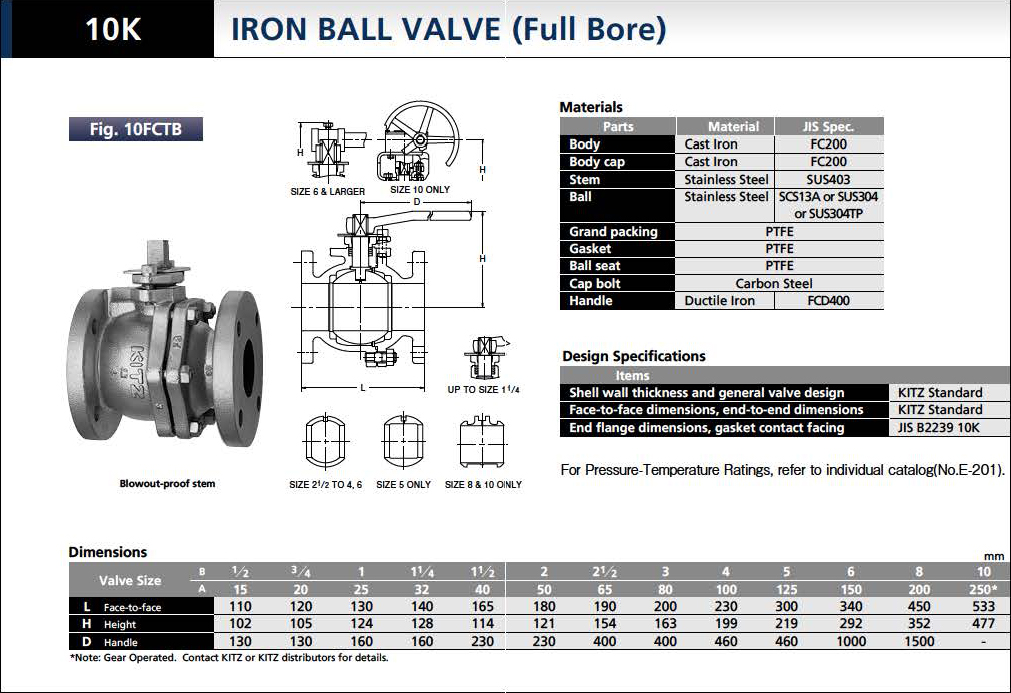

• 10FCTB full bore type and 10FCTR reduced bore type.
• The Body and body cap are Cast iron FC200.
• 10FCTB/10FCTR Ball material: Stainless steel SCS13A,SUS304 ,SUS304TP.
• 10FCTB/10FCTR Stem material: Stainless steel SUS403.
• Ball seal material: Hypatite PTFE.
• Handle Shape: Lever
type.
• Handle material: Ductile iron FCD400.
• Cap bolt material: Carbon steel SS400.
• Applicable Fluid: Water, Oil, Air, Gas and Saturated Steam.
• Flange ends connection: JIS B2239 (10K) standards.
