Compact Flanged Linear Bushings With Pilot, Single / Double

Brand :

MISUMI

Caution

-This product focuses on price competitiveness, and the unit price is low, but there may be rust, scratches, or scratches on the exterior. For those who place importance on product appearance, we recommend purchasing existing Misumi products rather than economy products. - If domestic stock is insufficient, the minimum order quantity may be temporarily increased. we ask For your understanding. - Due to the retainer color change (existing: black, changed: yellow), the color may differ from the representative image, and colors may be mixed and shipped.
This product will be discontinued once stock ran out. The replacement model CLICK here
Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part02 CLICK here

Product Description

Compact Flanged Linear Bushings With Pilot, Single / Double
These Linear Bushings are an economy item, The price is cheaper than the MISUMI standard product.They offer a wide variety of sizes to choose from.
[Feature]
● Support Shaft Diameter Minimum/Maximum (mm.): 6 and 40
● Overall Length Minimum/Maximum (mm.): 19 and 151
● Shape : Compact Flanged With Pilot
● Ball Recirculating Type : Single or Double
● Material:
- Housing - SUJ2 Equivalent
- Ball - SUJ2 Equivalent
[Application]
It is used in industrial machinery such as conveyor systems, packaging machines, and robotic equipment.

Economy Compact Flanged Linear Bushings

Durable High-Performance Versatile

- Precision engineering for seamless linear motion.

- High-quality SUJ2 equivalent material ensures durability.

- Wide range of sizes for shaft diameter

- Single and double ball recirculating options available.

- Affordable and high-performance solution for industrial applications.

MISUMI Standard

Cheaper Price

Product Variety

3D CAD
3D CAD Support

Product Overview of Linear Bushings

The flanged Linear Bushings, linear bearing integrates the linear bearing with the support, which is compact in structure and easy to assemble to the mechanism accurately and simply.
The embedded flanged linear bearing does not extend to the opposite side of the mounting surface, so there is sufficient space on the opposite side of the mounting surface.

Product Features of Linear Bushings

Linear Bushings, Linear bearing is a linear type motion guiding mechanism matched with linear guide shaft. The steel ball rolls circularly along the track groove formed by the shell and the retainer, and the linear bearing reciprocates linearly relative to the guide shaft.
Through the rolling of steel ball, high-efficiency movement with low friction resistance can be realized.

Linear Bushings Feature 1: Effective utilization of space. The combination of the guide shaft and the linear bearing enables effective use of space, suitable for small mechanism designs.
Linear Bushings Feature 2: Selection can be made based on operating environment. The outer cylinder of the linear bearing is made of steel or stainless steel, and the retainer is made of stainless steel for harsh conditions or resin for low noise.
Linear Bushings Feature 3: Good interchangeability. Linear bearings have good interchangeability because they can be used with shafts randomly.
Linear Bushings Feature 4: Appropriate specifications can be selected according to the conditions of use.
Linear Bushings Feature 5: More cost effective than the linear guide.

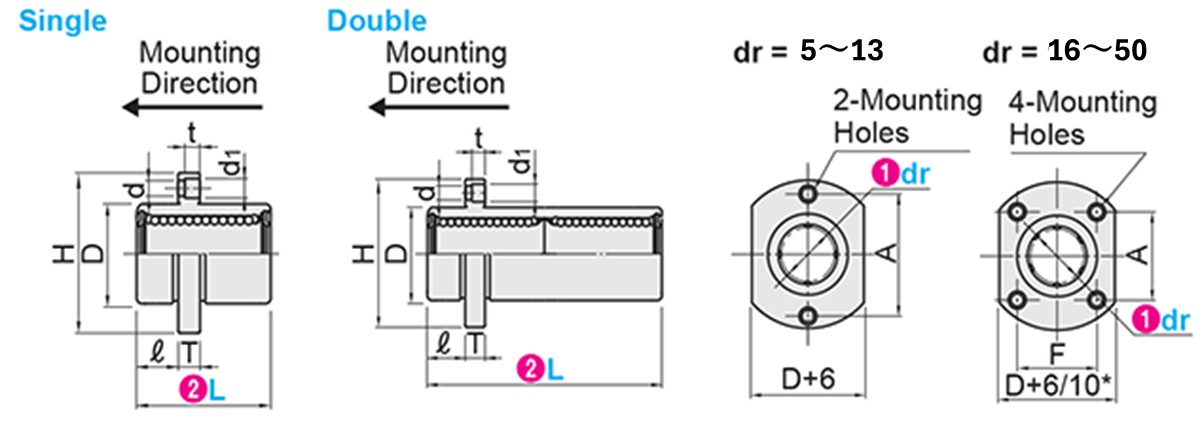

Dimensional Drawing of Linear Bushings

Dimensional Drawing

*dr16～30:D＋6，dr35:D＋8，dr40～50:D＋10
