Tabbed Reversal Brackets - For 2 or More Slots - For 8-45 Series (Slot Width 10mm) Aluminum Frames

Brand :

MISUMI

Caution

Please check the content on our website as the PDF does not contain the most up-to-date information.

Product Description

A bracket for 2-row grooves with ribs and 4 mounting holes on 1 side. You can firmly connect the frame.

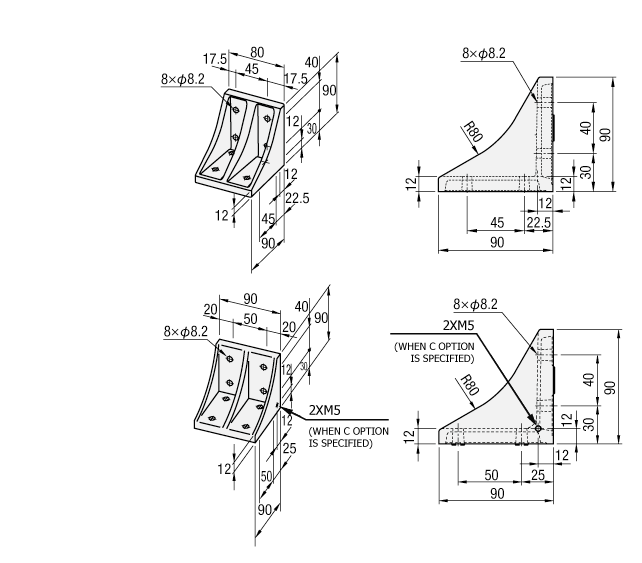

Dimensional Drawing of 90 degree Brackets

Material: ADC12

Specification Table of 90 degree Brackets

Part Number

HBLTD8-45

Part Number	Mass (g)	Applicable Screw, T Nut				Allowable Load (N)	Unit Price	Volume Discount Rate
		Screw	Quantity	T Nut	Quantity		1~99 pc(s).	100~200
HBLFSDW8-90	360	SCB8-22	8	HNTT8-8	8	4986
HBLFSDW8-100	450					5586

Additional Work of 90 degree Brackets

Model	−	(C・SET・SST・SEU・SSU・SEP・SSP・SEC)
HBLFSDW8-90	−	SET
HBLFSDW8-100	−	C-SET

Alterations	Code	Spec.	Applicable 90 degree Brackets
Additional cover mounting holes	C	The 90 degree Brackets can be fitted with M5 tapped holes on both sides for attaching the cover. Model example: HBLFSDW8-90-C (mounting screws:HCBM).	HBLFSDW8-90
			HBLFSDW8-100
			HBLTD8-45
			HBLUD8-45
			HBLTDW8-45
			HBLUDW8-45
			HBLTD8-100
			HBLUW8-100
			HBLPQ8-100

Alterations

Code

Spec.

Applicable 90 degree Brackets

Applicable bolt
and nut set

SET
SST
(Stainless steel)
SEU
(Pre-assembly
spring nut)
SSU
(Pre-assembly
spring nut
stainless steel)
SEP
(Post-assembly
spring nut)
SSP
(Post-assembly
spring nut
stainless steel)

The set includes the applicable bolts and nuts for attaching the 90 degree Brackets to the frame.
(Added to the 90 degree Brackets price)

(Example) When specifying HBLFSDW8-90

	bolt		nut
Code	Model	Quantity	Model	Quantity
SET	SCB8-22	8	HNTT8-8	8
SST	SCB8-22		HNTTSN8-8
SEU	SCB8-22		HNTU8-8
SSU	SCB8-22		SHNTU8-8
SEP	SCB8-22		HNTP8-8
SSP	SCB8-22		SHNTP8-8

−

HBLFSDW8-90

HBLFSDW8-100

NBLTD8-45

HBLTD8-45

HBLUD8-45

HBLTDW8-45

HBLUDW8-45

HBLTD8-100

HBLUW8-100

HBLPQ8-100

■Applicable bolt and nut set details (can be purchased separately)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	SCB8-22	stainless	First in, first out	HNTT8-8	iron	none
SST	SCB8-22	stainless	First in, first out	HNTTSN8-8	stainless	none
SEU	SCB8-22	stainless	First in, first out	HNTU8-8	iron	Yes
SSU	SCB8-22	stainless	First in, first out	SHNTU8-8	stainless	Yes
SEP	SCB8-22	stainless	Later insertion	HNTP8-8	iron	Yes
SSP	SCB8-22	stainless	Later insertion	SHNTP8-8	stainless	Yes

How to Use of 90 degree Brackets

Features: This type has a protrusion that fits into the frame groove.
The protrusion acts as a stopper during fastening work, making it easy to work with.

The protruding inverted 90 degree Brackets can also be used when the frames intersect.
8-45 Series (10mm Groove Width) - For 2-Row Grooves - Reversed 90 degree Brackets with Protrusion: Related Images

8-45 Series (10mm Groove Width) - For 2-Row Grooves - Reversed 90 degree Brackets with Protrusion: Related Images

Model	Compatible Frames
HBLFSDW8-90	8-45 series for 90mm square
HBLFSDW8-100	8-45 series for 100mm square

Technical Information of 90 degree Brackets

■ For the squareness of the square90 degree Brackets, please refer to the squareness tolerance table.
■How to think about the 90 degree Brackets allowable load

8-45 Series (10mm Groove Width) - For 2-Row Grooves - Reversed 90 degree Brackets with Protrusion Related Image 1_Technical Information

As shown in the diagram on the left, two frames are set up, a frame is placed between them, and two 90 degree Bracketss are attached underneath, showing the allowable load per unit.
The allowable load here refers to the load that the 90 degree Brackets can maintain in position (without breaking or slipping) when all mounting holes on the 90 degree Brackets are fixed with bolts and a load is applied.

Similar Products of 90 degree Brackets

■8-45 Series (groove width 10 mm) - For 2-row grooves -

Product name	Inverted 90 degree Brackets with protrusion (this product)	Thick extruded 90 degree Brackets	Extra-thick extruded 90 degree Brackets	Extruded thick 90 degree Brackets mounting holes x 4	Thin 90 degree Brackets	Thick extruded 90 degree Brackets for 100mm square	Extra-thick extruded 90 degree Brackets for 100mm square
Representative model	HBLFSDW8-90 HBLFSDW8-100	HBLTD8-45	HBLTD8-45	HBLTDW8-45 HBLUDW8-45	HBLSD8-45	HBLTD8-100	HBLUW8-100
Material	ADC12	A6063S-T5 A6N01SS-T5	A6N01SS-T5	A6N01SS-T5	A6N01SS-T5	A6N01SS-T5	A6N01SS-T5
Suitable frame angle	90 square/100 square	90 square	90 square	90 square	90 square	100 square	100 square
Allowable load (N)	4986/5586	2940	3920	4410/5586	2352	2940	5586
Features	The mounting surface has a protrusion, making it easy to position during installation.	This is an extruded 90 degree Brackets for 90mm square. It has an aesthetically pleasing design that prevents dust from accumulating.	Compared to HBLTD8-45, it provides a stronger connection with the same number of bolts.	Compared to the HBLTD8-45, there are four mounting holes on each side, allowing for a stronger connection.	This is effective for space saving during installation. It does not protrude from the frame when cross-connected.	This is an extruded 90 degree Brackets for 100mm square. It has an aesthetically pleasing design that prevents dust from accumulating.	Compared to the HBLTD8-100, there are four mounting holes on each side, allowing for a stronger connection.
