Tabbed Bracket with Slotted Hole - 8 Series, 10mm Slot, 1 Slot

Brand :

MISUMI

Caution

Product Description

Since one side has a slotted hole, the bolt head does not interfere even if using captive washer hex socket bolts.

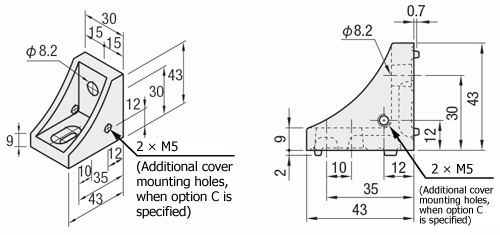

Dimensional Drawing of 90 degree Brackets

HBLFSH8

8 Series (10mm Groove Width) - Single Row Groove - Single-Sided Slot 90 degree Brackets: Related Images

[ ! ]For the 90 degree Brackets's squareness, please refer to the squareness tolerance table
. [ M ]Material: ADC12 [ S ]Surface treatment: None

Specification Table of 90 degree Brackets

Model

HBLFSH8

- The price list below is currentas of April 2011.
- To check the latest price, click the "Check Price" button after confirming the model number.
[!]Bolts and nuts are not included with the 90 degree Brackets.
Please check the table below for compatible bolts and nuts.
If you wish to purchase a bolt and nut set, please select it from the "Accessories" filter.
For detailed specifications, please check the individual product links under "Applicable bolt and nut set" for additional processing (can be purchased individually).

Model	Mass (g)	Compatible bolts and T-nuts				Allowable load (N)
Model	Mass (g)	bolt	Quantity	T-nut	Quantity	Allowable load (N)
HBLFSH8	52	CBM8-20	2	HNTT8-8	2	2058

Additional Work of 90 degree Brackets

Model	−	(C・SET・SST・SEU・SSU・SEP・SSP・SEC)
HBLFSH8 HBLFSH8	− −	SET C-SET

Alterations	Code	Spec.	Applicable 90 degree Brackets
Additional cover mounting holes	C	The 90 degree Brackets can be fitted with M5 tapped holes on both sides for attaching the cover. Model example: HBLFSH8-C (mounting screws:HCBM).	HBLFSH8
			HBLFSSW8

Usage example

■Cover installation example
● Please specify alteration code -C.

HCBM5-10

Alterations

Code

Spec.

Applicable 90 degree Brackets

Applicable bolt
and nut set

SET
SST
(Stainless steel)
SEU
(Pre-assembly
spring nuts)
SSU
(Pre-assembly
spring nuts
stainless steel)
SEP
(Post-
assembly spring nuts)
SSP
(Post-assembly
spring nuts
stainless steel)
SEC
(Bolts and nuts with assembled washers)

The set includes the applicable bolts and nuts for attaching the 90 degree Brackets to the frame. (Added to the 90 degree Brackets price)

(Example) When specifying HBLFSH8

	bolt		nut
Code	Model	Quantity	Model	Quantity
SET	CBM8-20	2	HNTT8-8	2
SST	SCB8-20		HNTTSN8-8
SEU	CBM8-20		HNTU8-8
SSU	SCB8-20		SHNTU8-8
SEP	CBM8-20		HNTP8-8
SSP	SCB8-20		SHNTP8-8
SEC	HCBST8-24		HNTT8-8

HBLFSH8

HBLFSSW8

[ ! ]When -SET, -SEU, or -SEP is specified, the included bolts are not RoHS compliant.

■Applicable bolt and nut set details (can be purchased separately)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	CBM8-20	iron	First in, first out	HNTT8-8	iron	none
SST	SCB8-20	stainless	First in, first out	HNTTSN8-8	stainless	none
SEU	CBM8-20	iron	First in, first out	HNTU8-8	iron	Yes
SSU	SCB8-20	stainless	First in, first out	SHNTU8-8	stainless	Yes
SEP	CBM8-20	iron	Later insertion	HNTP8-8	iron	Yes
SSP	SCB8-20	stainless	Later insertion	SHNTP8-8	stainless	Yes
SEC	HCBST8-24	Iron (with washer)	First in, first out	HNTT8-8	iron	none

How to Use of 90 degree Brackets

Features: This type has a protrusion that fits into the frame groove.
The protrusion acts as a stopper during fastening work, making it easy to work with.

[ ! ]Even when using hexagon socket head bolts with assembled washers, installation is possible without the bolt heads interfering with each other.
8 Series (10mm Groove Width) - Single Row Groove - Single-Sided Slot 90 degree Brackets: Related Images

Technical Information of 90 degree Brackets

■ For the squareness of the 90 degree Brackets, please refer to the squareness tolerance table .
■How to think about the 90 degree Brackets allowable load

8 Series (10mm Groove Width) - Single Row Groove - Single-Sided Slot 90 degree Brackets Related Image 1_Technical Information

As shown in the diagram on the left, two frames are set up, a frame is placed between them, and two 90 degree Brackets are attached underneath, showing the allowable load per unit.
The allowable load here refers to the load that the 90 degree Brackets can maintain in position (without breaking or slipping) when all mounting holes on the 90 degree Brackets are fixed with bolts and a load is applied.

Similar Products of 90 degree Brackets

■ 90 degree Brackets with protrusion

There is a protrusion on the mounting surface to prevent rotation.

Product name	Single-sided slotted 90 degree Brackets	Reversible 90 degree Brackets with protrusion	Single rib 90 degree Brackets	90 degree Brackets with protrusion on one side	Nut-fastened 90 degree Brackets	90 degree Brackets with cover
Product Photos				No protrusions on one side, can be connected to the plate
Material	ADC12	ADC12	ADC12	ADC12	ADC12	ADC12
Features	This type has an elongated hole on one side. The bolt head does not interfere even when using a washer-integrated bolt.	The mounting surface has a protrusion, making it easy to position during installation. This is the most conventional type.	This type has a rib (side) on only one side, making it easy to turn a hex wrench.	The protrusion is on one side only, which is useful when connecting frames and plates.	The long protrusion serves as a nut stop, eliminating the need for fine adjustment of the nut position.	This type is equipped with a dustproof cover, which prevents dust from accumulating inside and is excellent for hygiene.
Representative model	This product	HBLFSNK8	HBLFSL8	HBLFSNK8	HBLFSR8	HBLFSNT8
