Thick Bracket - 8-45 Series, 10mm Slot, 2 or More Slots

Brand :

MISUMI

Caution

Download Free! >> Economy Series Catalog (TH-EN-FY25) CLICK here

Product Description

It is a bracket that can connect a 2-row groove type frame with a single bracket.

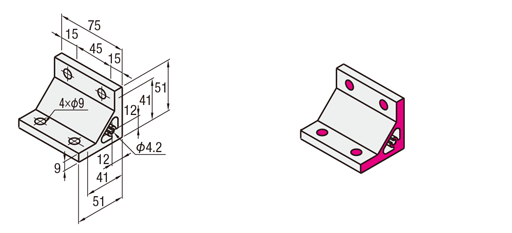

Dimensional Drawing of 90 degree Brackets

NBLTD8-45
HBLTD8-45

[ ! ]NBLTD8-45 does not have anodized aluminum on both sides or on the bolt holes.

[ ! ]The contact surface of the aluminum frame is milled to guarantee squareness.
[ ! ]For the squareness of the 90 degree Brackets, please refer to the squareness tolerance table.
[ ! ]NBLTD8-45 is not milled. The squareness tolerance is ±1°.

Type	[M]Material	[S] Surface Treatment
NBLTD8-45	A6063S−T5	Anodized aluminum treatment[ ! ]
HBLTD8-45	A6N01SS−T5	Anodized aluminum treatment[ ! ]

Specification Table of 90 degree Brackets

Model

HBLTD8-45

・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

[ ! ]Bolts and nuts are not included with the 90 degree Brackets.
Please check the table below for compatible bolts and nuts.
If you would like to purchase a bolt and nut set, please select it from the "Accessories" filter.
For detailed specifications, please check the individual product links under "Applicable bolt and nut set" (can be purchased individually).

Model	Mass (g)	Compatible bolts and T-nuts				Allowable load (N)
		bolt	Quantity	T-nut	Quantity
NBLTD8-45	163	CBM8-20	4	HNTT8-8	4	2940
HBLTD8-45

Additional Work of 90 degree Brackets

Model	−	(C・SET・SST・SEU・SSU・SEP・SSP・SEC)
HBLTD8-45	−	SET
HBLTD8-45	−	C-SET

Alterations	Code	Spec.	Applicable 90 degree Brackets
Additional cover mounting holes	C	The 90 degree Brackets can be fitted with M5 tapped holes on both sides for attaching the cover. Model example: HBLTD8-45-C (mounting screws:HCBM).	HBLFSDW8-90
			HBLFSDW8-100
			HBLTD8-45
			HBLUD8-45
			HBLTDW8-45
			HBLUDW8-45
			HBLTD8-100
			HBLUW8-100
			HBLPQ8-100

Alterations

Code

Spec.

Applicable 90 degree Brackets

Applicable bolt
and nut set

SET
SST
(Stainless steel)
SEU
(Pre-assembly
spring nuts)
SSU
(Pre-assembly
spring nuts
stainless steel)
SEP
(Post-
assembly spring nuts)
SSP
(Post-assembly
spring nuts
stainless steel)
SEC( Bolts and nuts
with assembled washer)

The set includes the applicable bolts and nuts for attaching the 90 degree Brackets to the frame.
(Added to the 90 degree Brackets price)

(Example) When specifying HBLTD8-45

	bolt		nut
Code	Model	Quantity	Model	Quantity
SET	CBM8-20	4	HNTT8-8	4
SST	SCB8-20		HNTTSN8-8
SEU	CBM8-20		HNTU8-8
SSU	SCB8-20		SHNTU8-8
SEP	CBM8-20		HNTP8-8
SSP	SCB8-20		SHNTP8-8
SEC	HCBST8-24		HNTT8-8

[ ! ]If specifying a part other than HBLTD8-45, please check the corresponding compatible bolts and nuts.

−

HBLFSDW8-90

HBLFSDW8-100

NBLTD8-45

HBLTD8-45

HBLUD8-45

HBLTDW8-45

HBLUDW8-45

HBLTD8-100

HBLUW8-100

HBLPQ8-100

[ ! ]When −SET, −SEU, or −SEP is specified, the included bolts are not RoHS compliant.

■Applicable bolt and nut set details (can be purchased separately)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	CBM8-20	iron	First in, first out	HNTT8-8	iron	none
SST	SCB8-20	stainless	First in, first out	HNTTSN8-8	stainless	none
SEU	CBM8-20	iron	First in, first out	HNTU8-8	iron	Yes
SSU	SCB8-20	stainless	First in, first out	SHNTU8-8	stainless	Yes
SEP	CBM8-20	iron	Later insertion	HNTP8-8	iron	Yes
SSP	SCB8-20	stainless	Later insertion	SHNTP8-8	stainless	Yes
SEC	HCBST8-24	Iron (with washer)	First in, first out	HNTT8-8	iron	none

Product Features of 90 degree Brackets

Extrusion 90 degree Brackets: Made from extruded aluminum. Standard anodized finish.
Product features: This 90 degree Brackets allows for connection to a double-groove frame with just one 90 degree Brackets.Extra-thick 90 degree Bracketsare also available,
which allow for stronger connections with more bolts .

Compatible Frames	8-45 series for 90mm square

■ Mechanical properties of aluminum frame material (JIS standard reference)

Type	NBLTD8-45	HBLTD8-45
Material (JIS symbol)	A6063S-T5	A6N01SS-T5
Tensile strength (N/mm²)	155 or more	245 or more
Yield strength (N/mm²)	110 or more	205 or more
Modulus of elasticity (N/mm²)	69972	69972
Brinell hardness (HB)	88	88
Surface Treatment	Anodized 9μm or more	Anodized 9μm or more

Technical Information of 90 degree Brackets

■ Perpendicularity

Please check the squareness tolerance table for the 90 degree Brackets's squareness .

■ 90 degree Brackets allowable load concept

8-45 Series (10mm Groove Width) - For 2-Row Grooves - Extruded Thick 90 degree Brackets Related Image 1_Technical Information

As shown in the diagram on the left, two frames are set up, a frame is placed between them, and two 90 degree Brackets are attached underneath, showing the allowable load per unit.
The allowable load here refers to the load that the 90 degree Brackets can maintain in position (without breaking or slipping) when all mounting holes on the 90 degree Brackets are fixed with bolts and a load is applied.

Similar Products of 90 degree Brackets

■8-45 Series (groove width 10 mm) - For 2-row grooves -

Product name	Thick extruded 90 degree Brackets (this product)	Extra-thick extruded 90 degree Brackets	Extruded thick 90 degree Brackets mounting holes x 4	Reversible 90 degree Brackets with protrusion	Thin 90 degree Brackets	Thick extruded 90 degree Brackets for 100mm square	Extra-thick extruded 90 degree Brackets for 100mm square
Representative model	HBLTD8-45	HBLTD8-45	HBLTDW8-45 HBLUDW8-45	HBLFSDW8-90 HBLFSDW8-100	HBLSD8-45	HBLTD8-100	HBLUW8-100
Material	A6063S-T5 A6N01SS-T5	A6N01SS-T5	A6N01SS-T5	ADC12	A6N01SS-T5	A6N01SS-T5	A6N01SS-T5
Suitable frame angle	90 square	90 square	90 square	90 square/100 square	90 square	100 square	100 square
Allowable load (N)	2940	3920	4410/5586	4986/5586	2352	2940	5586
Features	This is an extruded 90 degree Brackets for 90mm square. It has an aesthetically pleasing design that prevents dust from accumulating.	Compared to HBLTD8-45, it provides a stronger connection with the same number of bolts.	Compared to the HBLTD8-45, there are four mounting holes on each side, allowing for a stronger connection.	The mounting surface has a protrusion, making it easy to position during installation.	This is effective for space saving during installation. It does not protrude from the frame when cross-connected.	This is an extruded 90 degree Brackets for 100mm square. It has an aesthetically pleasing design that prevents dust from accumulating.	Compared to the HBLTD8-100, there are four mounting holes on each side, allowing for a stronger connection.
