Tabbed Reversal Bracket - 8 Series, 10mm Slot, 2 Slots (90 Degree)

Brand :

MISUMI

Caution

Product Description

A 2-row groove type frame (HFS8-8080, etc.) can be connected with a single bracket.

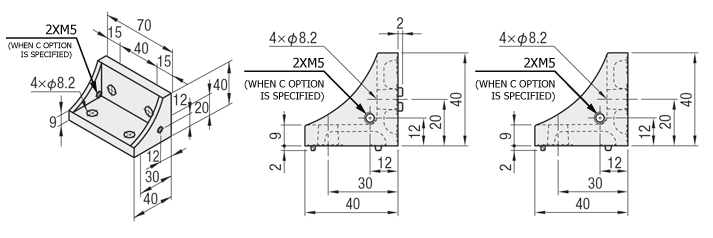

Dimensional Drawing of 90 degree Brackets

HBLFSD8 side view

HBLFSDK8 side view
(with protrusions on the bottom only)

HBLFSD8
HBLFSDK8
(with protrusion on one side)

[ ! ]For the 90 degree Brackets squareness, please refer to the squareness tolerance table
. [ M ]Material: ADC12 [ S ]Surface treatment: None

Specification Table of 90 degree Brackets

Model

HBLFSD8

- The price list below is currentas of April 2011.
- To check the latest price, click the "Check Price" button after confirming the model number.
[!]Bolts and nuts are not included with the 90 degree Brackets.
Please check the table below for compatible bolts and nuts.
If you wish to purchase a bolt and nut set, please select it from the "Accessories" filter.
For detailed specifications, please check the individual product links under "Applicable bolt and nut set" for additional processing (can be purchased individually).

Model	Mass (g)	Compatible bolts and T-nuts				Allowable load (N)
		bolt	Quantity	T-nut	Quantity
HBLFSD8	89	CBM8-20	4	HNTT8-8	4	3087
HBLFSDK8

Additional Work of 90 degree Brackets

Model	−	(C・SET・SST・SEU・SSU・SEP・SSP・SEC)
HBLFSD8 HBLFSD8	− −	SET C−SET

Alterations	Code	Spec.	Applicable 90 degree Brackets
Additional cover mounting holes	C	The 90 degree Brackets can be fitted with M5 tapped holes on both sides for attaching the cover. Model example: HBLFSD8-C (mounting screws:HCBM).	HBLFTD8
			HBLFUD8
			HBLFSD8
			HBLFSDK8

Usage example

■Cover installation example
● Please specify alteration code -C.

HCBM5-10

8 Series (10mm Groove Width) - Single Row Groove - Single-Sided Slot 90 degree Brackets: Related Images

Alterations

Code

Spec.

Applicable 90 degree Brackets

Applicable bolt
and nut set

SET
SST
(Stainless steel)
SEU
(Pre-assembly
spring nuts)
SSU
(Pre-assembly
spring nuts
stainless steel)
SEP
(Post-
assembly spring nuts)
SSP
(Post-assembly
spring nuts
stainless steel)
SEC
(
Bolts and nuts with assembled washers)

The set includes the applicable bolts and nuts for attaching the 90 degree Brackets to the frame.
(Added to the 90 degree Brackets price)

(Example) When specifying HBLFSD8

	bolt		nut
Code	Model	Quantity	Model	Quantity
SET	CBM8-20	4	HNTT8-8	4
SST	SCB8-20		HNTTSN8-8
SEU	CBM8-20		HNTU8-8
SSU	SCB8-20		SHNTU8-8
SEP	CBM8-20		HNTP8-8
SSP	SCB8-20		SHNTP8-8
SEC	HCBST8-24		HNTT8-8

[ ! ]If specifying a type other than HBLFSD8, please check the compatible bolts and nuts.

HBLFTD8

HBLFUD8

HBLFSD8

HBLFSDK8

[ ! ]When −SET, −SEU, or −SEP is specified, the included bolts are not RoHS compliant.

■Applicable bolt and nut set details (can be purchased separately)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	CBM8-20	iron	First in, first out	HNTT8-8	iron	none
SST	SCB8-20	stainless	First in, first out	HNTTSN8-8	stainless	none
SEU	CBM8-20	iron	First in, first out	HNTU8-8	iron	Yes
SSU	SCB8-20	stainless	First in, first out	SHNTU8-8	stainless	Yes
SEP	CBM8-20	iron	Later insertion	HNTP8-8	iron	Yes
SSP	SCB8-20	stainless	Later insertion	SHNTP8-8	stainless	Yes
SEC	HCBST8-24	Iron (with washer)	First in, first out	HNTT8-8	iron	none

How to Use of 90 degree Brackets

Features: This type has a protrusion that fits into the frame groove.
The protrusion acts as a stopper during fastening work, making it easy to work with.

The protruding inverted 90 degree Brackets
can also be used when the frames intersect.

Technical Information of 90 degree Brackets

■ Perpendicularity

Please check the squareness tolerance table for the 90 degree Brackets squareness .

■ 90 degree Brackets allowable load concept

8 Series (10mm Groove Width) - For 2-Row Groove - Reversed 90 degree Brackets with Protrusion Related Image 1_Technical Information

As shown in the diagram on the left, two frames are set up, a frame is placed between them, and two 90 degree 90 degree Brackets are attached underneath, showing the allowable load per unit.
The allowable load here refers to the load that the 90 degree Brackets can maintain in position (without breaking or slipping) when all mounting holes on the 90 degree Brackets are fixed with bolts and a load is applied.

How to install a bolt with spring washer (additional processing: SEC) of 90 degree Brackets

■How to install 90 degree Brackets for aluminum frames that come with spring washer bolts (additional processing: SEC)

This product requires more care when tightening than other series of sets with bolts equipped with spring washers, as the bolt heads interfere with each other.
We will introduce how to install this product.

STEP 1 Installation order

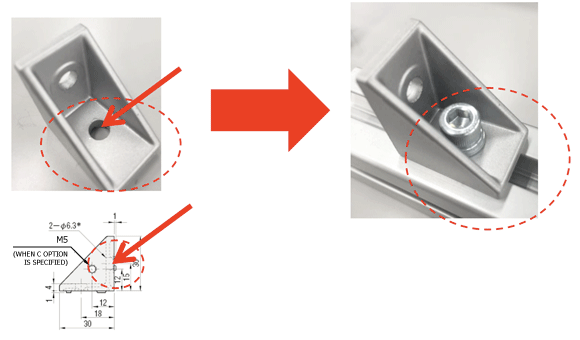

STEP 2 Tightening the hex bolts

Tighten the hex bolt securely. Related image 1_Installation method: Related image

Of the two holes, install through the hole mentioned above.

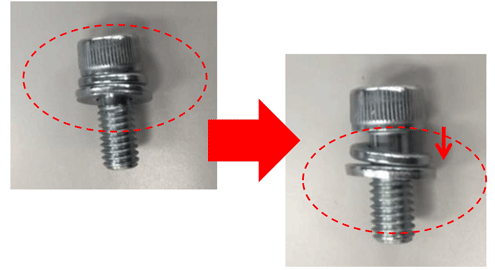

STEP 3 Adjust the position of the bolt spring washer

Then, press down on the spring washer part of the bolt with your hand.If you leave it in this state when tightening the remaining bolts
, the heads of the previously tightened bolts
will interfere and the bolts will not be able to be installed. Related image 1_Installation method: Related image

STEP 4 Tighten the hex bolt.
Finally, tighten the hex bolt by twisting it.

As you can see, care must be taken when installing the spring washer.
If it is difficult to pre-tighten one side, we recommend using the following product.

<Alternative>
Change the bolt without changing the 90 degree Brackets:
HBLFSD8-SET(change the bolt and nut set that can be used for additional processing)

Similar Products of 90 degree Brackets

■8 Series (groove width 10 mm) - For 2-row grooves -

name	Inverted 90 degree Brackets with protrusion (this product)	Protrusion 90 degree Brackets	Thick extruded 90 degree Brackets	Extra-thick extruded 90 degree Brackets	Thick extruded 90 degree Brackets (8 holes)	Extra-thick extruded 90 degree Brackets (8 holes)	Thin 90 degree Brackets
Protrusion position	With protrusions on both sides / With protrusions on one side	With protrusions on both sides	-	-	-	-	-
Allowable load (N)	3087	3087/3920	3087	3920	4410	5586	2352
Representative model	HBLFSD8	HBLFTD8	HBLTD8	HBLUD8	HBLTDW8	HBLUDW8	HBLSD8
Features	L-shaped and cross connections are possible. Positioning is easy thanks to the protrusions.	Protrusions make positioning easy.	This is an extruded 90 degree Brackets with an aesthetically pleasing structure that is resistant to dust accumulation.	It provides a stronger connection than HBLTD8.	This type has four mounting holes on one side, allowing for a stronger connection.	It provides a stronger connection than the HBLTDW8.	This is effective for saving space during installation. Hole positions can be changed with additional machining.
