6 Series Aluminum Frame Triangle Bracket - 8mm Slot, 1 Slot

Brand :

MISUMI

Caution

Product Description

An extruded bracket with 2 mounting holes on 1 side. You can connect the frame more firmly.

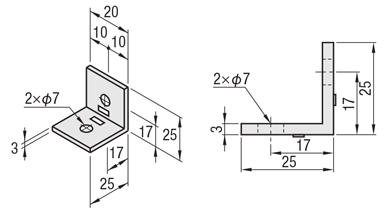

Dimensional Drawing of 90 degree Brackets

HBLDSW6
(no protrusion type)

HBLDSWT6
(protrusion type)

HBLDSWT6

6 Series (8mm Groove Width) - For Single Groove - Triangle Bracket: Related Images

[M] 90 degree Brackets Material: A6N01SS-T5 [S] Surface treatment: Anodized

Specification Table of 90 degree Brackets

90 degree Brackets Model

HBLDSW6

・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

[ ! ]Bolts and nuts are not included with the 90 degree Brackets.
Please check the table below for compatible bolts and nuts.
If you would like to purchase a bolt and nut set, please select it from the "Accessories" filter.
For detailed specifications, please check the individual product links under "Applicable bolt and nut set" (can be purchased individually).

90 degree Brackets Model	Mass (g)	Compatible bolts and T-nuts				Allowable load (N)
Type		bolt	Quantity	T-nut	Quantity
HBLDSW6	100	CBM6-12	4	HNTT6-6	4	1764
HBLDSWT6	110

Additional Work of 90 degree Brackets

90 degree Brackets Model	−	(SET・SST・SEU・SSU・SEP・SSP・SEC)
HBLDSW6	−	SET

Alterations

Code

Spec.

Applicable 90 degree Brackets

Applicable
bolts and nuts
included

SET
SST
(Stainless steel)
SEU
(Pre-assembly spring nuts)
SSU
(Pre-assembly spring nuts)
(Stainless steel)
SEP
(Post-assembly spring nuts)
SSP
(Post-assembly spring nuts)
(Stainless steel)
SEC
(Washer assembled bolts and nuts)

The set includes the applicable bolts and nuts for attaching the 90 degree Brackets to the frame.
(Added to the bracket price)

(Example) When specifying HBLDSW6

	bolt		nut
Code	Model	Quantity	Model	Quantity
SET	CBM6-12	4	HNTT6-6	4
SST	SCB6-12		HNTTSN6-6
SEU	CBM6-12		HNTU6-6
SSU	SCB6-12		SHNTU6-6
SEP	CBM6-12		HNTP6-6
SSP	SCB6-12		SHNTP6-6

[ ! ]If you specify a product other than HBLDSW6, please check the corresponding compatible bolts and nuts.

HBLUS6

HBLUSB6

HBLTH6

HBLTF6

HBLTSW6

HBLDSW6

HBLDSWT6

HBLTS6-5L

HBLTS6-5R

[ ! ]The bolts for the black anodized 90 degree Brackets are HCBMTB (black trivalent chromate).[
! ]When specifying -SET, -SEU, or -SEP with a 90 degree Brackets other than the black anodized bracket, the included bolts are not RoHS compliant.

Additional Work Details of 90 degree Brackets

■Applicable bolt and nut set details (can be purchased separately)

Additional machining model	bolt		nut
Additional machining model	Model	90 degree Brackets Material	type	Model	Material	Stopper
SET	CBM6-12	iron	First in, first out	HNTT6-6	iron	none
SST	SCB6-12	stainless	First in, first out	HNTTSN6-6	stainless	none
SEU	CBM6-12	iron	First in, first out	HNTU6-6	iron	Yes
SSU	SCB6-12	stainless	First in, first out	SHNTU6-6	stainless	Yes
SEP	CBM6-12	iron	Later insertion	HNTP6-6	iron	Yes
SSP	SCB6-12	stainless	Later insertion	SHNTP6-6	stainless	Yes

How to Use of 90 degree Brackets

This is an extruded 90 degree Brackets with two mounting holes on one side, allowing for a stronger connection to the frame.

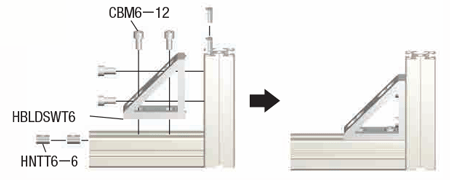

■Example of using HBLDSWT6

Similar Products of 90 degree Brackets

■6 Series (groove width 8mm) - For single-row grooves - Extrusion type 90 degree Brackets

Product name	Thick bracket/ triangle 90 degree Brackets	Thick Bracket	Extra thick 90 degree Brackets	Eccentric bracket	Unequal Bracket	Different size frame connection bracket	Thin 90 degree Brackets
Product Photos
Features	This type has two mounting holes on one side. It uses four bolts, allowing for a more secure connection to the frame.	This type is made of the same material as the aluminum frame and has been anodized. It is effective when you want to unify the appearance with the frame.	The number of bolts is the same as that of the thick 90 degree Brackets, allowing for a stronger connection.	The hole positions are eccentric, so when attaching plates to the sides, 3mm/5mm thick plates can be installed in line with the frame surface.	The length and width are unequal, allowing installation in narrow spaces.	The mounting holes are staggered. There are types that can connect to 20mm square and 30mm square frames, and 40mm square, 45mm square and 30mm square frames.	This 90 degree Brackets does not protrude from the frame when cross-connecting, making it suitable for use in tight spaces.
Allowable load	1764	1176	1176	1176	1470	-	980/1568/2352
Representative model	HBLTSW6 (thick type)	HBLTS6	HBLUS6	HBLTH6	HBLTF6	HBLTS6-5L	HBLSS6
Representative model	This product (triangle)	HBKTST6 (right-angle processing type)	HBKUS6 (right-angle processing type)	HBLTH6	HBLTF6	HBLTS8-6L	HBLSP6 (with protrusion)

■Difference between extrusion type 90 degree Brackets and protrusion type brackets

[This product] Extrusion type 90 degree Brackets	· The extrusion bracket is made of A6N01SS-T5 aluminum extrusion material. The surface is anodized. · Effective when you want to unify the appearance with the frame. It is designed to prevent dust accumulation. · It is stronger than 90 degree Brackets with protrusions, making it ideal for areas where strength is required.
Protruding 90 degree Brackets	· Protrusion brackets are molded from ADC12 material. They are generally not anodized and are less expensive than extrusion brackets of the same size. · The protrusions act as a rotation stopper during fastening work, making them easier to work with. · There are various types of 90 degree Brackets with additional functions available.

Technical Information of 90 degree Brackets

■ Perpendicularity

Please check the squareness tolerance table for the bracket's squareness .

■ 90 degree Brackets allowable load concept

6 Series (8mm Groove Width) - For Single Groove - Triangle Bracket Related Image 1_Technical Information

As shown in the diagram on the left, two frames are set up, a frame is placed between them, and two brackets are attached underneath, showing the allowable load per unit.
The allowable load here refers to the load that the 90 degree Brackets can maintain in position (without breaking or slipping) when all mounting holes on the bracket are fixed with bolts and a load is applied.
