Low Profile Bracket - 6 Series, 8mm Groove
Brand :
MISUMI
Caution
- Download Free! >> Economy Series Catalog (TH-EN-FY25) CLICK here
Product Description
[Features]
• Low-profile extrusion bracket for 6 Series frames with an 8mm groove.
• Thin shape helps save installation space.
[Use]
• Select for compact fastening of aluminum extrusion frame sides.

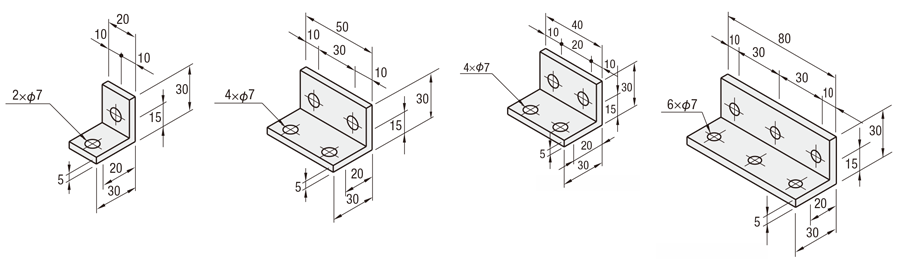

HBLSS6
HBLSSB6
(Black Anodize)
HBLSD6
HBLSDB6
(Black Anodize)
For 50 Square
HBLSD6－50
HBLST6
[ ! ] For HBLSD6, the hole position can be changed as the Alteration.
| Type | [M] Material | [S] Surface Treatment |
| HBLS□6 | A6N01SS−T5 | Anodize |
| HBLS□B6 | Black Anodize | |
| HBLSD6−50 | Anodize |
