Eccentric Bracket - 6 Series, 8mm Slot, 1 Slot

Brand :

MISUMI

Caution

Product Description

The hole position is eccentric and can be used for both 3 mm and 5 mm thick panels.

Dimensional Drawing of 90 degree Brackets

HBLTH6

6 Series (groove width 8 mm) - For single row groove - Extrusion eccentric bracket: Related images

[M] 90 degree Brackets Material: A6N01SS-T5 [S] Surface treatment: Anodized

Specification Table of 90 degree Brackets

90 degree Brackets Model

HBLTH6

・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.

90 degree Brackets Model	Mass (g)	Suitable bolts and T-nuts				Allowable load (N)
90 degree Brackets Type	Mass (g)	bolt	Quantity	T-Nut	Quantity	Allowable load (N)
HBLTH6	44	CBM6-15	2	HNTT6-6	2	1176

Additional Processing of 90 degree Brackets

90 degree Brackets Model	−	(C・SET・SST・SEU・SSU・SEP・SSP・SEC)
HBLTH6 HBLTH6	− −	SET C−SET

Alterations	Code	Spec.	Applicable 90 degree Brackets
Additional cover mounting holes	C	The 90 degree Brackets is tapped for mounting the cover (M5 on both sides) (Mounting screws HCBM) .	HBLUS6
			HBLTH6
			HBLTF6
			HBLTSW6
			HBLTS6-5L
			HBLTS6-5R

Alterations

Code

Spec.

Applicable 90 degree Brackets

Applicable bolts
and nuts included

SET
SST
(stainless steel)
SEU
(pre-assembly
spring nut)
SSU
(pre-assembly
spring nut
stainless steel)
SEP
(post-assembly
spring nut)
SSP
(post-assembly
spring nut
stainless steel)
SEC
(
bolt and nut with washer)

The applicable bolts and nuts for attaching the 90 degree Brackets to the frame are included in the set.
(Added to the bracket price)
(Example) When HBLTH6 is specified

	bolt		nut
Code	Model	Quantity	Model	Quantity
SET	CBM6-15	2	HNTT6-6	2
SST	SCB6-15		HNTTSN6-6
SEU	CBM6-15		HNTU6-6
SSU	SCB6-15		SHNTU6-6
SEP	CBM6-15		HNTP6-6
SSP	SCB6-15		SHNTP6-6
SEC	HCBST6-20		HNTT6-6

HBLUS6

HBLUSB6

HBLTH6

HBLTF6

HBLTSW6

HBLDSW6

HBLDSWT6

HBLTS6-5L

HBLTS6-5R

[ ! ]The bolts for the black anodized 90 degree Brackets are HCBMTB (black trivalent chromate).
! ]When specifying -SET, -SEU, or -SEP with a 90 degree Brackets other than the black anodized bracket, the included bolts are not RoHS compliant.

Additional Processing Details of 90 degree Brackets

■ Hole processing for cover installation (-C)

You can add M5 tapped holes on both sides.
Alteration model example: HBLTH6-C

■Details of applicable bolt and nut sets

Additional processing model	bolt		nut
Additional processing model	90 degree Brackets Model	Material	type	Model	Material	Stopper
SET	CBM6-15	iron	First in	HNTT6-6	iron	none
SST	SCB6-15	stainless	First in	HNTTSN6-6	stainless	none
SEU	CBM6-15	iron	First in	HNTU6-6	iron	Yes
SSU	SCB6-15	stainless	First in	SHNTU6-6	stainless	Yes
SEP	CBM6-15	iron	Later insertion	HNTP6-6	iron	Yes
SSP	SCB6-15	stainless	Later insertion	SHNTP6-6	stainless	Yes
SEC	HCBST6-20	Iron (with washer)	First in	HNTT6-6	iron	none

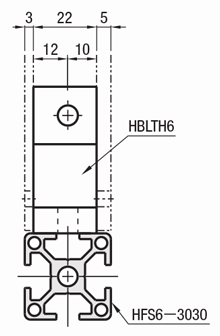

How to Use of 90 degree Brackets

[ ! ]When a cover plate with a thickness of 3 mm or 5 mm is installed, it
can be aligned with the frame surface.

Similar Products of 90 degree Brackets

■6 Series (groove width 8 mm) - For single row groove - Extrusion type 90 degree Brackets

Product name	Eccentric bracket	Thick bracket	Extra thick bracket	Thick 90 degree Brackets/ triangle bracket	Unequal Side Bracket	Different size frame connection bracket	Thin 90 degree Brackets
Product Photos
Features	The hole positions are off-center, so when attaching a plate to the side, 3mm/5mm thick plates can be installed by aligning them with the frame surface.	This type is made of the same material as the aluminum frame and has been anodized. It is effective when you want to unify the appearance with the frame.	The thick 90 degree Brackets and bolts are the same number, allowing for a stronger connection.	This type has two mounting holes on one side. It uses four bolts, so the frame can be connected more firmly.	The length and width are unequal, allowing it to be installed in narrow spaces.	The mounting holes are staggered. There are types that can connect 20mm and 30mm, 40mm, 45mm and 30mm frames.	This 90 degree Brackets does not protrude from the frame when cross-connecting, making it possible to use in tight spaces.
Permissible load	1176	1176	1176	1764	1470	-	980/1568/2352
Representative Model	This product	HBLTS6	HBLUS6	HBLTSW6 (thick type)	HBLTF6	HBLTS6-5L	HBLSS6
Representative Model	This product	HBKTST6 (Right angle processing type)	HBKUS6 (Right-angle processing type)	HBLDSWT6 (Triangle)	HBLTF6	HBLTS8-6L	HBLSP6 (with protrusion)

■Difference between extrusion type 90 degree Brackets and protrusion brackets

[This product] Extrusion type 90 degree Brackets	· The material of the extrusion 90 degree Brackets is A6N01SS-T5, and it is made by extruding aluminum. The surface is anodized. · It is effective when you want to unify the appearance with the frame. It is structured to prevent dust accumulation. · It is stronger than a 90 degree Brackets with protrusions, so it is ideal for places where strength is required.
90 degree Brackets with protrusion	・The protrusion bracket is a bracket made of ADC12 material using a mold. It is generally not anodized and is less expensive than an extrusion type 90 degree Brackets of the same size. ・The protrusion acts as a rotation stopper during fastening work, making it easy to work with. ・There are various types of 90 degree Brackets with additional functions.

Technical Information of 90 degree Brackets

■ Perpendicularity

■ 90 degree Brackets allowable load concept

6 Series (groove width 8 mm) - For single row groove - Extrusion eccentric 90 degree Brackets Related image 1_Technical information

As shown in the left figure, two frames are set up, a frame is placed between them, and two 90 degree Brackets are attached underneath, and the allowable load per unit is shown.
The allowable load here indicates the load at which the 90 degree Brackets can maintain its position (without breaking or slipping) when all mounting holes on the bracket are fixed with bolts and a load is applied.
