Ultra Thick Bracket - 5 Series, 6mm Slot, 1 Slot

Brand :

MISUMI

Caution

Product Description

Compared to HBLTS5, the number of bolts is the same and it can be connected firmly.

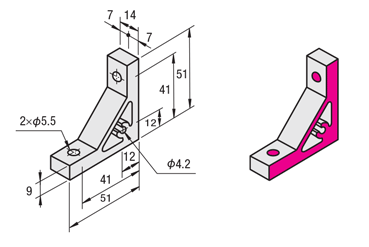

Dimensional Drawing of 90 degree Brackets

NBLUS5
HBLUS5
5 Series (groove width 6 mm) - For single row groove - Extruded extra thick bracket: Related images

[ ! ]NBLUS5 does not have anodizing on both sides or bolt holes.

[ ! ]90 degree Brackets, The contact surface of the aluminum frame is milled to guarantee the squareness.
[ ! ]For the squareness of the bracket, please refer tothe squareness tolerance table .
[ ! ]NBLUS5 is not milled. The squareness tolerance is ±1°.

Type	[M] Material	[S] Surface Treatment
NBLUS5	A6063S-T5	Anodized[ ! ]
HBLUS5	A6N01SS-T5	Anodizing

Specification Table of 90 degree Brackets

Model 90 degree Brackets

NBLUS5

・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.

Model	Mass (g)	Suitable bolts and T-nuts				Permissible load
		bolt	Quantity	T-Nut	Quantity	(N)
NBLUS5	31	CBM5-14	2	HNTT5-5	2	833
HBLUS5

Additional Processing of 90 degree Brackets

Model 90 degree Brackets	−	(C・SET・SST・SEU・SSU・SEP・SSP・SEC)
NBLUS5	−	SET
NBLUS5	−	C-SET

Alterations 90 degree Brackets	Code	Spec.	Applicable bracket
			NBLTS5
Additional cover mounting holes	C	The bracket is tapped for mounting the cover (M5 on both sides) (Mounting screws are HCBM) .	HBLTS5
			HBLTS5−4
			CHBLTS5
			HBLTV5
			HBLTVB5
			HBKTS5
			NBLUS5
			HBLUS5
			HBKUS5
			HBLTH5
			HBLTHB5
			HBLTSW5
			HBLTVW5
			HBLTF5

Alterations

Code

Spec.

Applicable bracket

Applicable bolts
and nuts included

SET
SST
(stainless steel)
SEU
(pre-assembly
spring nut)
SSU
(pre-assembly
spring nut
stainless steel)
SEP
(post-assembly
spring nut)
SSP
(post-assembly
spring nut
stainless steel)
SEC
(
bolt and
nut with washer)

The applicable bolts and nuts for attaching the bracket to the frame are included in the set.
(Added to the bracket price)

(Example) When specifying NBLUS5

	bolt		nut
Code	Model	Quantity	Model	Quantity
SET	CBM5-14	2	HNTT5-5	2
SST	SCB5-14		HNTTBS5-5
SEU	CBM5-14		HNTU5-5
SSU	SCB5-14		SHNTU5-5
SEP	CBM5-14		HNTP5-5
SSP	SCB5-14		SHNTP5-5
SEC	HCBST5-16		HNTT5-5

NBLTS5

HBLTS5

HBLTS5−4

HBLTSB5

CHBLTS5

HBLTV5

HBLTVB5

HBKTST5

HBKTS5

HBKTSB5

NBLUS5

HBLUS5

HBKUS5

HBKUSB5

HBLTH5

HBLTHB5

HBLTSW5

HBLTVW5

HBLTF5

[ ! ]The bolts for the black anodized bracket are HCBMTB (black trivalent chromate).[
! ]When specifying -SET, -SEU, or -SEP with a bracket other than the black anodized bracket, the included bolts are not RoHS compliant.

Additional Processing Details of 90 degree Brackets

■ Hole processing for cover installation (-C) of 90 degree Brackets

You can add M5 tapped holes on both sides.
Example of additional machining model: HBLUS5-C

■ Details 90 degree Brackets of applicable bolt and nut sets

Additional processing model	bolt		nut
Additional processing model	Model	Material	type	Model	Material	Stopper
SET	CBM5-14	iron	First in	HNTT5-5	iron	none
SST	SCB5-14	stainless	First in	HNTTBS5-5	stainless	none
SEU	CBM5-14	iron	First in	HNTU5-5	iron	Yes
SSU	SCB5-14	stainless	First in	SHNTU5-5	stainless	Yes
SEP	CBM5-14	iron	Later insertion	HNTP5-5	iron	Yes
SSP	SCB5-14	stainless	Later insertion	SHNTP5-5	stainless	Yes
SEC	HCBST5-16	Iron (with washer)	First in	HNTT5-5	iron	none

How to Use of 90 degree Brackets

90 degree Brackets, This product is an extremely thick extrusion bracket. It has the same number of bolts as
HBLTS5, allowing for a stronger connection.

■ Example of connecting frames: Connection using thick 90 degree Brackets
5 Series (groove width 6 mm) - For single row groove - Extrusion thick bracket: Related images

5 Series (groove width 6 mm) - For single row groove - Extrusion thick bracket: Related images

Similar Products of 90 degree Brackets

■ 5 Series - 1-row groove - Extrusion type 90 degree Brackets

Product name	Extra thick bracket	Thick bracket	Thick bracket (2x holes)	Eccentric bracket	Different size frame connection bracket	Unequal Side Bracket	Thin bracket
Product Photos
Features 90 degree Brackets	The thick bracket and bolts are the same number, allowing for a stronger connection.	This type is made of the same material as the aluminum frame and has been anodized. It is effective when you want to unify the appearance with the frame. It is available for 25mm square frames.	This type has two mounting holes on one surface. It uses four bolts, so the frame can be connected more firmly. It is available for 25mm square frames.	The hole positions are off-center so when attaching plates to the side, 5mm and 3mm thick plates can be installed flush with the frame surface.	The mounting holes are staggered. This type can connect 20mm and 30mm square frames.	The length and width are unequal, allowing it to be installed in narrow spaces.	This bracket does not protrude from the frame when cross-connecting, making it possible to use in tight spaces.
Permissible load	833	833	1176	833	-	1004	686
Representative Model	This product	HBLTS5	HBLTSW5	HBLTH5	HBLTS6-5L	HBLTF5	HBLST5
Representative Model	HBKUS5 (right angle processing type)	HBKTS5 (Right angle processing type)	HBLTSW5	HBLTH5	HBLTS6-5L	HBLTF5	HBLSP5 (with protrusion)

■ Difference between extrusion type brackets and protrusion brackets

[This product] Extrusion type bracket	· 90 degree Brackets, The material of the extrusion bracket is A6N01SS-T5, and it is made by extruding aluminum. The surface is anodized. · It is effective when you want to unify the appearance with the frame. It is structured to prevent dust accumulation. · It is stronger than a bracket with protrusions, so it is ideal for places where strength is required.
Bracket with protrusion	・The protrusion bracket is a bracket made of ADC12 material using a mold. It is generally not anodized and is less expensive than an extrusion type bracket of the same size. ・The protrusion acts as a rotation stopper during fastening work, making it easy to work with. ・There are various types of brackets with additional functions.

Technical Information of 90 degree Brackets

■ Perpendicularity of 90 degree Brackets

Please checkthe squareness tolerance tablefor the bracket's squareness .

■ Bracket allowable load concept

5 Series (groove width 6 mm) - For single row groove - Extruded extra thick bracket Related image 1_Technical information

90 degree Brackets, As shown in the left figure, two frames are set up, a frame is placed between them, and two brackets are attached underneath, and the allowable load per unit is shown.
90 degree Brackets, The allowable load here indicates the load at which the bracket can maintain its position (without breaking or slipping) when all mounting holes on the bracket are fixed with bolts and a load is applied.

■ Mechanical properties of aluminum frame material (JIS standard reference)

Material (JIS symbol)	A6063S-T5	A6N01SS-T5
Tensile strength (N/^mm2)	Over 155	245 and above
Strength (N/^mm2)	Over 110	Over 205
Modulus of elasticity (N/^mm2)	69972	69972
Brinell hardness (HB)	88	88
Surface Treatment	Anodizing 9μm or more	Anodizing 9μm or more
