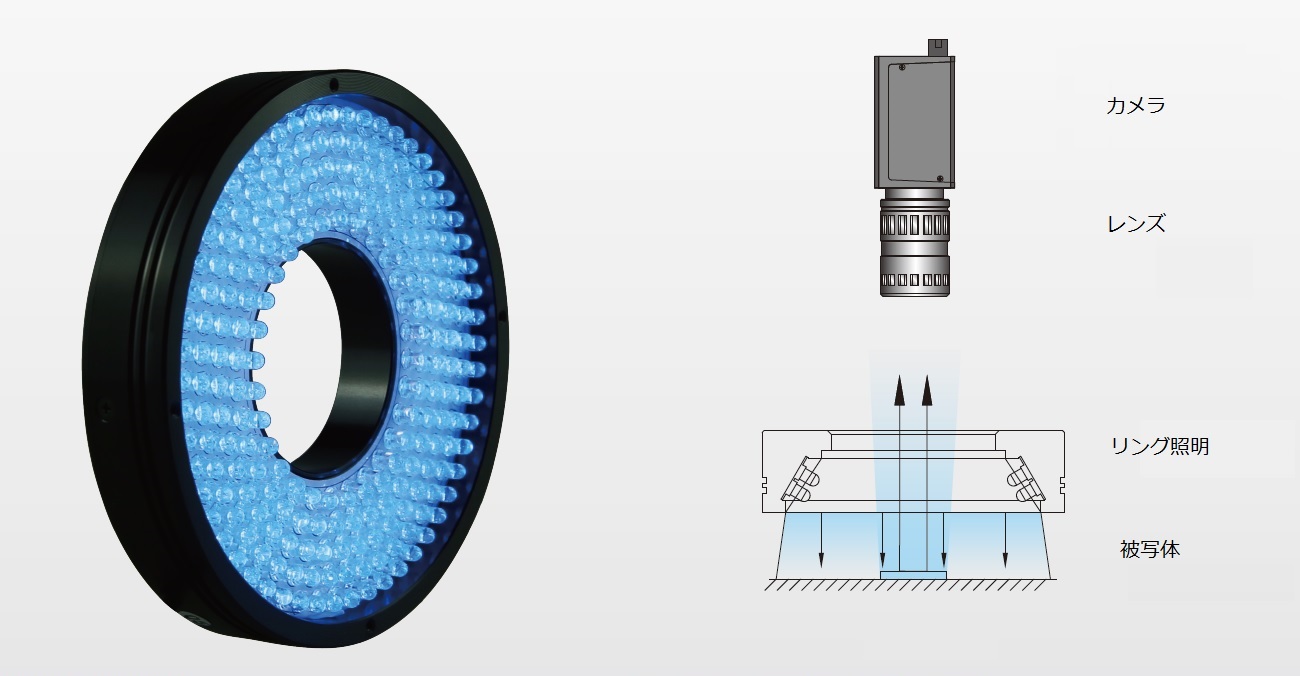

LED Ring Light Compliant With Uniform Light Emission and Testings (White/Red/Blue)

Brand :

CST

Caution

Product Description

CST is one of the leading manufacturer of LED lighting for image processing equipment in China. The manufacturer has been providing stable quality products for a long time.

1. High density LED array, strong illuminance

2. Space saving design

3. Increased stability with original heat dissipation structure

4. Equal emission

Applications:

1. External appearance and printing inspection of IC semiconductors, etc.

2. PCB circuit board inspection, plastic container inspection

3. Product packaging external appearance, label inspection

4. Tablet breakage, defect inspection

5. Inspection of electronic components

6. Microscope illumination, regular external appearance inspection

Product series from the same manufacturer:

Shadowless ring lights

Name	Part number	Starting voltage	Rated voltage	Rated current A	Power Consumption W	Color temperature K	Illuminance (Klux) MW/CM2	Weight g
Ring lights	CST-RS3475-W	15.5 V±1 V	maximum 24.5 V	0.063 to 0.077	1.5 to 2	6000-7500	150 to 220	43.4
Ring lights	CST-RS3475-R	15.5 V±1 V	maximum 24.5 V	0.038 to 0.047	0.9 to 1.2	620-630	50 to 90	43.4
Ring lights	CST-RS3475-B	15.5 V±1 V	maximum 24.5 V	0.063 to 0.077	1.5 to 2	460-475	35 to 60	43.4
Ring lights	CST-RS4265-W	15.5 V±1 V	maximum 24.5 V	0.076 to 0.093	1.8 to 2.4	6000-7500	150 to 220	43.4
Ring lights	CST-RS4265-R	15.5 V±1 V	maximum 24.5 V	0.051 to 0.062	1.2 to 1.6	620-630	50 to 90	43.4
Ring lights	CST-RS4265-B	15.5 V±1 V	maximum 24.5 V	0.076 to 0.093	1.8 to 2.4	460-475	35 to 60	43.4
Ring lights	CST-RS5260-W	15.5 V±1 V	maximum 24.5 V	0.115 to 0.14	2.8 to 3.6	6000-7500	150 to 220	67.7
Ring lights	CST-RS5260-R	15.5 V±1 V	maximum 24.5 V	0.076 to 0.093	1.8 to 2.4	620-630	50 to 90	67.7
Ring lights	CST-RS5260-B	15.5 V±1 V	maximum 24.5 V	0.115 to 0.14	2.8 to 3.6	460-475	35 to 60	67.7
Ring lights	CST-RS5390-W	15.5 V±1 V	maximum 24.5 V	0.101 to 0.124	2.5 to 3.2	6000-7500	160 to 230	69.1
Ring lights	CST-RS5390-R	15.5 V±1 V	maximum 24.5 V	0.076 to 0.093	1.8 to 2.4	620-630	50 to 90	69.1
Ring lights	CST-RS5390-B	15.5 V±1 V	maximum 24.5 V	0.101 to 0.124	2.5 to 3.2	460-475	35 to 60	69.1
Ring lights	CST-RS7430-W	15.5 V±1 V	maximum 24.5 V	0.153 to 0.187	3.7 to 4.8	6000-7500	150 to 220	122.8
Ring lights	CST-RS7430-R	15.5 V±1 V	maximum 24.5 V	0.101 to 0.124	2.5 to 3.2	620-630	50 to 90	122.8
Ring lights	CST-RS7430-B	15.5 V±1 V	maximum 24.5 V	0.153 to 0.187	3.7 to 4.8	460-475	35 to 60	122.8
Ring lights	CST-RS7460-W	15.5 V±1 V	maximum 24.5 V	0.229 to 0.28	5.5 to 7.1	6000-7500	160 to 230	124
Ring lights	CST-RS7460-R	15.5 V±1 V	maximum 24.5 V	0.153 to 0.187	3.7 to 4.8	620-630	50 to 90	124
Ring lights	CST-RS7460-B	15.5 V±1 V	maximum 24.5 V	0.229 to 0.28	5.5 to 7.1	460-475	35 to 60	124
Ring lights	CST-RS7390-W	15.5 V±1 V	maximum 24.5 V	0.229 to 0.28	5.5 to 7.1	6000-7500	180 to 260	120
Ring lights	CST-RS7390-R	15.5 V±1 V	maximum 24.5 V	0.153 to 0.187	3.5 to 4.6	620-630	50 to 90	120
Ring lights	CST-RS7390-B	15.5 V±1 V	maximum 24.5 V	0.229 to 0.28	5.5 to 7.1	460-475	35 to 60	120
Ring lights	CST-RS9030-W	15.5 V±1 V	maximum 24.5 V	0.305 to 0.373	7.3 to 9.5	6000-7500	160 to 230	172.4
Ring lights	CST-RS9030-R	15.5 V±1 V	maximum 24.5 V	0.204 to 0.249	4.8 to 6.3	620-630	80 to 130	172.4
Ring lights	CST-RS9030-B	15.5 V±1 V	maximum 24.5 V	0.305 to 0.373	7.3 to 9.5	460-475	35 to 60	172.4
Ring lights	CST-RS9070-W	15.5 V±1 V	maximum 24.5 V	0.381 to 0.466	9.2 to 12	6000-7500	160 to 230	170.8
Ring lights	CST-RS9070-R	15.5 V±1 V	maximum 24.5 V	0.229 to 0.28	5.5 to 7.1	620-630	50 to 90	170.8
Ring lights	CST-RS9070-B	15.5 V±1 V	maximum 24.5 V	0.382 to 0.467	9.2 to 12	460-475	35 to 60	170.8
Ring lights	CST-RS10090-W	15.5 V±1 V	maximum 24.5 V	0.445 to 0.544	10.8 to 14	6000-7500	160 to 230	244.1
Ring lights	CST-RS10090-R	15.5 V±1 V	maximum 24.5 V	0.268 to 0.327	6.4 to 8.3	620-630	50 to 90	244.1
Ring lights	CST-RS10090-B	15.5 V±1 V	maximum 24.5 V	0.445 to 0.544	10.8 to 14	460-475	35 to 60	244.1
Ring lights	CST-RS12070-W	15.5 V±1 V	maximum 24.5 V	0.534 to 0.653	13.1 to 17	6000-7500	160 to 230	306.8
Ring lights	CST-RS12070-R	15.5 V±1 V	maximum 24.5 V	0.357 to 0.436	8.5 to 11	620-630	50 to 90	306.8
Ring lights	CST-RS12070-B	15.5 V±1 V	maximum 24.5 V	0.534 to 0.653	13.1 to 17	460-475	35 to 60	306.8
