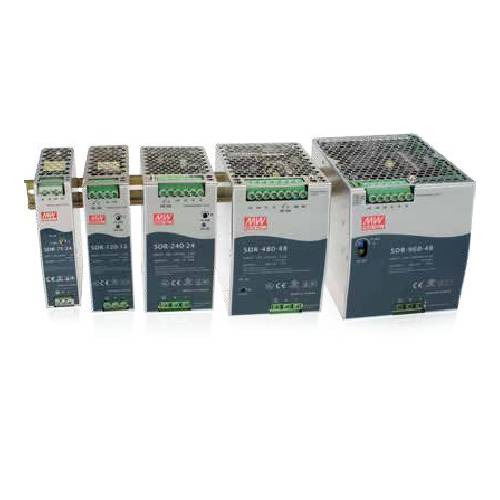

Switching Power Supply 75~960W High Performance DIN Rail Power, SDR Series)
Brand :
MEAN WELL
Caution
Product Description
DIN rail type ideal for PLC in panels and control equipment.
[Features]
· Small type with the height of 90 mm and the depth of 100 mm (10 to 100 W).
· Applied to 35 mm DIN rails.
· Screw type terminals to make connections easy.
· Resin cases (10 to 100 W) and metal cases (120 to 240 W).
Features
• Universal AC input / F ull range(SDR-75~480), 180~264 V AC input only (SDR -960)
• DIN Rail：TS-35/7.5 or TS-35/15
• High efficiency up to 94%
• Cooling by free air convection
• Protections: Short Circuit / Overload / Over Voltage / Over Temp.
• 130%~150% peak load capability
• DC output v oltage adjustable
• Current sharing (7+1 f or SDR-480P, 3+1 f or SDR-960)
• Built-in DC OK r elay contact（Except for SDR-75）
• Built-in constant current limiting circuit
• Comply with SEMI-F47
• EN61000-6-2（EN50082-2）industrial immunity level
• UL508(industrial control equipment) approved
• DIN Rail：TS-35/7.5 or TS-35/15
• High efficiency up to 94%
• Cooling by free air convection
• Protections: Short Circuit / Overload / Over Voltage / Over Temp.
• 130%~150% peak load capability
• DC output v oltage adjustable
• Current sharing (7+1 f or SDR-480P, 3+1 f or SDR-960)
• Built-in DC OK r elay contact（Except for SDR-75）
• Built-in constant current limiting circuit
• Comply with SEMI-F47
• EN61000-6-2（EN50082-2）industrial immunity level
• UL508(industrial control equipment) approved
