Small Gear Motor 0.1-3.7KW

Brand :

MISUMI

Caution

Product Description

Small Gear Motor 0.1-3.7KW launched as MISUMI Economy series
【Outline drawings】
Detailed outline drawings
Detailed wiring diagrams
Detailed technical data
【Usage】
- Geared motors used in various industrial fields, from general drives such as industrial automation equipment, food packaging machines, and conveyors to low-speed, high-torque drives.
【Product Features】
- Provides stable torque output and long service life with high-precision helical gears and a low-noise structure,
　and can be widely applied to various equipment with multiple gear ratios and power options.
- Compatible with both single-phase and three-phase power, a general-purpose induction geared motor that meets global standards.

Outline Drawing

◇ EA-HN (Horizonal-Leg Mount)

◇ EA-VN (Verical-Flange Mount)

Specification Table

～ Please select the model and parameters according to the options below before placing your order.

Part Number
Type Motor and Gearbox Spec Output[W]

－

Gear Ratio

－

Terminal Box
Position

－

Lead-out Shaft Direction

－

Mounting Method

－

Option
Brake / Fan

EA-HNS100

－

EA-VNEZ200

－

EA-VNEZ200

－

B-F3

○ Gear Motor

Part Number			Output Power [W]	Gear ratio	Terminal box direction from output shaft	Lead direction from output shaft	Installation method	Option
Type	Motor and Gearbox Spec		Output Power [W]	Gear ratio	Terminal box direction from output shaft	Lead direction from output shaft	Installation method	Brake Unit	Cooling Fan
〈Horizonal-Leg Mount〉 EA-HN 〈Vertical-Flange Mount〉 EA-VN	S 3-Phase 220-240/380-415V, 50/60Hz C Single Phase 220V, 50/60Hz E Single Phase 110V, 50/60Hz	None：Standard Z：Light duty	100	3~1800	G1：LEFT G2：RIGHT G3：TOP G4：DOWN	T：TOP D：DOWN F：FORWARD B：BACK L：LEFT R：RIGHT	Q1 Q2 Q3 Q4 Q5 Q6	B：Brake Unit	F2：220V axial Fan F3：380V axial Fan
			200
			400
			750
			1500
			2200
			3700

Terminal Box Position

EA-HN (Leg Mount) EA-VN (Flange Mount)
Lead-out Shaft Direction

※ Terminal Box Position and Lead-out Shaft Direction must be selected to be compatible.
EX) If the Terminal Box Position is selected G1, the Lead-out Shaft Direction can only select one of LD, LT, LF, LB.

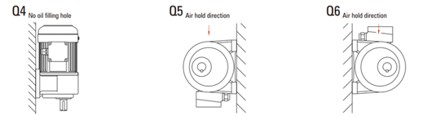

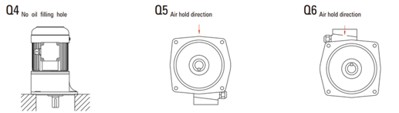

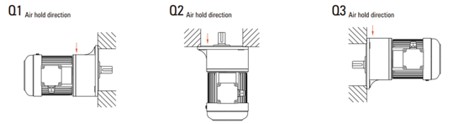

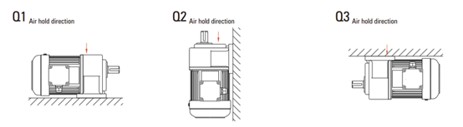

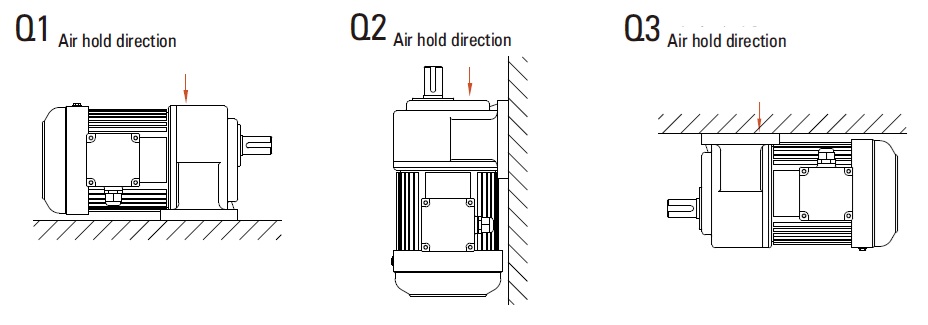

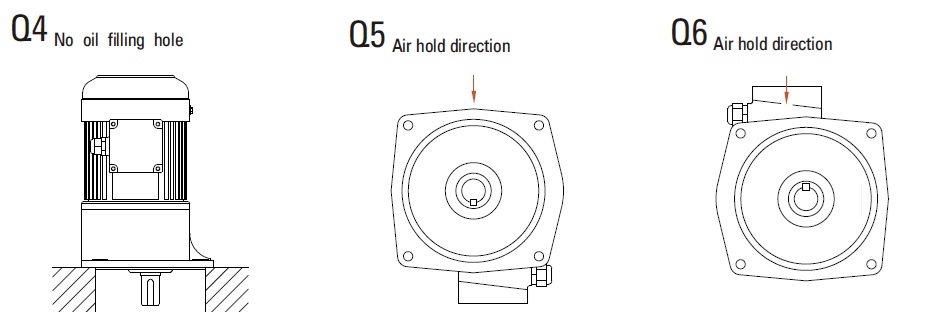

Mounting Method

EA-HN
EA-VN

Specification Overview

■ Gearbox Standard Type

Voltage	Power	Output Shaft Diameter	Ratio	A	D	E	F	G	H	J	K	L	M	X	Y	Z	S	P	Q	W	T


1-Phase (Single-phase)	100W	18	3-50	250	40(50)	110(140)	135(120)	65(120)	9	16	50(40)	10.5(12)	133	138(/)	88.5(2)	105	18	30	27	5	20.2
		22	60-200	280	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	133	152(/)	97.5(3)	105	22	40	35	7	25
		28	250-1800	375	90(170)	140(220)	178(205)	120(195)	12	39	68(58)	17(13)	133	178(/)	116(3)	120	28	45	40	7	31.1
	200W	18	3-10	285	40(50)	110(140)	135(120)	65(120)	9	16	50(40)	10.5(12)	133	138(/)	88.5(2)	105	18	30	27	5	20.2
		22	15-90	315	65/148	130(185)	158(175)	90(165	12	17.5	60(48)	13(12)	133	152(/)	97.5(3)	105	22	40	35	7	25
		28	100-200	350	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	133	178(/)	116(3)	105	28	45	40	7	31.1
		32	250-1800	470	130(185)	170(255)	210(239)	165(216)	13	47.5	70(66.5)	18(13)	133	216(/)	138.5(3)	120	32	55	50	10	35.5
	400W	22	3-10	360	65/148	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	167	152(/)	97.5(3)	135	22	40	35	7	25
		28	15-90	390	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	167	178(/)	116(3)	135	28	45	40	7	31.1
		32	100-200	430	130(185)	170(255)	210(239)	165(216)	13	30	70(66.5)	18(13)	167	216(/)	138.5(3)	135	32	55	50	10	35.5
		40	250-1800	580	150(230)	210(310)	265(277)	203(255)	15	59	83	20(18)	167	255(/)	160(5)	135	40	65	60	10	43.5
	750W	28	3-25	410	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	167	178(/)	116(3)	135	28	45	40	7	31.1
		32	30-120	450	130(185)	170(255)	210(239)	165(216)	13	30	70(66.5)	18(13)	167	216(/)	138.5(3)	135	32	55	50	10	35.5
		40	125-200	500	150(230)	210(310)	265(277)	203(255)	15	36	83	20(18)	167	255(/)	160(5)	135	40	65	60	10	43.5
	1500W	32	3-30	452	130(185)	170(255)	210(239)	165(216)	13	30	70(66.5)	18(13)	192	216(/)	138.5(3)	139	32	55	50	10	35.5
		40	40-100	503	150(230)	210(310)	265(277)	203(255)	15	36	83	20(18)	192	255(/)	160(5)	139	40	65	60	10	43.5
		50	110-180	560	170(280)	265(390)	335(367)	230(342)	18	51	97(92)	25	192	312(/)	200(5)	146	50	80	75	14	54
3-Phase (Three-phase)	100W	18	3-50	254	40(50)	110(140)	135(120)	65(120)	9	16	50(39.5)	10(12)	130.5	143(/)	88.5(2)	100	18	30	27	5	20.2
		22	60-200	281	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	130.5	161(/)	97.5(3)	100	22	40	35	7	25
		28	250-1800	376	90(170)	140(220)	178(205)	120(195)	12	39	68(58)	17(13)	130.5	184(/)	116(3)	100	28	45	40	7	31.1
	200W	18	3-10	279	40(50)	110(140)	135(120)	65(120)	9	16	50(39.5)	10(12)	130.5	143(/)	88.5(2)	100	18	30	27	5	20.2
		22	15-90	306	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	130.5	161(/)	97.5(3)	100	22	40	35	7	25
		28	100-200	339	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	130.5	184(/)	116(3)	100	28	45	40	7	31.1
		32	250-1800	456	130(185)	170(255)	210(239)	165(216)	13	47.5	70(66.5)	18(13)	130.5	216(/)	138.5(3)	100	32	55	50	10	35.5
	400W	22	3-10	320	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	146	168(/)	97.5(3)	114	22	40	35	7	25
		28	15-90	352	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	146	184(/)	116(3)	114	28	45	40	7	31.1
		32	100-200	396	130(185)	170(255)	210(239)	165(216)	13	30	70(66.5)	18(13)	146	216(/)	138.5(3)	114	32	55	50	10	35.5
		40	250-1800	539	150(230)	210(310)	265(277)	203(255)	15	59	83	20(18)	146	255(/)	160(5)	114	40	65	60	10	43.5
	750W	28	3-25	367	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	172	184(/)	116(3)	126	28	45	40	7	31.1
		32	30-120	40	130(185)	170(255)	210(239)	165(216)	13	30	70(66.5)	18(13)	172	216(/)	138.5(3)	126	32	55	50	10	35.5
		40	125-200	455	150(230)	210(310)	265(277)	203(255)	15	36	83	20(18)	172	255(/)	160(5)	126	40	65	60	10	43.5
	1500W	32	3-30	44	130(185)	170(255)	210(239)	165(216)	13	30	70(66.5)	18(13)	192	216(/)	138.5(3)	137	32	55	50	10	35.5
		40	40-100	498	150(230)	210(310)	265(277)	203(255)	15	36	83	20(18)	192	255(/)	160(5)	137	40	65	60	10	43.5
		50	110-180	555	170(280)	265(390)	335(367)	238(342)	18	51	97(92)	25	192	312(/)	200(5)	137	50	80	75	14	54
	2200W	40	3-40	518	150(230)	210(310)	265(277)	203(255)	15	36	83	20(18)	192	255(/)	160(5)	137	40	65	60	10	43.5
	2200W	50	45-100	575	170(280)	265(390)	335(367)	238(342)	18	51	97(92)	25	192	312(/)	200(5)	137	50	80	75	14	54
	3700W	40	3-10	548	150(230)	210(310)	265(277)	203(255)	15	36	83	20(18)	213	255(/)	160(5)	160	40	65	60	10	43.5
	3700W	50	15-60	605	170(280)	265(390)	335(367)	238(342)	18	51	97(92)	25	213	312(/)	200(5)	160	50	80	75	14	54

( ) values indicate the dimensions for the EA-VN (Vertical) type.

■ Light-duty Gearbox Type

Voltage	Power	Output Shaft Diameter	Ratio	A	D	E	F	G	H	J	K	L	M	X	Y	Z	S	P	Q	W	T


1-Phase (Single-phase)	100W	18	60-200	250	40(50)	110(140)	135(120)	65(120)	9	16	50(40)	10.5(12)	133	138(/)	88.5(2)	105	18	30	27	5	20.2
	100W	22	250-1800	345	65(148)	130(185)	158(175)	90(165)	12	33.5	60(48)	13(12)	133	152(/)	97.5(3)	105	22	40	35	7	25
	200W	18	15-90	285	40(50)	110(140)	135(120)	65(120)	9	16	50(40)	10.5(12)	133	138(/)	88.5(2)	105	18	30	27	5	20.2
		22	100-200	315	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	133	152(/)	97.5(3)	105	22	40	35	7	25
		28	250-1800	410	90(170)	140(220)	178(205)	120(195)	12	39	68(58)	17(13)	167	178(/)	116(3)	105	28	45	40	7	31.1
	400W	22	15-90	360	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	167	152(/)	97.5(3)	135	22	40	35	7	25
		28	100-200	390	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	167	178(/)	116(3)	135	28	45	40	7	31.1
		32	250-1800	510	130(185)	170(255)	210(239)	165(216)	13	47.5	70(66.5)	18(13)	167	216(/)	138.5(3)	135	32	55	50	10	35.5
	750W	22	3-25	380	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	167	152(/)	97.5(3)	135	22	40	35	7	25
		28	30-120	410	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	167	178(/)	116(3)	135	28	45	40	7	31.1
		32	125-200	450	130(185)	170(255)	210(239)	165(216)	13	30	70(66.5)	18(13)	167	216(/)	138.5(3)	135	32	55	50	10	35.5
		40	250-1800	600	150(230)	210(310)	265(277)	203(255)	15	59	83	20(18)	167	255(/)	160(5)	200	40	65	60	10	43.5
	1500W	28	3-30	418	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	192	193(/)	116(3)	139	28	45	40	7	31.1
		32	40-100	452	130(185)	170(255)	210(239)	165(216)	13	30	70(66.5)	18(13)	192	216(/)	138.5(3)	139	32	55	50	10	35.5
		40	110-150	503	150(230)	210(310)	265(277)	203(255)	15	36	83	20(18)	192	255(/)	160(5)	139	40	65	60	10	43.5
3-Phase (Three-phase)	100W	18	60-200	254	40(50)	110(140)	135(120)	65(120)	9	16	50(39.5)	10(12)	130.5	143//)	88.5(2)	100	18	30	27	5	20.2
	100W	22	250-1800	341	65(148)	130(185)	158(175)	90(165)	12	33.5	60(48)	13(12)	130.5	161(/)	97.5(3)	100	22	40	35	7	25
	200W	18	15-90	279	40(50)	110(140)	135(120)	65(120)	9	16	50(39.5)	10(12)	130.5	143()	88.5(2)	100	18	30	27	5	20.2
		22	100-200	306	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	130.5	161(/)	97.5(3)	100	22	40	35	7	25
		28	250-1800	401	90(170)	140(220)	178(205)	120(195)	12	30	68(58)	17(13)	130.5	184(/)	116(3)	100	28	45	40	7	31.1
	400W	22	15-90	320	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	146	168(/)	97.5(3)	114	22	40	35	7	25
		28	100-200	352	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13)	146	184(/)	116(3)	114	28	45	40	7	31.1
		32	250-1800	469	130(185)	170(255)	210(239)	165(216)	13	47.5	70(66.5)	18(13)	146	216(/)	138.5(3)	114	32	55	50	10	35.5
	750W	22	3-25	337	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	172	168(/)	97.5(3)	126	22	40	35	7	25
		28	30-120	367	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13	172	184(/)	116(3)	126	28	45	40	7	31.1
		32	125-200	405	130(185)	170(255)	210(239)	165(216)	13	30	70(66.5)	18(13)	172	216(/)	138.5(3)	126	32	55	50	10	35.5
		40	250-1800	555	150(230)	210(310)	265(277)	203(255)	15	59	83	20(18)	172	255(/)	160(5)	126	40	65	60	10	43.5
	1500W	28	3-30	413	90(170)	140(220)	178(205)	120(195)	12	23	68(58)	17(13	192	193(/)	116(3)	137	28	45	40	7	31.1
		32	40-100	448	130(185)	170(255)	210(239)	165(216)	13	30	70(66.5)	18(13)	192	216(/)	138.5(3)	137	32	55	50	10	35.5
		40	110-150	498	150(230)	210(310)	265(277)	203(255)	15	36	83	20(18)	192	255(/)	160(5)	13	40	65	60	10	43.5
	2200W	40	45-80	518	150(230)	210(310)	265(277)	203(255)	15	36	83	20(18)	192	255(/)	160(5)	137	40	65	60	10	43.5
	3700W	40	15-60	548	150(230)	210(310)	265(277)	203(255)	15	36	83	20(18)	213	255(/)	160(5)	60	40	65	60	10	43.5

( ) values indicate the dimensions for the EA-VN (Vertical) type.

■ Type B Gearbox (Flange Type)

Voltage	Power	Output Shaft Diameter	Ratio	A	D	E	F	G	H	J	K	M	Z	S	P	Q	W	T


3-Phase Three-phase	100W	22	60-200	278	55	170	146	146	12	20	50	133	120	22	40	35	7	25
	200W		15-90	315	55	170	146	146	12	20	50	133	120	22	40	35	7	25
	400W		3-10	330	55	170	146	146	12	20	50	167	135	22	40	35	7	25

Product Features

Feature 1: A high-precision helical gear structure is employed to achieve low noise, high efficiency, and long service life.
Feature 2: The compact, integrated design minimizes installation space while delivering stable high-torque output.
Feature 3: Compatible with both single-phase and three-phase power sources, and available in various model configurations including brake types.

Wiring Diagram

Motor Type	Wiring Diagram
Motor Type	Wiring Diagram
FOR 3-Phase Motor	Three-phase Motor Δ Connection/220V-240V Y Connection/220V-240V












	Three-phase Motor and Brake Wiring Method Δ Connection/220V-240V Y Connection/380V-415V












FOR 1-Phase Motor C FOR Capacitor	Single-phase Motor 100W/200W/CCW Connection (Counterclockwise Rotation) 100W/200W/CW Connection (Clockwise Rotation) 400W/750W/1500W/CW Connection (Clockwise Rotation) 400W/750W/1500W/CCW Connection (Counterclockwise Rotation)












	Single-phase Motor and Brake Wiring Method 100W/200W/CCW Connection (Counterclockwise Rotation) 100W/200W/CW Connection (Clockwise Rotation) 400W/750W/1500W/CW Connection (Clockwise Rotation) 400W/750W/1500W/CCW Connection (Counterclockwise Rotation)
