Embedded Handles Flat Type Slim
Caution
- Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part19 CLICK here
- The mounting bolt of this product is fixed by sandwiching the head between sheet metal. If the nut is tightened while the tightening tool is at an angle, the load on the bolt head will cause it to come detached. Due to the short distance between the embedded part and the mounting bolt, it's easy for the tool to be at an angle, so care must be taken during installation.
Product Description
Embedded Handles Flat Type Slim
These embedded handles are designed for the convenient opening and closing the doors with limited space.The price is cheaper than the MISUMI standard product.They offer a wide variety of sizes to choose from.
[Feature]
- Size (L X W) (mm.) : 90 x 60 and 120 x 60
- Mounting Pitch (mm.) : 74 and 100
- Mounting Depth (mm.) : 15
- Material : Stainless SUS304
- Surface Treatment : Brushed
[Application]
It is used to grab the doors before opening and closing.
Economy Embedded Slim Handles
- Embedded flat handles with a slim profile. Ideal for installations where space is at a premium, ensuring seamless integration.
- Surface treated with a brushed (hairline) finish. Enhances the aesthetic appeal of your equipment, giving it a professional look.
- Robust design to handle frequent use. Ensures reliable performance under heavy usage, maintaining operational efficiency.
- Detailed dimensions and mounting instructions available. Facilitates precise installation planning, reducing errors and ensuring proper fit.
- Available in multiple sizes.
MISUMI Standard
Cheaper Price
Product Variety
3D CAD Support
| Type |  Material | Finishing |
| C-NUWAUNS | SUS304 | Brushed(Hairline Finish) |
[ ! ]The mounting bolt of this product is fixed by sandwiching the head between sheet metal. If the nut is tightened while the tightening tool is at an angle, the load on the bolt head will cause it to come detached. Due to the short distance between the embedded part and the mounting bolt, it's easy for the tool to be at an angle, so care must be taken during installation.

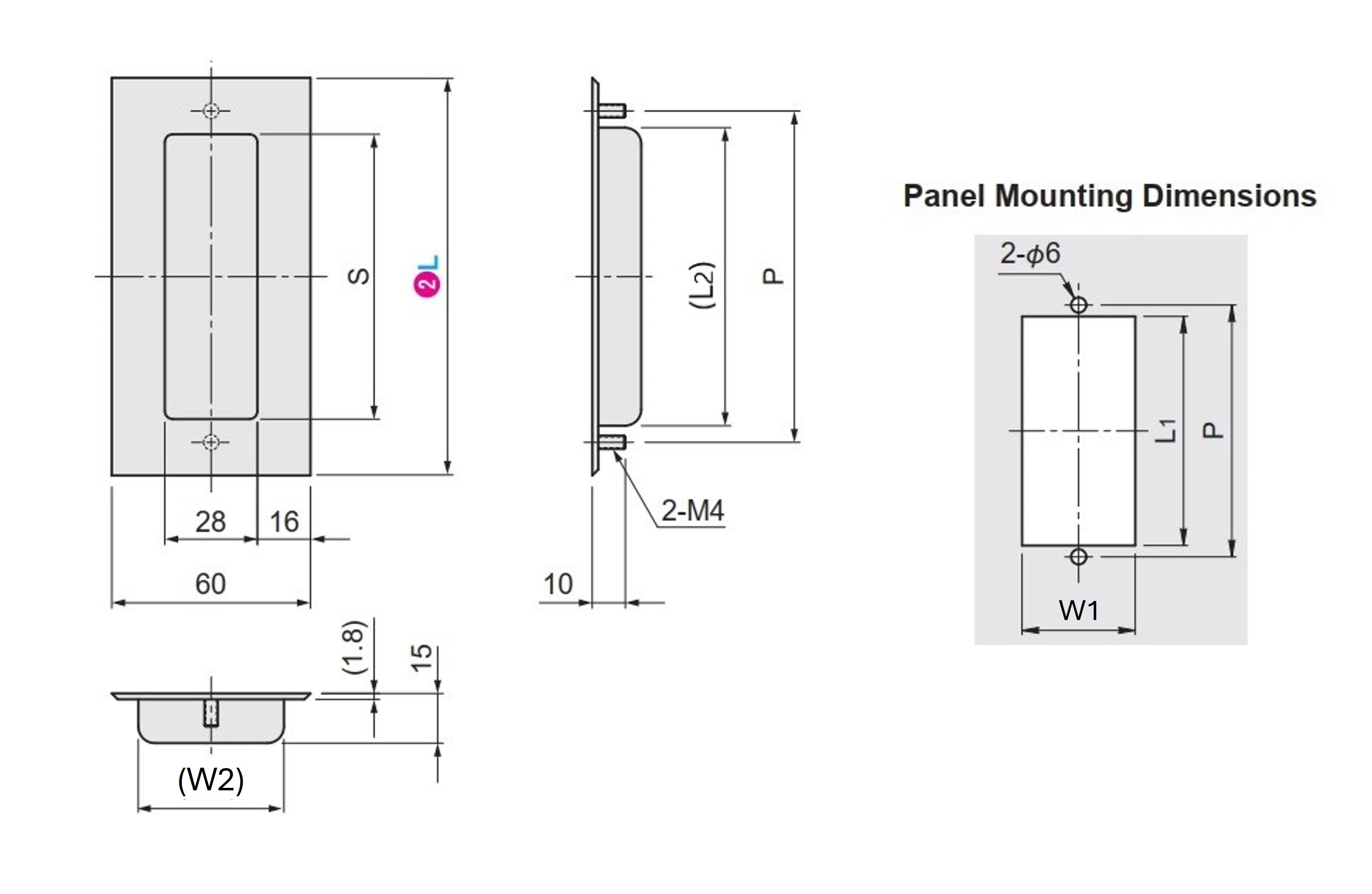

| Part Number | P | S | W1 | L1 | (W2)※ | (L2)※ | |
| Type | L | ||||||
| C-NUWAUNS | 90 | 74 | 58 | 45 | 63 | 44 | 61 |
| 120 | 100 | 86 | 93 | 39 | 89 | ||
※Dimensions are for reference only and are not guaranteed.
Economy series Embedded handle Slim type is a relatively economical and cost-effective product on the market.
According to the overall dimensions, it can be divided into two specifications, L is 90mm and 120mm respectively, and the dimension customization of other specifications is not accepted for the time being.
The products are not airtight, please pay attention to purchase.
