Flat BeltS For Transferring Bulk Materials

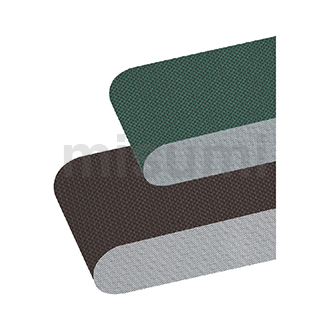

A flat belt or Conveyor Belt is a belt with a rectangular cross section.
Depending on material features, number of layers, color, and surface shape, it can transfer workpieces such as food, electronic parts, and corrugated cardboards, and is widely used in various fields and industries.

■Specification Table

Type

Material

Color

Surface Shape

Number of Layers

Thickness mm

Minimum pulley diameter Φmm

Allowable tension N/mm

Unit weight kg/㎡

Coefficient of friction (reference value for ground steel)

Knife edge

Continuous Operating Temperature °C

Surface

Rear

Surface

Rear

CFBGG

Urethane

Impregnated polyester canvas

Green

Thread (Fine)

1

1.2

20

4

1.2

0.4

0.2

R4

-20~80

CFBGB

Brown

1.2

20

4

1.2

0.4

0.2

R4

The permanent stretch rate of the Conveyor Belt is 1% relative to the total length. (Reference value)
At the time of shipment, fitting processing has been performed on the ribbon belt.
Set the inner diameter as the circumference length.
Please select the pulley model after confirming the width tolerance between the pulley and the idler.


Please order after selecting part number and parameters according to the selection steps to .

		Part Number Type		-	Belt Width W (mm)		-	Circumference Length L (m)
		CFBGG		-	150		-	2.23

■Specification Table

Part Number		Circumference Length Ⅼ(m)
Type	Conveyor Belt Width W (mm) Can be specified down to 1mm increments	Can be specified down to 0.01m increments
CFBGG	10~500	0.70~20.00
CFBGB

At the time of shipment, fitting processing has been performed on the ribbon belt.

Features 1: complete specifications, widely used, available in a variety of colors and surface shapes
For general use: suitable for general conveying purposes of food packaging, cardboard boxes, metal, and plastic, etc.
For electronic parts: anti-static specifications, suitable for the transmission of anti-static electronic parts. The surface resistivity value is 10⁶～10⁸Ω.
For sliding: canvas with sliding performance in longitudinal direction is used to make the conveying objects stay and be arranged above the belt.
For conveying bulk materials: The surface is of textured shape, which can be used in horizontal transportation of bulk objects.


For general use

For general use

For general use

For electronic parts

For sliding

For sliding

For conveying bulk materials

For conveying bulk materials

Feature 2: Can prevent both sides of the belt from being raised
For 1 layer of flat belt, Conveyor Belt, the back is made of weaving with stronger rigidity to effectively prevent the belt from being raised on both sides.

Products circulating on the market *	MISUMI Economy series

* Problems of products circulating on the market.

Feature 3: more layers and types are available

Urethane coating, Urethane impregnated canvas is 1 layer Applicable motor power reference value: 40W		Urethane coating, Urethane impregnated canvas is 2 layers Applicable motor power reference value: 40W to 200W

The results of MISUMI Conveyor Belt installation test are for reference only.

■ Performance attribute reference

Part Number	Surface Material Performance Table
Type	Chemical resistance of covering layer	Tolerance to animal and vegetable oils	Flame Retardance	Water and heat resistance	Static resistance
CFBGG	〇	〇
CFBGB	〇	〇

Excellent Applicable 〇 May be corroded  Not applicable
Not suitable for unpackaged food transportation.

■ Belt appearance list

■ Conveyor Belt tension adjustment
The suitable tension force of the Conveyor Belt depends on the structure of the conveyor, material, the weight of the goods, etc., so it can not be determined as a few percent.
Please do not over-tension as it is permanently tensioned. Please refer to the following method for adjusting method.
①Select a length of 1000mm and draw a mark on an inconspicuous part of the flat belt, Conveyor Belt.


② Slowly tension the flat belt until the marking line reaches 1002mm.


③ Drive the flat belt in this state and confirm that the flat belt is not slipping. (If the flat belt deflects, then adjust it)
Carry out the transmission test after confirming no problems. If the transmission is smooth, you can continue to use the belt.
If the flat belt slips after the item is put on, perform Step ④.
④ When the flat belt slips, please tighten the flat belt slightly. Every time you need to confirm the slip until the flat belt does not slip.
Adjust the deviation and carry out the transmission test. Confirm smooth transmission before use.
⑤ It is recommended to check the tension state regularly.

■ Simple selection steps for flat belt
① Determine the necessary conditions for selection. (Maximum total weight of workpiece, pulley diameter, transmission power, etc.)
② Calculate the stress borne by the belt.
③ Choose the belt whose allowable stress is greater than the stress calculated in ②.
④ Confirm the oil resistance and chemical resistance of the belt, and confirm the sliding properties based on the coefficient of friction.
⑤ Determine the Conveyor Belt.


■ Textured surface can be used for horizontal transportation of bulk
Equipment name: Split brushes for installing bulk workpieces on the conveyor
Intended Use: detect bulk workpieces through sensors and drive the conveyor. Split evenly the overlapping workpieces through the brush. Prevent the workpiece from jamming.
Environment: automatic conveying line using the surface texture of the Conveyor Belt so that bulks can be arranged horizontally and conveyed.
