Urethane Molded Rollers With Bearings
Brand :
MISUMI
Caution
- Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part08 CLICK here
Product Description

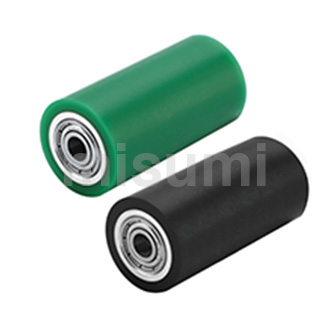

・ Product type: Urethane Molded Rollers with Bearings
・ Roller outer diameter [mm]: 25, 30, 35, 40, 50
・ Roller length [mm]: 20, 30, 40, 50, 100
・ Core material: Stainless Steel, Aluminum
・ Urethane Hardness (Color): Shore A90 (Green), Shore A70 (Black)
・ Urethane molded rollers contain 2 pieces of bearing.
・ Roller with Urethane Layer is crafted by sintering urethane onto the core material, creating a high-adhesion coating. Perfect for transporting and sliding various workpieces with ease.
・ This is an economy item; The price is cheaper than the MISUMI standard product.
Product Overview of Rollers
Rollers Urethane layer is sintered on the surface of the core material to form a roller with a high-adhesion coating layer, It is suitable for transportation and sliding of various workpieces.
Product Feature of Rollers
Feature 1 : Rollers, Urethane layer is directly sintered on the outer perimeter of the core material and is not easy to fall off.
Feature 2 : Rollers, Based on its excellent mechanical strength and wear resistance, urethane is widely used to prevent the scars and cracks that occur when brittle objects such as glass and acrylic are transported.
Feature 3 : Rollers, Compared with metal rollers, urethane rollers are less likely to transmit vibration and sound.
Feature 4 : Rollers, Urethane has low dust-generating properties.
Feature 5 : Rollers, Hardness can be directly identified by urethane coloring (Green: A90; Black: A70).
Feature 6 : Rollers, MISUMI [economy series bearing] is adopted, which ensures smooth operation and greatly reduces costs.
Feature 7 : Rollers, Using ether type urethane, it is more resistant to hydrolysis than ester-type urethane and has lower environmental requirements, while maintaining higher mechanical strength and abrasion resistance.
Feature 2 : Rollers, Based on its excellent mechanical strength and wear resistance, urethane is widely used to prevent the scars and cracks that occur when brittle objects such as glass and acrylic are transported.
Feature 3 : Rollers, Compared with metal rollers, urethane rollers are less likely to transmit vibration and sound.
Feature 4 : Rollers, Urethane has low dust-generating properties.
Feature 5 : Rollers, Hardness can be directly identified by urethane coloring (Green: A90; Black: A70).
Feature 6 : Rollers, MISUMI [economy series bearing] is adopted, which ensures smooth operation and greatly reduces costs.
Feature 7 : Rollers, Using ether type urethane, it is more resistant to hydrolysis than ester-type urethane and has lower environmental requirements, while maintaining higher mechanical strength and abrasion resistance.
■ Characteristics Table of Rollers
■ List of Differences between Rollers high precision products and Rollers economy series products
| Item | High precision products | Economy series products | Differences |
| Urethane layer processing method | Casting | Casting | Not Provided |
| Origin of Urethane | Germany | China | Economy series products use China urethane, which has the same level of abrasion resistance as the Germany, and has better economic efficiency. |
| Bearing | Japan | MISUMI Economy series | MISUMI Economy series bearings ensure smooth rotation and better economy. |
Dimensional Drawing of Rollers
No surface treatment for core material.Bearing Material: SUJ2.Urethane is ether type urethane.(dh) dimensions are for reference.Specifications Overview of Rollers
| Type |  Core Material |  Urethane Hardness (Color) |
| Straight Type | ||
| C-RORUS | Stainless Steel | Shore A90 (Green) |
| C-RORUA | Aluminum | |
| C-RORGS | Stainless Steel | Shore A70 (Black) |
| C-RORGA | Aluminum |
Material color is subject to the actual product.Urethane is sintered on the outer perimeter of the core material.No surface treatment for core material.Bearing Material: SUJ2.Example Use of Rollers
Mechanism name: pallet vertical transfer mechanism
Mechanism function:
Lift the workpiece on the conveyor and change the conveying direction.
Role of urethane roller:
To receive the workpiece conveyed by the motor roller. Coated urethane layer protects the workpiece from damage.
Mechanism function:
Lift the workpiece on the conveyor and change the conveying direction.
Role of urethane roller:
To receive the workpiece conveyed by the motor roller. Coated urethane layer protects the workpiece from damage.
Precautions of Rollers
1. Economy series urethane Rollers use ether type urethane, which is resistant to hydrolysis and has lower environmental requirements. However, due to the SUJ2 material of the bearing, it is still necessary to pay attention to rustprevention
2. Rollers has material color is subject to the actual product.
3. (dh) dimensions are not processed because the core material is an extruded pipe. The dimensions are for reference only.
4. If the tolerance is not marked on the dimensional drawing, general tolerance (intermediate) is guaranteed.
2. Rollers has material color is subject to the actual product.
3. (dh) dimensions are not processed because the core material is an extruded pipe. The dimensions are for reference only.
4. If the tolerance is not marked on the dimensional drawing, general tolerance (intermediate) is guaranteed.
Specification Table of Rollers
 | Part Number | |||
 Type· D | - |  L | ||
| C-RORUS25 | - | 20 | ||
■ Material Specification Table of Rollers
| Type | Core Material | Urethane Hardness (Color) |
| Straight Type | ||
| C-RORUS | Stainless Steel | Shore A90 (Green) |
| C-RORUA | Aluminum | |
| C-RORGS | Stainless Steel | Shore A70 (Black) |
| C-RORGA | Aluminum |
■ Dimension Specification Table of Rollers
| Part Number | L Selection | d | D1 | (dh) | B | Bearing Used Nominal Model | Number of Bearings | ||||||
| Type | D | ||||||||||||
| C-RORUS C-RORUA C-RORGS C-RORGA | 25 | 20 | 30 | 40 | 50 | 6 | 15 | 10 | 5 | 696ZZ | 2 | ||
| 30 | 20 | 30 | 40 | 50 | 8 | 19 | 15 | 6 | 698ZZ | 2 | |||
| 35 | 30 | 40 | 50 | 10 | 22 | 18 | 6 | 6900ZZ | 2 | ||||
| 40 | 30 | 40 | 50 | 100 | 12 | 28 | 24 | 8 | 6001ZZ | 2 | |||
| 50 | 30 | 40 | 50 | 100 | 15 | 32 | 28 | 9 | 6002ZZ | 2 | |||
(dh) dimensions are not processed because the core material is an extruded pipe. The dimensions are for reference only.Related Industries of Rollers
| Electronic | Automotive | |
 |  | |
| Smart phone | Semiconductor | |
 |  |
Related Products of Rollers
| Resin Collar Standard | Stopper bolt with urethane Straight type | Urethane molded bearing Inner wheel protruded For heavy load | ||
 |  |  | ||
| Typical model: CLJJ10-16-20.0 | Typical model: UST8-40 | Typical model: UMRHW40 | ||
| Advantages: Optional inner and outer diameter and height, better price | Suitable for conveying heavy load workpieces, compact tip, usable in narrow spaces | Suitable for conveying heavy load workpieces |
