End Caps For Aluminum Frames
Brand :
MISUMI
Caution
- European standard specifications, with different sizes, can only be matched with European standard economic type profiles starting with L.
- Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part17 CLICK here
Product Description
・ Plastic end caps for Aluminum Frames.
・ Applicable aluminum profile shape: Square Shape, Rectangle Shape, Single Radius Shape, L Shape
・ Applicable aluminum profile size: 2020, 2040, 3030, 3060, 4040, 4060, 4080, 4545, 4560, 4590, 5050, 6060, 8080, 8840, 9090
・ This is an economy item; The price is cheaper than the MISUMI standard product.
・ Order unit by package (20 pcs / pack).
・ Color of plastic end caps: B (Black), G (Light Grey)
・ Caps thickness is 3 mm.
・ Material of caps is made of Nylon.
Product Overview
Economy series Special end cap for European standard aluminum alloy profiles with groove width of 6mm
The end face cover plate is installed on the end surface of the profile, which not only increases the beauty but also ensures safety.
Special accessories for European standard aluminum profiles, only compatible with European standard aluminum profiles. Due to differences in profile slot shapes, they are not compatible with MISUMI's existing Japanese standard (JIS) profiles or other national standard profiles.
When selecting accessories, please confirm the accessory size according to the profile specifications before making your choice.
Examples of Differences and Compatibility Diagrams for Various Profile Slot Types
The end face cover plate is installed on the end surface of the profile, which not only increases the beauty but also ensures safety.
Special accessories for European standard aluminum profiles, only compatible with European standard aluminum profiles. Due to differences in profile slot shapes, they are not compatible with MISUMI's existing Japanese standard (JIS) profiles or other national standard profiles.When selecting accessories, please confirm the accessory size according to the profile specifications before making your choice.
Examples of Differences and Compatibility Diagrams for Various Profile Slot Types

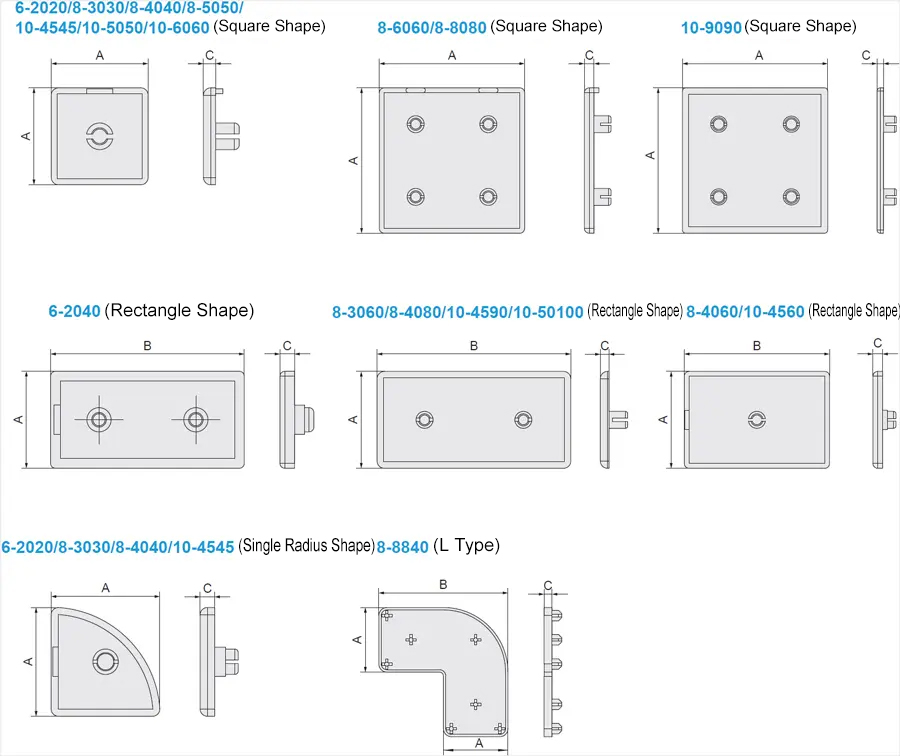

Dimensional Drawing
Material: NylonSpecification Table
| Part Number |  Applicable Profile No. |  Color |  Packed sales | Width A | Length B | Thickness C | Suitable Profile | ||
 Type | Types |  Groove Width | |||||||
| LCEC | Square | 6 | 2020 | B (black) G (Light Grey) | 20P | 20 | － | 3 | 2020 |
| 8 | 3030 | 30 | 4 | 3030 | |||||
| 4040 | 40 | 4040 | |||||||
| 5050 | 10P | 50 | 8-5050 | ||||||
| 6060 | 20P | 60 | 8-6060 | ||||||
| 8080 | 10P | 80 | 8080 | ||||||
| 10 | 4545 | 20P | 45 | 4545 | |||||
| 5050 | 10P | 50 | 10-5050 | ||||||
| 6060 | 60 | 10-6060 | |||||||
| 9090 | 90 | 9090 | |||||||
| Rectangle | 6 | 2040 | 20P | 20 | 40 | 3 | 2040 | ||
| 8 | 3060 | 30 | 60 | 4 | 3060 | ||||
| 4060 | 40 | 4060 | |||||||
| 4080 | 80 | 4080 | |||||||
| 10 | 4560 | 10P | 45 | 60 | 4560 | ||||
| 4590 | 90 | 4590 | |||||||
| 50100 | 50 | 100 | 50100 | ||||||
| LCECR | Sector | 6 | 2020 | 20P | 20 | － | 3 | 2020R | |
| 8 | 3030 | 10P | 30 | 4 | 3030R | ||||
| 4040 | 40 | 4040R | |||||||
| 10 | 4545 | 45 | 4545R | ||||||
| LCEC | L-shape | 8 | 8840 | 10P | 40 | 80 | 8840 | ||
Light gray models are only available for 2020, 3030, 4040, and 4080; sold in packs of 20P. Other light gray models are custom order only, with a minimum order quantity of 50 pieces. Example: LCEC8-4060-G. P is the abbreviation for PCS. Example: 20P means a bag contains 20 pieces.Product Features
①European standard profile product, which is different from JIS standard products
②Used to install on the end face of the profile, safe and beautiful
②Used to install on the end face of the profile, safe and beautiful
Precautions
*This product is a special accessory for European standard profiles, which cannot be used with JIS standard profile products.
*The CAD model was created earlier, so it differs from the actual product. The difference is that the CAD model has 4 additional support points compared to the actual product. Currently, the European standard end caps on the market are fixed with 1 central post, which does not affect usage. Therefore, the actual product received shall prevail.
Example of Use
