Tabbed Brackets For Aluminum Frames,
Brand :
MISUMI
Caution
- European standard specifications, with different sizes, can only be matched with European standard economic type profiles starting with L.
- Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part17 CLICK here
Product Description
・ Tabbed Brackets for Aluminum Frames, LBSB series.
・ Applicable Aluminum Frame Profile No.: 6 mm Groove Width, 8 mm Groove Width, 10 mm Groove Width.
・ This is an economy item; The price is cheaper than the MISUMI standard product.
・ Additional Cover Mounting Hole Machining available.
・ Material: Made of cast aluminum with
・ Can order with accessories as set product (Steel Screws and Nuts Set).
Product Overview
The new European standard Economy-series products have different sizes and can only be used with European standard Economy-series profiles starting with L.
Die-cast angle pieces are widely used for right-angle connections of profiles.
Special accessories for European standard aluminum profiles can only be used with European standard aluminum profiles. Due to the different shapes of profile grooves, they cannot be used with MISUMI's existing Japanese standard (JIS) profiles and other national standard profiles.
When purchasing accessories, please confirm the size of the accessories according to the profile specifications before choosing.
Examples of the differences in groove types and adaptation diagrams for various specifications of profiles
Die-cast angle pieces are widely used for right-angle connections of profiles.
Special accessories for European standard aluminum profiles can only be used with European standard aluminum profiles. Due to the different shapes of profile grooves, they cannot be used with MISUMI's existing Japanese standard (JIS) profiles and other national standard profiles.When purchasing accessories, please confirm the size of the accessories according to the profile specifications before choosing.
Examples of the differences in groove types and adaptation diagrams for various specifications of profiles
Dimensional Drawing
Material: ADC12
Surface treatment: Sandblasting>Specification Table
| Part Number | Extrusion Size | L | W | W1 | H | A | B | R | T | T1 | |
 Type |  No. | ||||||||||
| LBSB | 6－2020 | 2020 | 17 | 4.5 | 3 | 20 | 9 | 3 | 3.3 | 3 | 2 |
| 8－3030 | 3030 | 28 | 6 | 7 | 35 | 13.5 | 8 | 3.5 | 4 | 3 | |
| 8－4040 | 4040 | 35 | 7.8 | 7.5 | 40 | 12 | 15 | 4.8 | 5 | 4 | |
| 10－4545 | 4545 | Refer to the 45 series dimensional drawing | |||||||||
For more information on product specifications and dimensional drawings, please refer to the product catalog on the website.

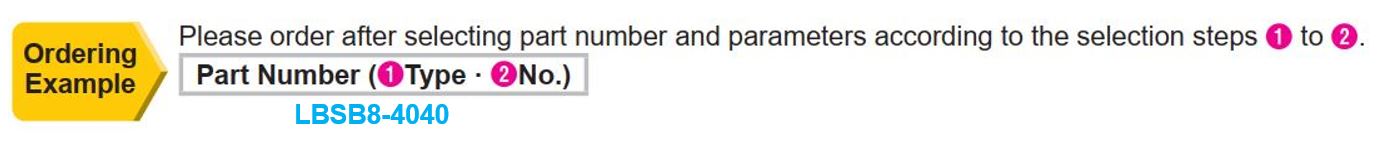

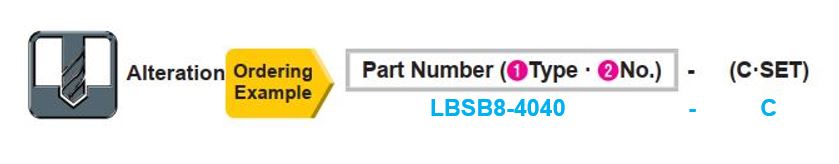

■Alterations
Bracket Compared with the standard corner code, the wall thickness is slightly thinner. It is suitable for the construction process of European standard aluminum alloy profiles, and the occasions with low load requirements. The quality isstable and the installation is convenient.
Specify -SET for additional processing, and it can be delivered together with commonly used bolts and nuts.
| Additional processing items | Additional processing code | Specifications |

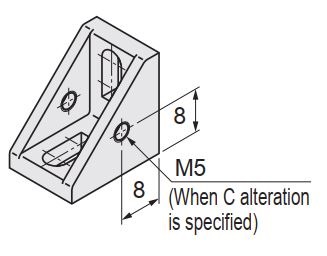

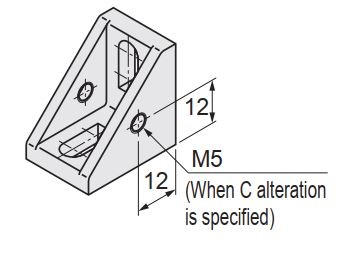

| Additional panel mounting hole processing | C | Process threaded holes on the corner brackets for panel mounting. 6-2020  8-3030/8-4040/10-4545  |
| Equipped with suitable bolts and nuts | SET | Equipped with appropriate bolts and nuts to fix the angle bracket to the profile. (Angle bracket + bolt + nut, added to the price of the angle bracket) When specifying SET, steel bolts and nuts are provided. ■T-bolt LTTB ■Flange nut LNCFM  The 2020 specification is equipped with cylindrical head bolts LTCM5-8 and T-nut LNTN6-20-5 |
Product Features
【Features】
Simple specifications, beautiful
【Intended Use】
Special Bracket black for European standard aluminum profiles with groove width of 6 mm, suitable for connection of small hood, display bar structure.
Simple specifications, beautiful
【Intended Use】
Special Bracket black for European standard aluminum profiles with groove width of 6 mm, suitable for connection of small hood, display bar structure.
Precautions>
Bracket special accessories for European standard profiles are not compatible with the existing non-C·VALUE aluminum profiles of MISUMI due to different sizes.
Example of Use
