Sheet Metal Bracket For 8 Series (Slot Width 10mm) Aluminum Frames - Bent-Shaped

Brand :

MISUMI

Caution

Product Description

It can be used as reinforcement for frame fastening. Sheet metal plates are used for necessary points, such as when reinforcement is necessary for fastening parts (bracket fastening, bolt fastening, joint fastening).

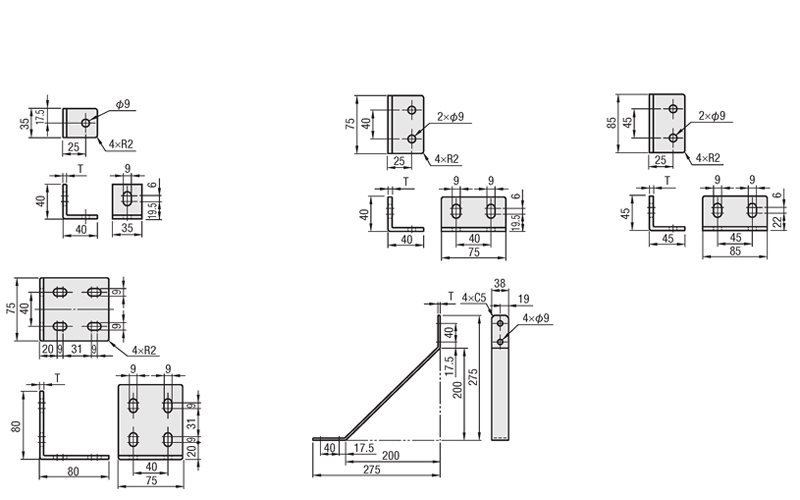

Dimensional Drawing of Metal Brackets

HPTBS8
SHPTBS8

HPTBD8
SHPTBD8

HPTBDW8

HPTGS8

SHPTBD8-45

Type Metal Brackets	[M]Material	[S] Surface Treatment
HPTBS	SPHC	Trivalent chromate
HPTBD
HPTBDW
HPTGS
SHPTBS	SUS304	−
SHPTBD

Specification Table of Metal Brackets

Model Metal Brackets

HPTBS8

・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

Model Metal Brackets	Mass (g)	T	Applicable bolts and nuts
			bolt	Quantity	nut	Quantity
HPTBS8*	83	4.5	M8-15	2	M8	2
SHPTBS8*		4
HPTBD8	179	4.5		4		4
SHPTBD8		4
SHPTBD8-45	234	4
HPTBDW8	461	6		8		8
HPTGS8*	560	4.5		4		4

[ ! ]8* can be used with 8-45

Additional Work of Metal Brackets

Additional Work Metal Brackets	Code	Model
Applicable bolt and nut set	SET SEP SEU	HPTBS8*
		SHPTBS8*
		HPTBD8
		SHPTBD8
		SHPTBD8-45
		HPTBDW8
		HPTGS8*

[ ! ]8* can be used with 8-45

■ Metal Brackets, Additional processing of SPHC (HPTBS8, HPTBD8, HPTBDW8, HPTGS8)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	CBM8-15	SPHC	First in, first out	HNTT8-8	SPHC	none
SEP [Post-insertion spring nut]	CBM8-15	SPHC	Later insertion	HNTP8-8	SPHC	Yes
SEU [Pre-assembly spring nuts]	CBM8-15	SPHC	First in, first out	HNTU8-8	SPHC	Yes

■ Metal Brackets, Additional processing of SUS304 (SHPTBS8, SHPTBD8, SHPTBD8-45)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	SCB8-15	SUS304	First in, first out	HNTTSN8-8	SUS304	none
SEP [Post-insertion spring nut]	SCB8-15	SUS304	Later insertion	SHNTP8-8	SUS304	Yes
SEU [Pre-assembly spring nuts]	SCB8-15	SUS304	First in, first out	SHNTU8-8	SUS304	Yes

Compatible Frames of Metal Brackets

[ ! ]Products marked with 8* can be used with both the 8 series and the 8-45 series.

How to Use of Metal Brackets

Metal Brackets, Sheet metal plates are used where necessary when customer designs require reinforcement of fastening parts (bracket fastening, bolt fastening, joint fastening).
The more bolts there are, the stronger the fastening force.
It can also be used to connect safety fences together.
