Free Angle Brackets - For 8 Series (Slot Width 10mm) Aluminum Frames
Brand :
MISUMI
Caution
Product Description
When connecting the frame, it can be connected at any angle. This product cannot be used alone. Please select 2 models for use in combination.

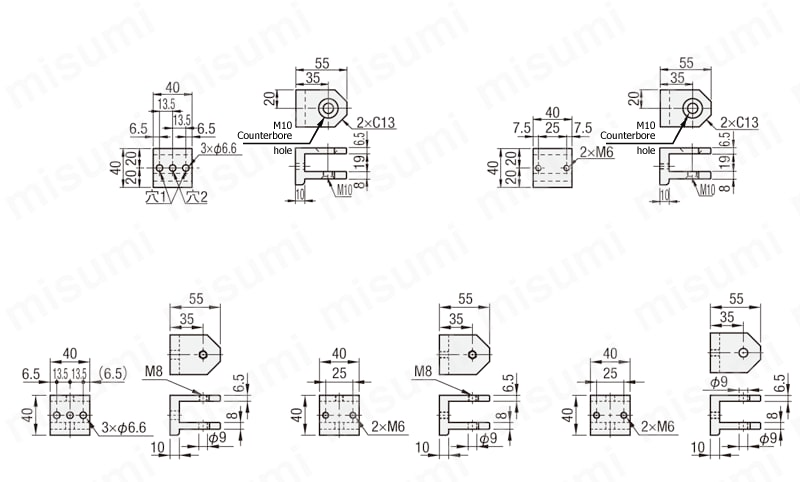

Dimensional Drawing of Angular Brackets
Frame side mounting type Angular Brackets HBLTBA40(1 unit will be delivered for an order of 1 unit)Frame cross section mounting type
HBLTBBN40(1 unit will be delivered for an order of 1 unit)Clamp lever type
HBLTBC40(One each of ① and ③ will be delivered for an order of 1 unit)
HBLTBD40(One each of ② and ③ will be delivered for an order of 1 unit)1) Frame side mounting type②Frame cross section mounting type③Frame cross section mounting type
(base)
| Angular Brackets Type | [M] Angular Brackets Material | [S] Surface Treatment |
| HBLTBA40 HBLTBBN40 HBLTBC40 HBLTBD40 | A6N01SS-T5 | Anodizing |
| Included screws | SCM435 | Trivalent Chromate |
Specification Table of Angular Brackets
| Angular Brackets Model |
| HBLTBA40 |
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Angular Brackets Model | Supported Frames | Mass (g) | accessories | Quantity | |
| Angular Brackets Type | No. | ||||
| HBLTBA | 40 | 8 series 40 square | 97 | M10×16 | 1 |
| HBLTBBN | 98 | ||||
| HBLTBC | 267 | CLDM8-40-M | 1 | ||
| HBLTBD | 269 | ||||
Additional Processing of Angular Brackets
| Angular Brackets Model | - | (SET・SET1・SET2・SET3・SET4・SET5) |
| HBLTBA40 | - | SET2 |
| HBLTBBN40 | - | SET |
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Alterations | Code | Angular Brackets Model | Mounting location | Accessories | ||||
| Type | No. | bolt | Quantity | Nut/Pre-inserted double joint | Quantity | |||
| Applicable bolts and nuts included | SET | HBLTBBN | 40 | - | CBM6-35 | 2 | HDJFSN8 | 1 |
| SET1 | HBLTBA | Use hole 1 | CBM6-20 | 2 | HNTT8-6 | 2 | ||
| SET2 | Use hole 2 | CBM6-20 | 1 | HNTT8-6 | 1 | 53 | ||
| SET3 | HBLTBC | Use hole 1 | CBM6-35 | 2 | HDJFSN8 | 1 | ||
| CBM6-20 | 2 | HNTT8-6 | 2 | |||||
| SET4 | HBLTBC | Use hole 2 | CBM6-35 | 2 | HDJFSN8 | 1 | ||
| CBM6-20 | 1 | HNTT8-6 | 1 | |||||
| SET5 | HBLTBD | - | CBM6-35 | 4 | HDJFSN8 | 2 | ||
[ ! ]When specifying -SET□, the included bolts are not RoHS compliant.
Supported Frames of Angular Brackets
-Only usable with8 series 40 x 40 mm .
Selection method of Angular Brackets
○No clamp lever type
- Products without clamp levers (HBLTBBN, HBLTBA) are one model for one side of the frame.
Please select two models according to your application and use them in combination. - The side of the frame is connected with the free Angular Brackets nut set (SET1, SET2).
- On the frame cross section side, S-shaped holes are drilled into the frame, and the free Angular Brackets is connected with a pre-assembled double joint set (SET).
Clamp lever type
- Products with clamp levers (HBLTBC, HBLTBD) are for double-sided use, so two frames can be connected with one model.
For types with clamp levers, please select a set of joints and nuts that connect the cross section and side (SET3, SET4) or a set with joints on both sides that connects cross sections together (SET5).
If connecting to the cross section side of the frame, S-hole processing is required on the frame.
▶For details on S-hole processing
▶For details on how to connect a pre-inserted double joint
Usage Example of Angular Brackets

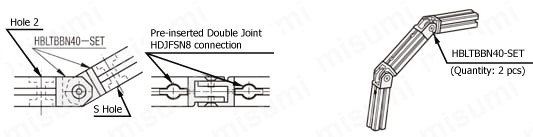

(1) Frame cross section + frame cross section installation
Prepare two HBLTBBN40-SETs and an aluminum frame with additional S-shaped holes.
Connect them using the pre-assembled double joints and bolts from the HBLTBBN40 SET.
○No clamp lever type
When using the clamp lever type
| Angular Brackets mounting position | Model | quantity | remarks |
|---|---|---|---|
| cross section | HBLTBBN40-SET | 1 | SET (pre-fit double joint + bolt) |
| HFS8-4040-[50-4000/0.5]-RSV | 1 | S hole addition | |
| cross section | HBLTBBN40-SET | 1 | SET (pre-fit double joint + bolt) |
| HFS8-4040-[50-4000/0.5]-LSV | 1 | S hole addition |
| Angular Brackets Model | quantity | remarks |
|---|---|---|
| HBLTBD40-SET5 | 1 | SET5 (2 pre-assembled double joints + bolt) |
| HFS8-4040-[50-4000/0.5]-RSV | 1 | S hole addition |
| HFS8-4040-[50-4000/0.5]-LSV | 1 | S hole addition |

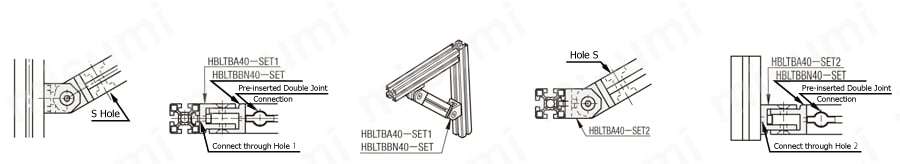

(2) Frame side + frame cross section installation
Attach HBLTBA40 SET1 or SET2 to the side of the frame with a nut. Attach
HBLTBBN40 SET to the frame cross section by adding an S-hole to the frame and connect with a pre-inserted double joint.
(For types with clamp levers, connect the frame side and cross section with HBLTBC40 SET3 or SET4.)
■ If you want to adjust the Angular Brackets along the side (horizontal direction)
○No clamp lever type
When using the clamp lever type
| Angular Brackets mounting position | Model | quantity | remarks |
|---|---|---|---|

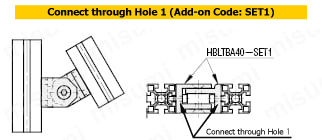

| side | HBLTBA40-SET1 | 1 | SET1 (2 nuts + bolt for 1 hole) |
| HFS8-4040-[50-4000/0.5] | 1 | none | |
| cross section | HBLTBBN40-SET | 1 | SET (pre-fit double joint + bolt) |
| HFS8-4040-[50-4000/0.5]-LSV | 1 | S hole addition |
| Angular Brackets Model | quantity | remarks |
|---|---|---|
| HBLTBC40-SET3 | 1 | SET3 (2 nuts for 1 hole + pre-inserted double joint + bolt) |
| HFS8-4040-[50-4000/0.5] | 1 | none |
| HFS8-4040-[50-4000/0.5]-LSV | 1 | S hole addition |
■ When you want to adjust the Angular Brackets perpendicular to the side (vertical direction)
○No clamp lever type
When using the clamp lever type
| Angular Brackets mounting position | Model | quantity | remarks |
|---|---|---|---|

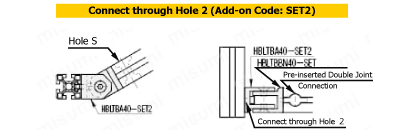

| side | HBLTBA40-SET2 | 1 | SET2 (1 nut + bolt for 2 holes) |
| HFS8-4040-[50-4000/0.5] | 1 | none | |
| cross section | HBLTBBN40-SET | 1 | SET (pre-fit double joint + bolt) |
| HFS8-4040-[50-4000/0.5]-LSV | 1 | S hole addition |
| Angular Brackets Model | quantity | remarks |
|---|---|---|
| HBLTBC40-SET4 | 1 | SET4 (1 nut for 2 holes + pre-inserted double joint + bolt) |
| HFS8-4040-[50-4000/0.5] | 1 | none |
| HFS8-4040-[50-4000/0.5]-LSV | 1 | S hole addition |
(3) Frame side + frame side installation
Connect two HBLTBA40's SET1 or SET2 together.
■ If you want to adjust the Angular Brackets along the side (horizontal direction)
○No clamp lever type
| Angular Brackets mounting position | Model | quantity | remarks |
|---|---|---|---|
| side | HBLTBA40-SET1 | 2 | SET1 (2 nuts + bolt for 1 hole) |
| HFS8-4040-[50-4000/0.5] | 2 | none |

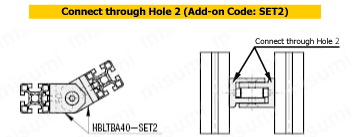

■ When you want to adjust the Angular Brackets perpendicular to the side (vertical direction)
○No clamp lever type
| Angular Brackets mounting position | Model | quantity | remarks |
|---|---|---|---|
| side | HBLTBA40-SET2 | 2 | SET2 (1 nut + bolt for 2 holes) |
| HFS8-4040-[50-4000/0.5] | 2 | none |
Reference of Angular Brackets
- There is no allowable load data available for this Angular Brackets product.
- When drilling S-holes into the frame, it does not matter whether you choose vertical or parallel as long as it is on one end face.
- Set items come with nuts or pre-fitted double joints plus the number of bolts required for installation.
Product Comparison Information of Angular Brackets
■8 Series Angular Brackets
