Screw Mounted - For 6 Series (Slot Width 8mm) Aluminum Frames
Brand :
MISUMI
Caution
Product Description
This is Frame cap screw mounting type for Aluminum Frame Series 6-3030 and 6-3060. No additional alteration required.

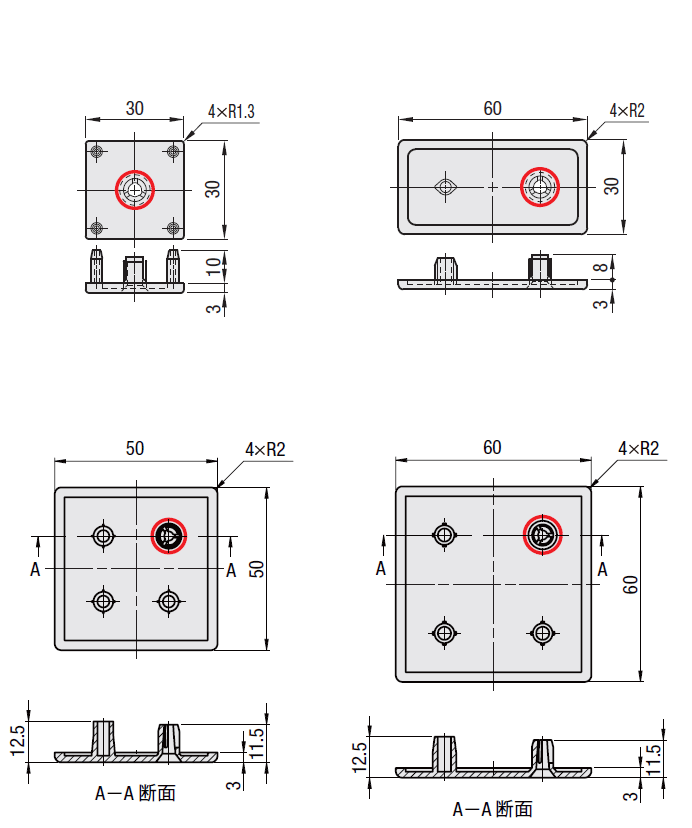

Dimensional Drawing of Frame Caps
Installation exampleThere is no need to tap the end face on the Frame Caps.
[ ! ] The model numbers inredin the above outline drawing are new products with additional specifications. They are not listed in the paper catalog.
[ ! ]The number and shape of the legs may be changed to prevent them from coming loose.
[ ! ]The red circled parts
are the Frame Caps fastening positions.
[ ! ]The number and shape of the legs may be changed to prevent them from coming loose.
[ ! ]The red circled parts
are the Frame Caps fastening positions.HFCB6-3030
(Frame Caps type)
(Frame Caps type)
HFCB6-3060
(Frame Caps type)
(Frame Caps type)
HFCB6-5050
(Frame Caps type)
(Frame Caps type)
HFCB6-6060
(Frame Caps type)
(Frame Caps type)
Specification Table of Frame Caps
| Model | − | color |
| HFCB6-3030 | − | B |
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
[ ! ]The aluminum frame EFS series can use the same Frame Caps as the HFS series.
[ ! ]Y (yellow) color is only available for HFCB6-3030/5050/8080.
[ ! ]Heat resistance: 80℃
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Model | color | Main body [M] Material | Accessories(flat head bolts) | ||
| Type | No. | size | [M] Material/[S] Surface treatment | ||
| HFCB6 | 3030 | B(Black) S(Light Gray) Y(Yellow)[ ! ]3030/5050/6060 only | Polyamide not treated | M4×12L (normal) | B: SCM435 trivalent chromate (black) S,Y: SUS304 equivalent , no treatment |
| 3060 | |||||
| 5050 | |||||
| 6060 | |||||
[ ! ]Y (yellow) color is only available for HFCB6-3030/5050/8080.
[ ! ]Heat resistance: 80℃
Aluminum Frame Compatibility Chart of Frame Caps
| Frame | Compatible Frame Caps | |||
| Corner Dimensions | Model | Model | color | explanation |
3030 | HFS6-3030 | HFCB6-3030-B | black | Bolt-on (black) |
| HFSF6-3030 | HFCB6-3030-S | Light Grey | Bolt fastening (light gray) | |
| HFST6-3030 | HFCB6-3030-Y | yellow | Bolt fastening (yellow) | |
| HFSH6-3030 | ||||
| HFSC6-3030 | ||||
| HFSB6-3030 | ||||
| HFSFB6-3030 | ||||
| HFSTB6-3030 | ||||
| EFS6-3030 | ||||
| EFSF6-3030 | ||||
| EFST6-3030 | ||||
| EFSH6-3030 | ||||
| EFSC6-3030 | ||||
| EFSB6-3030 | ||||
| EFSFB6-3030 | ||||
| EFSTB6-3030 | ||||
| NEFS6-3030 | ||||
| NEFSF6-3030 | ||||
| NEFST6-3030 | ||||
| NEFSB6-3030 | ||||
| HFSL6-3030 | ||||
| NFSL6-3030 | ||||
| HFSLB6-3030 | ||||
| HFSV6-3030 | ||||
| CAF6-3030 | ||||
| HFSY6-3030 | ||||
3060 | HFS6-3060 | HFCB6-3060-B | black | Bolt-on (black) |
| HFSF6-3060 | HFCB6-3060-S | Light Grey | Bolt fastening (light gray) | |
| HFST6-3060 | HFCB6-3030-B | black | Uses 2 black bolts | |
| HFSH6-3060 | HFCB6-3030-S | Light Grey | Bolt fastener (light gray) 2 pieces used | |
| HFSB6-3060 | HFCB6-3030-Y | yellow | Uses 2 yellow bolts | |
| EFS6-3060 | ||||
| EFSF6-3060 | ||||
| EFSH6-3060 | ||||
| EFSB6-3060 | ||||
| NEFS6-3060 | ||||
| NEFSF6-3060 | ||||
| NEFST6-3060 | ||||
| NEFSB6-3060 | ||||
| HFSL6-3060 | ||||
| HFSLB6-3060 | ||||
| NFSL6-3060 | ||||
| HFSV6-3060 | ||||
| CAF6-3060 | ||||
6060 | HFS6-6060 | HFCB6-3060-B | black | Uses 2 black bolts |
| HFSF6-6060 | HFCB6-3060-S | Light Grey | Bolt fastener (light gray) 2 pieces used | |
| HFST6-6060 | ||||
| HFSB6-6060 | ||||
| NFS6-6060 | ||||
| NFSF6-6060 | ||||
| NFSB6-6060 | ||||
| HFSG6-6060 | ||||
| CAF6-6060 | ||||
30120 | HFS6-30120 | HFCB6-3060-B | black | Uses 2 black bolts |
| EFS6-30120 | HFCB6-3060-S | Light Grey | Bolt fastener (light gray) 2 pieces used | |
| NEFS6-30120 | ||||
| EFSB6-30120 | ||||
30300 | EFS6-30300 | HFCB6-3060-B | black | Bolt-on (black) |
| HFCB6-3060-S | Light Grey | Bolt fastening (light gray) | ||
5050 | HFS6-5050 | HFCB6-5050-B | black | Bolt-on (black) |
| HFSB6-5050 | HFCB6-5050-S | Light Grey | Bolt fastening (light gray) | |
| HFSL6-5050 | HFCB6-5050-Y | yellow | Bolt fastening (yellow) | |
| NFS6-5050 | ||||
6060 | HFS6-6060 | HFCB6-6060-B | black | Bolt-on (black) |
| HFSB6-6060 | HFCB6-6060-S | Light Grey | Bolt fastening (light gray) | |
| CAF6-6060 | HFCB6-6060-Y | yellow | Bolt fastening (yellow) | |
| HFSY6-6060 | ||||
| NFS6-6060 | ||||
| NFSB6-6060 | ||||
| HFSG6-6060 | ||||
For other types of 6 series Frame Caps, please refer to the following.
[FA New Product] 6 series (groove width 8 mm) Frame Caps for aluminum frames arehere6 series (groove width 8 mm) Frame Caps for aluminum frames, high rigidity plate type arehere6 series (groove width 8 mm) End plate for aluminum frames arehere6 series (groove width 8 mm) Corner 3-sided cap for 30 square aluminum frames ishere
Technical Information of Frame Caps
How to make it flush
: Shorten the length of the aluminum frame by the thickness of the Frame Caps.

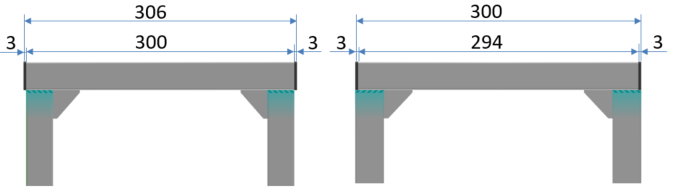

<Example: Bracket connection: When connecting with one side 300 mm long>
A: Specify the model number that protrudes to account for the thickness of the Frame Caps,
HFS6-3030-300, with a length of 300 mm.
B: Specify the model number for the Frame Caps that does not protrude and is flush,
HFS6-3030-294, shorter by the thickness of the Frame Caps.
A: Specify the model number that protrudes to account for the thickness of the Frame Caps,
HFS6-3030-300, with a length of 300 mm.
B: Specify the model number for the Frame Caps that does not protrude and is flush,
HFS6-3030-294, shorter by the thickness of the Frame Caps.
A Frame Caps pops out
B Frame Caps is flush and
does not protrude

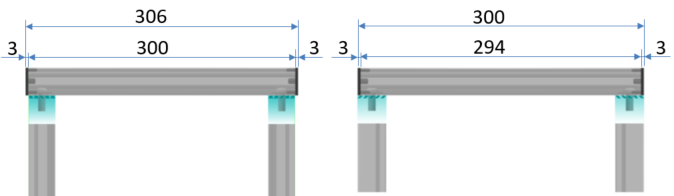

<Example: Screw joint connection: When connecting with one side 300 mm long>
C: For the thickness of the Frame Caps,
specify the protruding model HFS6-3030-300-RCV-LCV and 300 mm long wrench holes on the left and right.
D: For the Frame Caps, specify the model HFS6-3030-294-RCV-LCV-FR-FL, which does not protrude and is flush with
the Frame Caps, shortening it by the thickness of the Frame Caps, and specify the wrench holes and wrench hole shifts on the left and right.
C: For the thickness of the Frame Caps,
specify the protruding model HFS6-3030-300-RCV-LCV and 300 mm long wrench holes on the left and right.
D: For the Frame Caps, specify the model HFS6-3030-294-RCV-LCV-FR-FL, which does not protrude and is flush with
the Frame Caps, shortening it by the thickness of the Frame Caps, and specify the wrench holes and wrench hole shifts on the left and right.
C Frame Caps pops out
D Frame Caps are flush and
do not protrude
