Three-Sided Cap for Corners - For 6 Series (Slot Width 8mm) Aluminum Frames
Brand :
MISUMI
Caution
Product Description
[Features]
• Polyamide three-sided frame cap for Aluminum Frame Series 6-3030 corners.
• Screw mounting type helps keep caps from falling off without additional frame tapping.
• Black color option is supplied with accessories.
[Use]
• Use with 6-3030 frames; EFS series aluminum frames can use the same caps as HFS series.
Dimensional Drawing of Frame Caps
| HFCK6-3030 |
 |
[M] Frame Caps Material: Polyamide
Specification Table of Frame Caps
| Frame Caps Model | − | color |
| HFCK6-3030 | − | B |
[!]The number and shape of the legs may change to prevent them from coming loose.
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
*The aluminum frame EFS series can use the same Frame Caps as the HFS series.
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Frame Caps Model | color | accessories | Compatible Frames* |
| HFCK6-3030 | B(black) | HFBMB4-12 | 6-3030 |

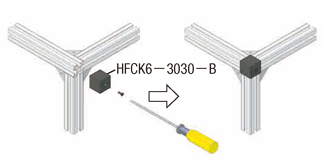

How to Use of Frame Caps
| <Before installation> <After installation> | |
 | |
| [!]No additional tapping of the frame is required. | |
Technical Information of Frame Caps
How to make it flush
: Shorten the length of the aluminum frame by the thickness of the Frame Caps.

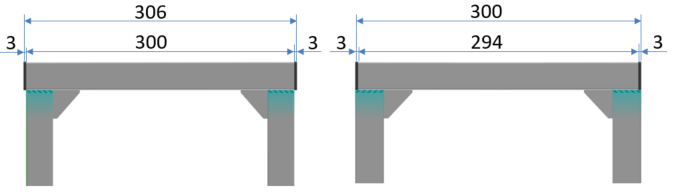

<Example: Bracket connection: When connecting with one side 300 mm long>
A: Specify the model HFS6-3030-300, which protrudes to accommodate the thickness of the Frame Caps,
with a length of 300 mm.
B: Specify the model HFS6-3030-294, which does not protrude and is flush with the Frame Caps,
with a length shorter by the thickness of the Frame Caps.
A: Specify the model HFS6-3030-300, which protrudes to accommodate the thickness of the Frame Caps,
with a length of 300 mm.
B: Specify the model HFS6-3030-294, which does not protrude and is flush with the Frame Caps,
with a length shorter by the thickness of the Frame Caps.
A Frame Caps pops out
B The Frame Caps does not protrude but
remains flush

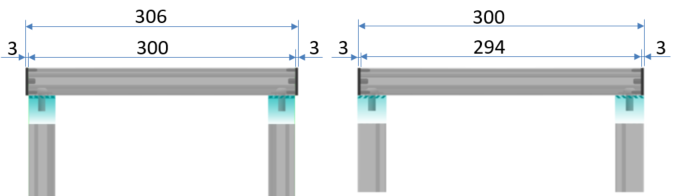

<Example: Screw joint connection: When connecting with one side 300mm long>
C: For the Frame Caps thickness, specify the protruding
model HFS6-3030-300-RCV-LCV, a length of 300mm, and wrench holes on the left and right.
D: For the Frame Caps that does not protrude and is flush,
specify the model HFS6-3030-294-RCV-LCV-FR-FL, shorter by the Frame Caps thickness, and specify wrench holes and wrench hole shifts on the left and right.
C: For the Frame Caps thickness, specify the protruding
model HFS6-3030-300-RCV-LCV, a length of 300mm, and wrench holes on the left and right.
D: For the Frame Caps that does not protrude and is flush,
specify the model HFS6-3030-294-RCV-LCV-FR-FL, shorter by the Frame Caps thickness, and specify wrench holes and wrench hole shifts on the left and right.
C Frame Caps pops out
D The Frame Caps does not protrude but
remains flush
6 Series Related Parts of Frame Caps
| Product name | Aluminum frame | bracket | Blind Joint | Groove cover | nut |
|---|---|---|---|---|---|
| photograph |  |  |  |  |  |
| Product page | Here | Here | Here | Here | Here |
