Post-Assembly Nut and Stopper Set - For 6 Series (Slot Width 8 mm) Aluminum Frame
Caution
Product Description
This set product is less expensive than purchasing the nut and stopper separately.

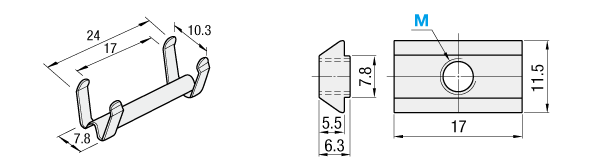

Dimensional Drawing of Nuts
Sold Nuts individually | Sold Nuts in packs | |
| HNTAT6(S10C equivalent set) HNTATSN6(SUS316 equivalent set) | PACK-HNTAT6(Pack of 100) PACK-HNTATSN6(Pack of 100) |
A stopper
B stopper Nuts
| Nuts Type | A stopper | B stopper Nuts | ||||
|---|---|---|---|---|---|---|
| Model | Material | Model | Material | Surface Treatment | Conductive function | |
| HNTAT6 | HNAST6 | polypropylene | HNTA6 | Equivalent to S10C | Trivalent Chromate | - |
| HNTATSN6 | HNTASN6 | SUS316 equivalent (sintered) | - | can be | ||
Specification Table of Nuts
| Model | − | M |
| HNTAT6 | − | 6 |
| PACK-HNTAT6 | − | 6 |
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Model | M | |||
| HNTAT6 | 3 | 4 | 5 | |
| 6 | ||||
| HNTATSN6 | 3 | 4 | 5 | 6 |
. The price list below is currentas of April 2011.
To check the latest price, click the "Check Price" button after confirming the model number.
Model | M (coarse) | |||
| PACK-HNTAT6 | 3 | 4 | 5 | |
6 | ||||
| PACK-HNTATSN6 | 3 | 4 | 5 | 6 |
Specifications/Overview of Nuts
■This product is a set of post-assembly stopper Nuts and stopper.
Post-assembly stopper Nuts and stopper are also available separately.
■What is conductive function?
- The conductive Nuts has a protrusion.
- When installed, the protrusions peel off the anodized coating on the aluminum frame, making it conductive.
Nuts for Attaching Various Aluminum Frames and Panels/Brackets (M size - L dimension)
| Groove Width | Frame angle | Depth h | Compatible Nuts | Thickness b (mm) of the panel/bracket to be attached to the frame | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.8 | 1 | 1.2 | 1.5 | 2 | 3 | 4 | 4.5 | 5 | 6 | 8.2 | 9 | 10 | 12 | 14 | ||||
| 8 | 30 | 9 | 6-3 | M3-8 | M3-10 | M3-12 | M3-15 | M3-18 | M3-20 | |||||||||
| 6-4 | M4-8 | M4-10 | M4-12 | M4-15 | M4-18 | M4-20 | ||||||||||||
| 6-5 | M5-8 | M5-10 | M5-12 | M5-15 | M5-18 | M5-20 | M5-22 | |||||||||||
| 6-6 | - | M6-10 | M6-12 | M6-15 | M6-20 | M6-22 | ||||||||||||
How to Use of Nuts
- This product is a post-assembly Nuts that can be installed from the groove after assembly.
- By using the stopper, the Nuts will not fall off even if the frame is placed vertically.
- Insert the stopper into the frame and then insert the Nuts from above.
Selection Support Information of Nuts
■Compatible series
This product is compatible withMisumi 6 series (groove width 8mm) aluminum frames.
6 Series
- MISUMI offers a wide range of aluminum frame Nuts, including both first-in and last-in types. Use them according to your application.
First-in: Install from the groove end face before assembly. The wide design means there is little play inside the groove, making bolt tightening easy.
To remove the Nuts, hook the hex wrench into the hole in the Nuts and turn it at a right angle to the groove.
6 Series Related Parts of Nuts
| Product name | Aluminum frame | Bracket | Blind Joint | Frame cap | Groove cover |
|---|---|---|---|---|---|
| photograph |  |  |  |  |  |
| Product page | Here | Here | Here | Here | Here |
