5 Series Aluminum Frame Tabbed Nut Mounting Bracket - 6mm Slot, 1 Slot

Brand :

MISUMI

Caution

Product Description

By pressing the nut against the long protrusion, troublesome positioning of the nut is eliminated.

Dimensional Drawing of 90 degree Brackets

HBLFSR5

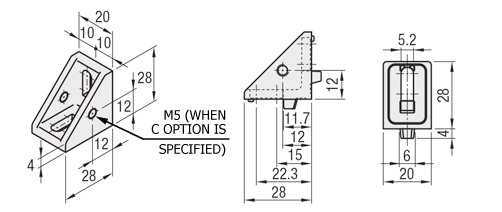

5 Series (6mm Groove Width) - Single Groove - Nut Mounting 90 degree Brackets: Related Images

[ ! ]The hole is elongated to accommodate different nut hole position values.
[ ! ]If the nut is dropped from a high position, the protrusion may be damaged.
[ ! ]We recommend using a washer. (Alternative machining/SEC)
[ ! ]For the 90 degree Brackets's squareness, please refer to the squareness tolerance table
. [ M ] 90 degree Brackets Material: ADC12 [ S ] Surface treatment: None

Specification Table of 90 degree Brackets

Model

HBLFSR5

・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

[ ! ]Bolts and nuts are not included with the 90 degree Brackets.
Please check the table below for compatible bolts and nuts.
If you would like to purchase a bolt and nut set, please select it from the "Accessories" filter.
For detailed specifications, please check the individual product links under "Applicable bolt and nut set" (can be purchased individually).

90 degree Brackets Model	Mass (g)	Compatible bolts and T-nuts				Allowable load (N)
Type	Mass (g)	bolt	Quantity	T-nut	Quantity	Allowable load (N)
HBLFSR5	15	CBM5-10	2	HNTT5-5	2	1176

Additional Work of 90 degree Brackets

Model	−	(C・SET・SST・SEU・SSU・SEP・SSP・SEC)
HBLFSR5	−	SET
HBLFSR5	−	C-SET

Alterations	Code	Spec.	Applicable 90 degree Brackets
Additional cover mounting holes	C	The 90 degree Brackets can be fitted with M5 tapped holes on both sides for attaching the cover. Model example: HBLFSR5-C (mounting screws:HCBM).	HBLFSNF5
			HBLFSN5
			HBLFSN5-4
			HBLFSNB5
			HBLFSNM5
			CHBLFSN5
			HBLFSL5
			HBLFSLB5
			HBLFSLM5
			HBLFSR5
			HBLFSNK5
			HBLFSNE5
			HBLFSNT5
			HBLFSSW5
			HBLFSSWB5

■C-hole alteration (cover installation example)
Please specify alteration code -C.

HCBM5-10

Alterations

Code

Spec.

Applicable 90 degree Brackets

Applicable bolt
and nut set

SET
SST
(Stainless steel)
SEU
(Pre-assembly
spring nuts)
SSU
(Pre-assembly
spring nuts
stainless steel)
SEP
(Post-
assembly spring nuts)
SSP
(Post-assembly
spring nuts
stainless steel)
SEC
(
Bolts and
nuts with assembled washers)

Applicable bolts and nuts for attaching the 90 degree Brackets to the frame are included in the set. (Added to the 90 degree Brackets price)

(Example) When specifying HBLFSR5

	bolt		nut
Code	Model	Quantity	Model	Quantity
SET	CBM5-10	2	HNTT5-5	2
SST	SCB5-10		HNTTBS5-5
SEU	CBM5-10		HNTU5-5
SSU	SCB5-10		SHNTU5-5
SEP	CBM5-10		HNTP5-5
SSP	SCB5-10		SHNTP5-5
SEC	HCBST5-12		HNTT5-5

HBLFSNF5

HBLFSN5

HBLFSN5-4

HBLFSNB5

HBLFSNM5

CHBLFSN5

HBLFSL5

HBLFSLB5

HBLFSLM5

HBLFSR5

HBLFSNK5

HBLFSNE5

HBLFSNT5

HBLFSSW5

HBLFSSWB5

[ ! ]The bolts for the black anodized and cathodic electroplated (black) 90 degree Brackets aretheseHCBMTB (black trivalent chromate).
[ ! ]When specifying -SET, -SEU, or -SEP for 90 degree Brackets other than black anodized and cathodic electroplated (black), the included bolts are not RoHS compliant.

■Applicable bolt and nut set details (can be purchased separately)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	CBM5-10	iron	First in, first out	HNTT5-5	iron	none
SST	SCB5-10	stainless	First in, first out	HNTTBS5-5	stainless	none
SEU	CBM5-10	iron	First in, first out	HNTU5-5	iron	Yes
SSU	SCB5-10	stainless	First in, first out	SHNTU5-5	stainless	Yes
SEP	CBM5-10	iron	Later insertion	HNTP5-5	iron	Yes
SSP	SCB5-10	stainless	Later insertion	SHNTP5-5	stainless	Yes
SEC	HCBST5-12	Iron (with washer)	First in, first out	HNTT5-5	iron	none

How to Use of 90 degree Brackets

- This type has a protrusion that fits into the frame groove.
The protrusion acts as a rotation stopper during fastening work, making it easy to work with.

If you push the nut all the way in, the 90 degree Brackets and nut holes will align, eliminating the need for fine adjustment.
[NG]Short nuts, HNTM, HNTAM are not applicable.
Related images

Technical Information of 90 degree Brackets

■ For the squareness of the square90 degree Brackets, please refer to the squareness tolerance table .
■How to think about the 90 degree Brackets allowable load

5 Series (groove width 6 mm) - For single groove - Nut-fastened 90 degree Brackets Related image 1_Technical information

As shown in the diagram on the left, two frames are set up, a frame is placed between them, and two 90 degree Brackets are attached underneath, showing the allowable load per unit.
The allowable load here refers to the load that the 90 degree Brackets can maintain in position (without breaking or slipping) when all mounting holes on the 90 degree Brackets are fixed with bolts and a load is applied.

Similar Products of 90 degree Brackets

■90 degree Brackets with protrusions: The mounting surface has protrusions to prevent rotation.

Product name	Nut-fastened 90 degree Brackets	Reversible 90 degree Brackets with protrusion	90 degree Brackets with cover	Single rib 90 degree Brackets	90 degree Brackets with protrusion on one side
Product Photos					No protrusions on one side, can be connected to the plate
Material	ADC12	ADC12	ADC12	ADC12	ADC12
Features	The long protrusion serves as a nut stop, eliminating the need for fine adjustment of the nut position.	The mounting surface has a protrusion, making it easy to position during installation. This is the most conventional type.	This type is equipped with a dustproof cover, which prevents dust from accumulating inside and is excellent for hygiene.	This type has a rib (side) on only one side, making it easy to turn a hex wrench.	The protrusion is on one side only, which is useful when connecting frames/plates.
Representative model	This product	HBLFSN5	HBLFSNT5	HBLFSL5	HBLFSNK5
