Tabbed Bracket with Slotted Hole - 6 Series, 8mm Slot, 1 Slot

Brand :

MISUMI

Caution

Product Description

Since one side has a slotted hole, the bolt head does not interfere even if using captive washer hex socket bolts.

Dimensional Drawing of 90 degree Brackets

HBLFSH6

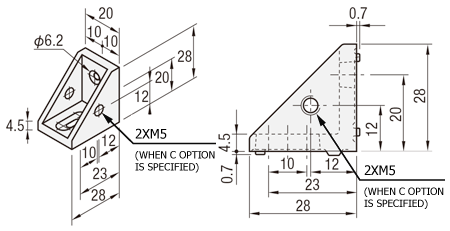

6 Series (8mm Groove Width) - For Single Row Groove - Single-Sided Slot 90 degree Brackets: Related Images

[ ! ]For 90 degree Brackets squareness, please refer to the squareness tolerance table .

[M] 90 degree Brackets Material: ADC12 [S] Surface treatment: None

Specification Table of 90 degree Brackets

90 degree Brackets Model

HBLFSH6

・The price list below >is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

[ ! ]Bolts and nuts are not included with the 90 degree Brackets.
Please check the table below for compatible bolts and nuts.
If you would like to purchase a bolt and nut set, please select it from the "Accessories" filter.
For detailed specifications, please check the individual product links under "Applicable bolt and nut set" (can be purchased individually).

Model	Mass (g)	Compatible bolts and T-nuts				Allowable load (N)
Type	Mass (g)	bolt	Quantity	T-nut	Quantity	Allowable load (N)
HBLFSH6	12	CBM6-12	2	HNTT6-6	2	1176

Additional Work of 90 degree Brackets

90 degree Brackets Model	−	(C・SET・SST・SEU・SSU・SEP・SSP・SEC)
HBLFSH6	−	SET
HBLFSH6	−	C-SET

Alterations	Code	Spec.	Applicable 90 degree Brackets
Additional cover mounting holes	C	The 90 degree Brackets can be fitted with M5 tapped holes >on both sides for attaching the cover. Model example: HBLFSNT6-C (mounting screws:HCBM).	HBLFSN6
			HBLFSN6-5
			HBLFSNB6
			HBLFSNM6
			CHBLFSN6
			HBLFS6
			HBLFSB6
			HBLFSL6
			HBLFSR6
			HBLFSNK6
			HBLFSNE6
			HBLFSH6

Usage example

■Cover installation example
● Please specify alteration code -C.

HCBM5-10

Alterations

Code

Spec.

Applicable 90 degree Brackets

Applicable
bolts and nuts
included

SET
SST
(Stainless steel)
SEU
(Pre-assembly spring nut)
SSU
(Pre-assembly spring nut)
(Stainless steel)
SEP
(Post-assembly spring nut)
SSP
(Post-assembly spring nut)
(Stainless steel)
SEC
(Washer assembled bolt/nut)

The set includes the applicable bolts and nuts for attaching the 90 degree Brackets to the frame.
(Added to the 90 degree Brackets price)

(Example) When specifying HBLFSNT6

	bolt		nut
Code	Model	Quantity	Model	Quantity
SET	CBM6-12	2	HNTT6-6	2
SST	SCB6-12		HNTTSN6-6
SEU	CBM6-12		HNTU6-6
SSU	SCB6-12		SHNTU6-6
SEP	CBM6-12		HNTP6-6
SSP	SCB6-12		SHNTP6-6

[ ! ]If you specify a product other than HBLFSNT6, please check the corresponding compatible bolts and nuts.

HBLFSN6

HBLFSN6-5

HBLFSNB6

HBLFSNM6

CHBLFSN6

HBLFS6

HBLFSB6

HBLFSL6

HBLFSR6

HBLFSNK6

HBLFSNE6

HBLFSH6

[ ! ]The bolts for the black anodized, cathodic electroplated (black) 90 degree Brackets aretheseHCBMTB (black trivalent chromate).
[ ! ]When specifying -SET, -SEU, or -SEP for 90 degree Brackets other than black anodized, cathodic electroplated (black), the included bolts are not RoHS compliant.

■Applicable bolt and nut set details (can be purchased separately)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	CBM6-12	iron	First in, first out	HNTT6-6	iron	none
SST	SCB6-12	stainless	First in, first out	HNTTSN6-6	stainless	none
SEU	CBM6-12	iron	First in, first out	HNTU6-6	iron	Yes
SSU	SCB6-12	stainless	First in, first out	SHNTU6-6	stainless	Yes
SEP	CBM6-12	iron	Later insertion	HNTP6-6	iron	Yes
SSP	SCB6-12	stainless	Later insertion	SHNTP6-6	stainless	Yes
SEC	HCBST6-15	Iron (with washer)	First in, first out	HNTT6-6	iron	none

How to Use of 90 degree Brackets

This type has a protrusion that fits into the frame groove.
The protrusion acts as a stopper during fastening work, making it easy to work with.
The bolt head will not interfere even when using a hex socket bolt with an integrated washer.

[ ! ]
Even when using hex socket head bolts with assembled washers, installation can be performed without
the bolt heads
interfering with each other.

Technical Information of 90 degree Brackets

■ For the squareness of the square 90 degree Brackets, please refer to the squareness tolerance table.

■How to think about the 90 degree Brackets allowable load

6 Series (8mm Groove Width) - For Single Row Groove - Single-Sided Slot 90 degree Brackets Related Image 1_Technical Information

As shown in the diagram on the left, two frames are set up, a frame is placed between them, and two 90 degree Brackets are attached underneath, showing the allowable load per unit.
The allowable load here refers to the load that the 90 degree Brackets can maintain in position (without breaking or slipping) when all mounting holes on the 90 degree Brackets are fixed with bolts and a load is applied.

Similar Products of 90 degree Brackets

■ 90 degree Brackets with protrusion

There is a protrusion on the mounting surface to prevent rotation.

Product name	Single-sided slotted 90 degree Brackets	Reversible 90 degree Brackets >with protrusion	Single rib 90 degree Brackets	Nut-fastened 90 degree Brackets	90 degree Brackets >with protrusion on one side	90 degree Brackets with cover
Product Photos					No protrusions on one side, can be connected to the plate
Material	ADC12	ADC12	ADC12	ADC12	ADC12	ADC12
Features	This type has an elongated hole on one side. The bolt head does not interfere even when using a washer-integrated bolt.	The mounting surface has a protrusion, making it easy to position during installation. This is the most conventional type.	This type has a rib (side) on only one side, making it easy to turn a hex wrench.	The long protrusion serves as a nut stop, eliminating the need for fine adjustment of the nut position.	The protrusion is on one side only, which is useful when connecting frames and plates.	This type is equipped with a dustproof cover, which prevents dust from accumulating inside and is excellent for hygiene.
Representative model	HBLFSH6 (this product)	HBLFSN6	HBLFSL6	HBLFSR6	HBLFSNK6	HBLFSNT6
