Frame End Caps - For 6 Series (Slot Width 8mm) Aluminum Frames
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
This is Frame cap for protecting frame end faces. Using with Aluminum Frame Series 6 (Slot width 8mm)

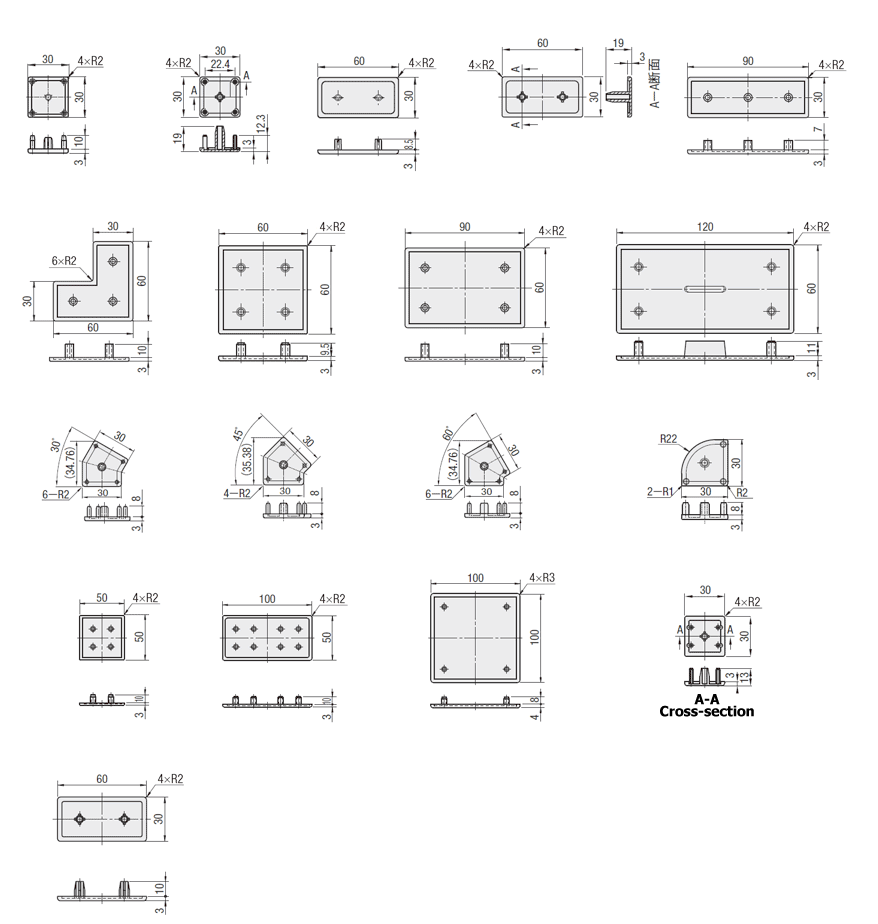

Dimensional Drawing of Frame Caps
HFC6-3030
HFCL6-3030
HFC6-3060
HFCL6−3060
HFC6-3090
HFC6-606030
HFC6-6060
HFC6-6090
HFC6-60120
HFC30A6
HFC45A6
HFC60A6
HFCR6-3030
HFC6-5050
HFC6-50100
HFC6-100100
GFC6-3030
GFC6-3060
[ ! ] The model numbers inredin the above outline drawing are new products with additional specifications. They are not listed in the paper catalog.
[ ! ]HFC and HFCL can be used with frames other than the GFS and GNFS series.
[ ! ]If you are using a GFS series frame, please select GFC or HFCD.
| Type | [M] Material |
| HFC GFC | polyamide |
| HFCL | Low Density Polyethylene |
Specification Table of Frame Caps
| Frame Caps Model | − | color |
| HFC30A6 | − | B |
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Model | color | correspondence | |
| Type | No. | Frame | |
| HFC6 | 3030 | B (black) S (light gray) | 6−3030 |
| 3060 | 6−3060 | ||
| 3090 | 6−3090 | ||
| 606030 | 6−606030 | ||
| 6060 | 6−6060 | ||
| 6090 | 6−6090 | ||
| 60120 | 6−60120 | ||
| HFCL6 | 3030 | 6−3030 | |
| 3060 | 6−3060 | ||
| HFC30A6 | 30A6−30 | ||
| HFC45A6 | 45A6−30 | ||
| HFC60A6 | 60A6−30 | ||
| HFCR6-3030 | 6−3030 | ||
| HFC6 | 5050 | 6−5050 | |
| 50100 | 6−50100 | ||
| 100100 | 6−100100 | ||
| GFC6 | 3030 | GFS6-3030 | |
| 3060 | GFS6-3060 | ||
Aluminum Frame Compatibility Chart of Frame Caps
| Frame Type | Compatible Frame Caps | ||
| Model | color | explanation | |
| HFS6-3030 | HFC6-3030-B | black | Standard type (black) |
| HFSF6-3030 | HFC6-3030-S | Light Grey | Standard type (light gray) |
| HFST6-3030 | HFCL6-3030-B | black | Long-legged type that won't easily fall off (black) |
| HFSH6-3030 | HFCL6-3030-S | Light Grey | Long-legged type that won't easily fall off (light gray) |
| HFSC6-3030 | |||
| HFSB6-3030 | |||
| HFSFB6-3030 | |||
| HFSTB6-3030 | |||
| EFS6-3030 | |||
| EFSF6-3030 | |||
| EFST6-3030 | |||
| EFSH6-3030 | |||
| EFSC6-3030 | |||
| EFSB6-3030 | |||
| EFSFB6-3030 | |||
| EFSTB6-3030 | |||
| NEFS6-3030 | |||
| NEFSF6-3030 | |||
| NEFST6-3030 | |||
| NEFSB6-3030 | |||
| HFSL6-3030 | |||
| NFSL6-3030 | |||
| HFSLB6-3030 | |||
| HFSV6-3030 | |||
| CAF6-3030 | |||
| HFSY6-3030 | |||
| HFS6-3060 | HFC6-3060-B | black | Standard type (black) |
| HFSF6-3060 | HFC6-3060-S | Light Grey | Standard type (light gray) |
| HFST6-3060 | HFCL6-3060-B | black | Long-legged type that won't easily fall off (black) |
| HFSH6-3060 | HFCL6-3060-S | Light Grey | Long-legged type that won't easily fall off (light gray) |
| HFSB6-3060 | |||
| EFS6-3060 | |||
| EFSF6-3060 | |||
| EFSH6-3060 | |||
| EFSB6-3060 | |||
| NEFS6-3060 | |||
| NEFSF6-3060 | |||
| NEFST6-3060 | |||
| NEFSB6-3060 | |||
| HFSL6-3060 | |||
| HFSLB6-3060 | |||
| NFSL6-3060 | |||
| HFSV6-3060 | |||
| CAF6-3060 | |||
| HFS6-6060 | HFC6-6060-B | black | Standard type (black) |
| HFSF6-6060 | HFC6-6060-S | Light Grey | Standard type (light gray) |
| HFST6-6060 | HFCL6-3060-B | black | Long-legged type that won't come off easily (black) 2 pieces |
| HFSB6-6060 | HFCL6-3060-S | Light Grey | Long-legged type that won't come off easily (light gray) 2 pieces |
| NFS6-6060 | |||
| NFSF6-6060 | |||
| NFSB6-6060 | |||
| HFSG6-6060 | |||
| CAF6-6060 | |||
| HFS6-3090 | HFC6-3090-B | black | Standard type (black) |
| EFSB6-3090 | HFC6-3090-S | Light Grey | Standard type (light gray) |
| NEFS6-3090 | |||
| HFS6-30120 | HFC6-3060-B | black | Standard type (black) 2 pieces |
| EFS6-30120 | HFC6-3060-S | Light Grey | Standard type (light gray) 2 pieces |
| NEFS6-30120 | HFCL6-3060-B | black | Long-legged type that won't come off easily (black) 2 pieces |
| EFSB6-30120 | HFCL6-3060-S | Light Grey | Long-legged type that won't come off easily (light gray) 2 pieces |
| EFS6-30300 | HFC6-3060-B | black | Standard type (black) |
| HFC6-3060-S | Light Grey | Standard type (light gray) | |
| HFCL6-3060-B | black | Long-legged type that won't easily fall off (black) | |
| HFCL6-3060-S | Light Grey | Long-legged type that won't easily fall off (light gray) | |
| HFS6-6090 | HFC6-6090-B | black | Standard type (black) |
| NEFS6-6090 | HFC6-6090-S | Light Grey | Standard type (light gray) |
| HFS6-60120 | HFC6-60120-B | black | Standard type (black) |
| NEFS6-60120 | HFC6-60120-S | Light Grey | Standard type (light gray) |
| HFS30A6-30 | HFC30A6-B | black | Standard type (black) |
| HFC30A6-S | Light Grey | Standard type (light gray) | |
| HFS45A6-30 | HFC45A6-B | black | Standard type (black) |
| HFC45A6-S | Light Grey | Standard type (light gray) | |
| HFS60A6-30 | HFC60A6-B | black | Standard type (black) |
| HFC60A6-S | Light Grey | Standard type (light gray) | |
| HFS45TR6-30 | none | - | - |
| HFS6-606030 | HFC6-606030-B | black | Standard type (black) |
| EFS6-606030 | HFC6-606030-S | Light Grey | Standard type (light gray) |
| NEFS6-606030 | |||
| HFSR6-3030 | HFCR6-3030-B | black | Standard type (black) |
| NFSR6-3030 | HFCR6-3030-S | Light Grey | Standard type (light gray) |
| HFS6-5050 | HFC6-5050-B | black | Standard type (black) |
| HFSF6-5050 | HFC6-5050-S | Light Grey | Standard type (light gray) |
| HFST6-5050 | |||
| HFSL6-5050 | |||
| NFS6-5050 | |||
| HFSB6-5050 | |||
| HFS6-50100 | HFC6-50100-B | black | Standard type (black) |
| HFSB6-50100 | HFC6-50100-S | Light Grey | Standard type (light gray) |
| NFS6-50100 | |||
| HFS6-100100 | HFC6-100100-B | black | Standard type (black) |
| HFSB6-100100 | HFC6-100100-S | Light Grey | Standard type (light gray) |
| NFS6-100100 | |||
| GNFS6-3030 | GFC6-3030-B | black | Standard type (black) |
| GFS6-3030 | GFC6-3030-S | Light Grey | Standard type (light gray) |
| GNFS6-3060 | GFC6-3060-B | black | Standard type (black) |
| GFS6-3060 | GFC6-3060-S | Light Grey | Standard type (light gray) |
For other types of 6 series Frame Capss, please refer to the following.
6 series (groove width 8mm) Frame Capss for aluminum frames High rigidity plate type ishere6 series (groove width 8mm) Frame Capss for aluminum frames Bolt fixing type ishere6 series (groove width 8mm) Corner 3-sided caps for 30-angle aluminum frames arehere6 series (groove width 8mm) End face plates for aluminum frames arehere
How to Use of Frame Caps
When using the aluminum frame HFS6-30120, use two pieces of HFC6-3060.
Technical Information of Frame Caps
How to make it flush
: Shorten the length of the aluminum frame by the thickness of the Frame Caps.

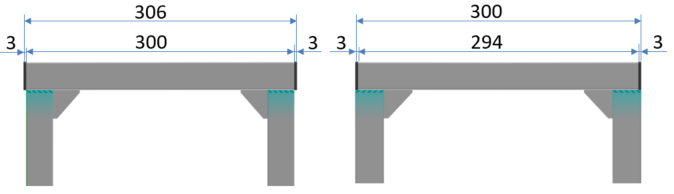

<Example: of Frame Caps connection: When connecting with one side 300 mm long>
A: To accommodate the thickness of the Frame Caps,
specify the protruding model as HFS6-3030-300 with a length of 300 mm.
B: The Frame Caps
is specified as HFS6-3030-294, which is flush with the surface and does not protrude, and is shorter by the thickness of the Frame Caps.
A: To accommodate the thickness of the Frame Caps,
specify the protruding model as HFS6-3030-300 with a length of 300 mm.
B: The Frame Caps
is specified as HFS6-3030-294, which is flush with the surface and does not protrude, and is shorter by the thickness of the Frame Caps.
A Frame Caps pops out
B Frame Caps is flush and
does not protrude

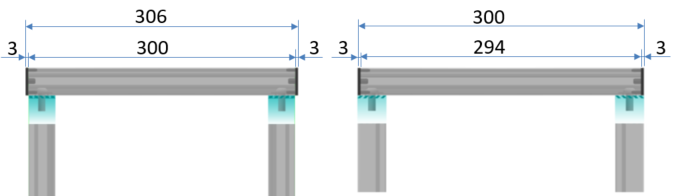

<Example: Screw joint connection: When connecting with one side 300 mm long>
C: For the thickness of the Frame Caps,
specify the protruding model HFS6-3030-300-RCV-LCV and 300 mm long wrench holes on the left and right.
D: For the Frame Caps, specify the model HFS6-3030-294-RCV-LCV-FR-FL, which does not protrude and is flush with
the Frame Caps, shortening it by the thickness of the Frame Caps, and specify the wrench holes and wrench hole shifts on the left and right.
C: For the thickness of the Frame Caps,
specify the protruding model HFS6-3030-300-RCV-LCV and 300 mm long wrench holes on the left and right.
D: For the Frame Caps, specify the model HFS6-3030-294-RCV-LCV-FR-FL, which does not protrude and is flush with
the Frame Caps, shortening it by the thickness of the Frame Caps, and specify the wrench holes and wrench hole shifts on the left and right.
C Frame Caps pops out
D Frame Capss are flush and
do not protrude
