Thick/Triangle Bracket - 6 Series, 8mm Slot, 2 Slots
Caution
Product Description
A 2-row groove type frame can be connected with a single bracket. The type has 4 mounting holes on one side. 8 bolts are used to connect the frame more firmly.

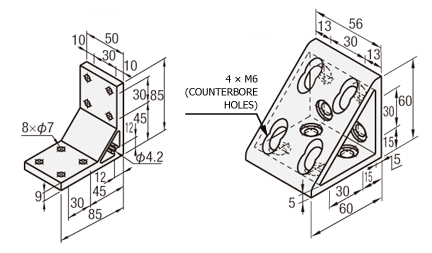

Dimensional Drawing of 90 degree Brackets
HBLTDW6
HBLDDW6
(no protrusion type)
Specification Table of 90 degree Brackets
| Model |
| HBLTDW6 |
・To check the latest price, click the "Check Price" button after confirming the model number.
[ ! ]Bolts and nuts are not included with the 90 degree Brackets.
Please check the table below for compatible bolts and nuts.
If you would like to purchase a bolt and nut set, please select it from the "Accessories" filter.
For detailed specifications, please check the individual product links under "Applicable bolt and nut set" (can be purchased individually).
| Model | Mass (g) | Compatible bolts and T-nuts | Allowable load (N) | |||
| bolt | Quantity | T-nut | Quantity | |||
| HBLTDW6 | 192 | CBM6-15 | 8 | HNTT6−6 | 8 | 2940 |
| HBLDDW6 | 190 | CBM6-12 | 8 | 8 | 2940 | |
Additional Work of 90 degree Brackets
| Model | − | (C・SET・SST・SEU・SSU・SEP・SSP・SEC) |
| HBLTDW6 | − | SET |
| HBLTDW6 | − | C-SET |
| Alterations | Code | Spec. | Applicable 90 degree Brackets |
| Additional cover mounting holes | C | The 90 degree Brackets can be fitted with M5 tapped holes on both sides for attaching the cover. Model example: HBLTDW6-C (mounting screws:HCBM). | NBLTD6 |
| HBLTD6 | |||
| CHBLTD6 | |||
| HBLTD6-50 | |||
| HBLUD6 | |||
| HBLUD6-50 | |||
| HBLTDW6 |
| Alterations | Code | Spec. | Applicable 90 degree Brackets | ||||||||||||||||||||||||||||||
| Applicable bolts and nuts included | SET SST (Stainless steel) SEU (Pre-assembly spring nut) SSU (Pre-assembly spring nut) (Stainless steel) SEP (Post-assembly spring nut) SSP (Post-assembly spring nut) (Stainless steel) SEC (Washer assembled bolt/nut) | The set includes the applicable bolts and nuts for attaching the 90 degree Brackets to the frame. (Added to the 90 degree Brackets price) (Example) When specifying HBLTDW6
[ ! ]If you specify a product other than HBLTDW6, please check the corresponding compatible bolts and nuts. | - | ||||||||||||||||||||||||||||||
| NBLTD6 | |||||||||||||||||||||||||||||||||
| HBLTD6 | |||||||||||||||||||||||||||||||||
| HBLTDB6 | |||||||||||||||||||||||||||||||||
| CHBLTD6 | |||||||||||||||||||||||||||||||||
| HBLTD6-50 | |||||||||||||||||||||||||||||||||
| HBLUD6 | |||||||||||||||||||||||||||||||||
| HBLUDB6 | |||||||||||||||||||||||||||||||||
| HBLUD6-50 | |||||||||||||||||||||||||||||||||
| HBLTDW6 | |||||||||||||||||||||||||||||||||
| HBLDDW6 | |||||||||||||||||||||||||||||||||
! ]When specifying -SET, -SEU, or -SEP with a 90 degree Brackets other than the black anodized 90 degree Brackets, the included bolts are not RoHS compliant.
■ HBLTDW6 (extrusion type) compatible bolt and nut set details (can be purchased separately)
| Additional machining model | bolt | nut | ||||
|---|---|---|---|---|---|---|
| Model | Material | type | Model | Material | Stopper | |
| SET | CBM6-15 | iron | First in, first out | HNTT6-6 | iron | none |
| SST | SCB6-15 | stainless | First in, first out | HNTTSN6-6 | stainless | none |
| SEU | CBM6-15 | iron | First in, first out | HNTU6-6 | iron | Yes |
| SSU | SCB6-15 | stainless | First in, first out | SHNTU6-6 | stainless | Yes |
| SEP | CBM6-15 | iron | Later insertion | HNTP6-6 | iron | Yes |
| SSP | SCB6-15 | stainless | Later insertion | SHNTP6-6 | stainless | Yes |
■ Details of the HBLDDW6 (triangle type) compatible bolt and nut set (can be purchased separately)
| Additional machining model | bolt | nut | ||||
|---|---|---|---|---|---|---|
| Model | Material | type | Model | Material | Stopper | |
| SET | CBM6-12 | iron | First in, first out | HNTT6-6 | iron | none |
| SST | SCB6-12 | stainless | First in, first out | HNTTSN6-6 | stainless | none |
| SEU | CBM6-12 | iron | First in, first out | HNTU6-6 | iron | Yes |
| SSU | SCB6-12 | stainless | First in, first out | SHNTU6-6 | stainless | Yes |
| SEP | CBM6-12 | iron | Later insertion | HNTP6-6 | iron | Yes |
| SSP | SCB6-12 | stainless | Later insertion | SHNTP6-6 | stainless | Yes |
How to Use of 90 degree Brackets
・HBLDDW6 (triangle type)
Similar Products of 90 degree Brackets
■6 Series (groove width 8mm) - For multiple grooves - Extrusion type 90 degree Brackets
| Product name | Thick/Triangle 90 degree Brackets | Thick extruded 90 degree Brackets | Extra-thick extruded 90 degree Brackets | Thin 90 degree Brackets |
|---|---|---|---|---|
| Product Photos |
|
|
|
|
| Features | This type has four mounting holes on one side. Eight bolts are used, allowing for a more secure connection to the frame. | This type is made of the same material as the aluminum frame and has been anodized. It is effective when you want to unify the appearance with the frame. | The number of bolts is the same as that of the thick 90 degree Brackets, allowing for a stronger connection. | This 90 degree Brackets does not protrude from the frame when cross-connecting, making it suitable for use in tight spaces. |
| Allowable load (N) | 2940 (2 rows) / 4116 (3 rows) | 1960 (2 rows) / 2744 (3 rows) | 1960 (2 rows) / 2744 (3 rows) | 1568 (2 rows) / 2352 (3 rows) |
| For 2 row grooves | This product | For 30/60 square/50 square | For 30/60 square/50 square | For 30/50/60/90 squares |
| For 3-row/4-row grooves | For 90 square/100 square | For 90 square | For 90 square/100 square |
■Difference between extrusion type 90 degree Brackets and protrusion type 90 degree Brackets
| [This product] Extrusion type 90 degree Brackets
| · The extrusion 90 degree Brackets is made of A6N01SS-T5 aluminum extrusion material. The surface is anodized. · Effective when you want to unify the appearance with the frame. It is designed to prevent dust accumulation. · It is stronger than 90 degree Brackets with protrusions, making it ideal for areas where strength is required. |
| 90 degree Brackets with protrusion for double grooves
| · Protrusion 90 degree Brackets are molded from ADC12 material. They are generally not anodized and are less expensive than extrusion 90 degree Brackets of the same size. · The protrusions act as a rotation stopper during fastening work, making them easier to work with. · There are various types of 90 degree Brackets with additional functions available. |
Technical Information of 90 degree Brackets
■ Perpendicularity
Please check the squareness tolerance table for the 90 degree Brackets's squareness .
■ 90 degree Brackets allowable load concept
The allowable load here refers to the load that the 90 degree Brackets can maintain in position (without breaking or slipping) when all mounting holes on the 90 degree Brackets are fixed with bolts and a load is applied.
■ Mechanical properties of aluminum frame material (JIS standard reference)
| Material (JIS symbol) | A6N01SS-T5 |
|---|---|
| Tensile strength (N/mm2) | 245 or more |
| Yield strength (N/mm2) | 205 or more |
| Modulus of elasticity (N/mm2) | 69972 |
| Brinell hardness (HB) | 88 |
| Surface Treatment | Anodized 9μm or more |
