Free Size Control Panel Box Thick Plate Type, FTA Series
Brand :
MISUMI
Caution
- This product will temporarily change the handle to Nitto Kogyo (H-85) only for single-open type with W dimension 799 or less.
Product Description
Specifiable sizes in plate thickness of 2.3 mm
Configurable Sizes and Plate Thickness of 2.3 mm
· FSA control panel box with a plate thickness of 2.3 mm.
· Tapping can be done on all 7 surfaces including the intermediate plate.

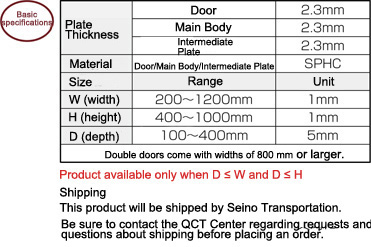

Specification Table
Disclaimer on Lead Time
The working days for this product do not include weekends or public holidays.
Check our WOS (Web Order System) for shipping date details.
The working days for this product do not include weekends or public holidays.
Check our WOS (Web Order System) for shipping date details.
| D | W H | Normal Unit Price | |||||||||
| 200 to 299 | 300 to 399 | 400 to 499 | 500 to 599 | 600 to 699 | 700 to 799 | 800 to 899 | 900 to 1,000 | 1,001 to 1,100 | 1,101 to 1,200 | ||
| 100 to 155 | 200 to 299 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー |
| 300 to 399 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー | |
| 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ー | ー | ー | |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 160 to 195 | 200 to 299 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー |
| 300 to 399 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー | |
| 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ー | ー | ー | |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 200 to 245 | 200 to 299 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー |
| 300 to 399 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー | |
| 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ー | ー | ー | |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 250 to 295 | 200 to 299 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー |
| 300 to 399 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー | |
| 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ー | ー | ー | |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 300 to 350 | 200 to 299 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー |
| 300 to 399 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー | |
| 400 to 499 | ー | ○ | ○ | ○ | ○ | ○ | ○ | ー | ー | ー | |
| 500 to 599 | ー | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ー | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ー | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ー | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ー | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 355 to 400 | 200 to 299 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー |
| 300 to 399 | ー | ー | ー | ー | ー | ー | ー | ー | ー | ー | |
| 400 to 499 | ー | ー | ○ | ○ | ○ | ○ | ○ | ー | ー | ー | |
| 500 to 599 | ー | ー | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ー | ー | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ー | ー | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ー | ー | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ー | ー | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |

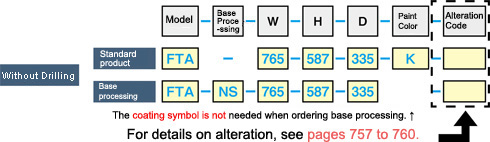

Base Processing
Details of MISUMI's Base Processing Service
Packing Type
Difference between Base Processing and Undercoating
Series Enabling Base Processing
● R Series Boxes
| Product Series/Shape | Opening and Closing Method | Product Model | Processing Method | Listed Page |
|---|---|---|---|---|
| Standard Steel Free-Standing Panel Type | Handle | RJSA | Zinc Phosphate Coating |  |
| Steel Handle Hinged Lock Type | Handle | RSAU | Ferric Coating | |
| Steel Handle + 2-Point Screw Type | Handle | RSH | Ferric Coating | |
| Steel Snap Lock Non-Draining Type | Snap Lock | RSC | Ferric Coating | |
| Steel Snap Lock Draining Type | Snap Lock | RSB | Ferric Coating | |
| Steel 4-Point Screw Type | Screw-Mount | RSDX | Ferric Coating | |
| Steel Relay Box/Fastened with Screws | Screw-Mount | RTE | Ferric Coating | |
● F Series Control Panel Boxes
| Product Series/Shape | Opening and Closing Method | Product Model | Processing Method | Listed Page |
|---|---|---|---|---|
| Standard Steel Free-Standing Panel Type Handle | Handle | HJSA | Zinc Phosphate Coating | |
| Steel Depth Compatible Board Type | Handle | FDLA | Zinc Phosphate Coating | |
| Free-Standing Steel Panel Box Quick Delivery Type | Handle | FJSA | Zinc Phosphate Coating | |
| Steel Frame Compatible with HJSA Series | - | HSCB | Zinc Phosphate Coating | |
| Steel Frame Compatible with FJSA Series | - | FSCB | Zinc Phosphate Coating | |
| Standard Type | Handle | FSA | Zinc Phosphate Coating | |
| Door Intermediate Plate | Handle | FST | Zinc Phosphate Coating | |
| Space-Saving Double Door Type | Handle | XASF, etc. | Zinc Phosphate Coating | |
| Thick Plate Type | Handle | FTA | Zinc Phosphate Coating | |
| Standard Type | Snap Lock | FSB | Zinc Phosphate Coating | |
| Control Panel Box without Intermediate Plate | Snap Lock | RFSB, RFSP | Zinc Phosphate Coating | |
| Control Panel Box without Draining | Snap Lock | FSP | Zinc Phosphate Coating | |
| Side handle | Side handle | FSG, FSE | Zinc Phosphate Coating | |
| Screw Fastening Control Panel Box | Screw-Mount | FSD | Zinc Phosphate Coating | |
| Medium Screw Type/Basic Screw Type | Screw-Mount | FSTM, FSTR, FSTX | Zinc Phosphate Coating | |
| Combined Type | Screw-Mount | FCS | Zinc Phosphate Coating | |
| Control Panel Box without Door | - | FSF | Zinc Phosphate Coating | |
Caution
Neither the base processing nor the undercoating are rustproof.
Rust may occur in a short period depending on the environment in which this product is stored. Apply a top coat without delay.
Rust may occur in a short period depending on the environment in which this product is stored. Apply a top coat without delay.
