Free Size Stand, HSCB Series
Brand :
MISUMI
Caution
Product Description
This is a machine base compatible with the RJSA and HJSA series free-standing enclosures. Excellent opening/closing operability of the enclosure door.
Configurable Size Frame
with Width Specifiable in Increments of 1 mm
· RJSA, HJSA series free-standing distribution box is compatible with the frame.
· Also compatible with free-standing distribution boxes from commercial manufacturers.(Note the main body D size)

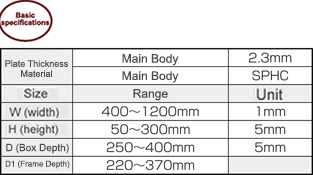

· 2.3 mm plate thickness has a unique structure realizing sufficient robustness.
· Ships within a minimum of 3 days with or without wire entry port drilling.* 1
· There is a risk of falling over in the event of a storm or earthquake, depending on the weight and position of the equipment installed on free standing panels.
· Take fall prevention countermeasures as necessary in addition to the specified anchor bolt.
* 1: Shipping time may vary depending on the nature of the machining and the number of units.
Specification Table
| Alteration Code | Machining Details | ¥ Machining Unit Price |

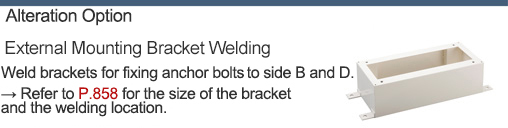

| CB | External mounting bracket welded to B/D surface | － |
| Alteration Code | Machining Details | ¥ Machining Unit Price | |

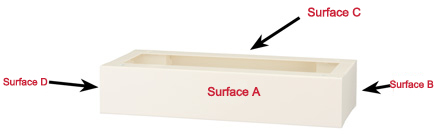

| Machining Details | Opening | ||
| S | Short Side Only | B | － |
| L | Long Side Only | A | － |
| SS | 2 Short Sides | BandD | － |
| LL | 2 Long Sides | AandC | － |
| SL | Long and Short Sides | AB | － |
| LS | Long and Short Sides | AD | － |
| EL | 3 Sides Other Than Short Side | ABC | － |
| ES | 3 Sides Other Than Long Side | ABD | － |
| AL | All 4 Surfaces Machined | ABCD | － |
Disclaimer on Lead Time
The working days for this product do not include weekends or public holidays.
Check our WOS (Web Order System) for shipping date details.
The working days for this product do not include weekends or public holidays.
Check our WOS (Web Order System) for shipping date details.

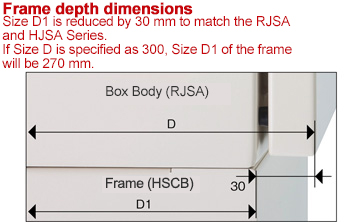

| D | D1 | W H | ¥ Normal Unit Price | |||||||
| 400 to 499 | 500 to 599 | 600 to 699 | 700 to 799 | 800 to 899 | 900 to 1,000 | 1,001 to 1,100 | 1,101 to 1,200 | |||
| 250 to 295 | 220 to 265 | 50 to 95 | － | － | － | － | － | － | － | － |
| 100 to 145 | － | － | － | － | － | － | － | － | ||
| 150 to 195 | － | － | － | － | － | － | － | － | ||
| 200 to 245 | － | － | － | － | － | － | － | － | ||
| 250 to 300 | － | － | － | － | － | － | － | － | ||
| 300 to 350 | 270 to 320 | 50 to 95 | － | － | － | － | － | － | － | － |
| 100 to 145 | － | － | － | － | － | － | － | － | ||
| 150 to 195 | － | － | － | － | － | － | － | － | ||
| 200 to 245 | － | － | － | － | － | － | － | － | ||
| 250 to 300 | － | － | － | － | － | － | － | － | ||
| 355 to 400 | 325 to 370 | 50 to 95 | － | － | － | － | － | － | － | － |
| 100 to 145 | － | － | － | － | － | － | － | － | ||
| 150 to 195 | － | － | － | － | － | － | － | － | ||
| 200 to 245 | － | － | － | － | － | － | － | － | ||
| 250 to 300 | － | － | － | － | － | － | － | － | ||
