Free-Size Control Board Box Space Saving Compatible Double Door Type
Brand :
MISUMI
Caution
Product Description
- Free-Size Control Board Box Space Saving Compatible Double Door Type from MISUMI.
- Electrical box can be select 3 colors, K: Cream (Approximate Munsell Value 2.5Y9/1), G: Gray (Approximate Munsell Value 5Y7/1) and E (5Y8/1)
- Main body plate thickness can be select 1.6mm or 2.3mm.
- Dimension width (W) of electrical box can be configure up to 799 mm by 1mm incremental.
- Dimension height (H) of electrical box can be configure up to 1000 mm by 1mm incremental.
- Dimension depth (D) of electrical box can be configure up to 400 mm by 5mm incremental.

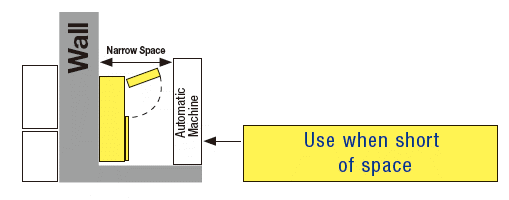

· Limited space with a single door type prevents the door from opening. We handle these issues.
· Custom order sizes that were previously unavailable can now be easily obtained.
· Tapping and boss machining can be done on all 7 surfaces including the intermediate plate.
· Custom order sizes that were previously unavailable can now be easily obtained.
· Tapping and boss machining can be done on all 7 surfaces including the intermediate plate.
[Basic Specifications]| Plate Thickness | Door | 1.6 or 2.3 |
| Main Body | 1.6 or 2.3 | |
| Intermediate Plate | 2.3 | |
| Material | Door / Main Body / Intermediate Plate | SPHC |
| Size | Range | Unit |
| W | 600 to 799 | 1 |
| H | 400 to 1,000 | 1 |
| D | 100 to 400 | 5 |
Units (mm)
Product available only when D ≤ W and D ≤ H
Product available only when D ≤ W and D ≤ H
Shipping
This product is shipped via Seino Transportation. For questions or requests regarding shipping, be sure to contact the QCT Center when placing your order.
Additional Work*1
*1 The addition of a drawing holder as an option for alterations is not possible with the double opening X Series because the mounting surface is too narrow.
Specification Table
| Series (Body Thickness 1.6 mm) | XASF | XPSF | XHSF | XJSF | |||||
| D | W | 600 to 699 | 700 to 799 | 600 to 699 | 700 to 799 | 600 to 699 | 700 to 799 | 600 to 699 | 700 to 799 |
| H | |||||||||
| 100 to 155 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | − | − |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 160 to 195 | 400 and up499 | ○ | ○ | ○ | ○ | ○ | ○ | − | − |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 200 to 245 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | − | − |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 250 to 295 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 300 to 350 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 355 to 400 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| Series (Body Thickness 2.3 mm) | XATF | XPTF | XHTF | XJTF | |||||
| D | W | 600 to 699 | 700 to 799 | 600 to 699 | 700 to 799 | 600 to 699 | 700 to 799 | 600 to 699 | 700 to 799 |
| H | |||||||||
| 100 to 155 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | − | − |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 160 to 195 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | − | − |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 200 to 245 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | − | − |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | − | − | |
| 250 to 295 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 300 to 350 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 355 to 400 | 400 to 499 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| 500 to 599 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 600 to 699 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 700 to 799 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 800 to 899 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
| 900 to 1,000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
Usage Example
Base Processing
Details of MISUMI's Base Processing Service
Packing Type
Difference between Base Processing and Undercoating
Series Enabling Base Processing
● R Series Boxes
| Product Series/Shape | Opening and Closing Method | Product Model | Processing Method | Listed Page |
|---|---|---|---|---|
| Standard Steel Free-Standing Panel Type | Handle | RJSA | Zinc Phosphate Coating |  |
| Steel Handle Hinged Lock Type | Handle | RSAU | Ferric Coating | |
| Steel Handle + 2-Point Screw Type | Handle | RSH | Ferric Coating | |
| Steel Snap Lock Non-Draining Type | Snap Lock | RSC | Ferric Coating | |
| Steel Snap Lock Draining Type | Snap Lock | RSB | Ferric Coating | |
| Steel 4-Point Screw Type | Screw-Mount | RSDX | Ferric Coating | |
| Steel Relay Box/Fastened with Screws | Screw-Mount | RTE | Ferric Coating | |
● F Series Control Panel Boxes
| Product Series/Shape | Opening and Closing Method | Product Model | Processing Method | Listed Page |
|---|---|---|---|---|
| Standard Steel Free-Standing Panel Type Handle | Handle | HJSA | Zinc Phosphate Coating | |
| Steel Depth Compatible Board Type | Handle | FDLA | Zinc Phosphate Coating | |
| Free-Standing Steel Panel Box Quick Delivery Type | Handle | FJSA | Zinc Phosphate Coating | |
| Steel Frame Compatible with HJSA Series | - | HSCB | Zinc Phosphate Coating | |
| Steel Frames Compatible with FJSA Series | - | FSCB | Zinc Phosphate Coating | |
| Standard Type | Handle | FSA | Zinc Phosphate Coating | |
| Door Intermediate Plate | Handle | FST | Zinc Phosphate Coating | |
| Space-Saving Double Door Type | Handle | XASF, etc. | Zinc Phosphate Coating | |
| Thick Plate Type | Handle | FTA | Zinc Phosphate Coating | |
| Standard Type | Snap Lock | FSB | Zinc Phosphate Coating | |
| Control Panel Box without Intermediate Plate | Snap Lock | RFSB, RFSP | Zinc Phosphate Coating | |
| Control Panel Box without Draining | Snap Lock | FSP | Zinc Phosphate Coating | |
| Side handle | Side handle | FSG, FSE | Zinc Phosphate Coating | |
| Screw Fastening Control Panel Box | Screw-Mount | FSD | Zinc Phosphate Coating | |
| Medium Screw Type/Basic Screw Type | Screw-Mount | FSTM, FSTR, FSTX | Zinc Phosphate Coating | |
| Combined Type | Screw-Mount | FCS | Zinc Phosphate Coating | |
| Control Panel Box without Door | - | FSF | Zinc Phosphate Coating | |
Caution
Neither the base processing nor the undercoating are rustproof.
Rust may occur in a short period depending on the environment in which this product is stored. Apply a top coat without delay.
Rust may occur in a short period depending on the environment in which this product is stored. Apply a top coat without delay.
