Keyless High Torque Timing Pulleys - S5M - MechaLock Standard Type Incorporated (with Centering Function)
Brand :
MISUMI
Caution
- Regarding RoHS compliance: The products are RoHS non-compliant only when alteration BMC is selected. The products are RoHS-compliant when BMC is not selected. As some parts used in the alteration are RoHS non-compliant, the RoHS notation on this page has been changed to non-compliant. "Non-compliant" is also indicated in the certificate due to information on the left.
- Please note that the swaged flange options, NFC, RFC, and LFC, are not reflected in the CAD data.
Product Description
[Material]
· Pulley: Extra super duralumin aluminum alloy, aluminum alloy, S45C equivalent
· Flange: Aluminum alloy, SPCC
· MegaLock: Aluminum alloy, S45C equivalent
[Surface treatment]
· Clear anodize, hard clear anodize (firm hardness 300HV~), electroless nickel plating, black oxide
[Related Products]
· Timing belt High Torque Timing Belt, Long Timing Belts-Polyurethane, Open End Belts/Polyurethane/Chloroprene Rubber
· Idler Idler with Teeth Center Bearing, Idler with Teeth Both Sides Bearing, Idler - Backside Tensioning Center Bearing, Idler - Backside Tensioning Both Sides Bearing
Dimensional Drawing
■S5M Type
Tooth groove dimensions slightly
vary according to the number of
teeth. (Pitch: 5.0mm)
Standard Tooth Profile
HHAA
HHT□

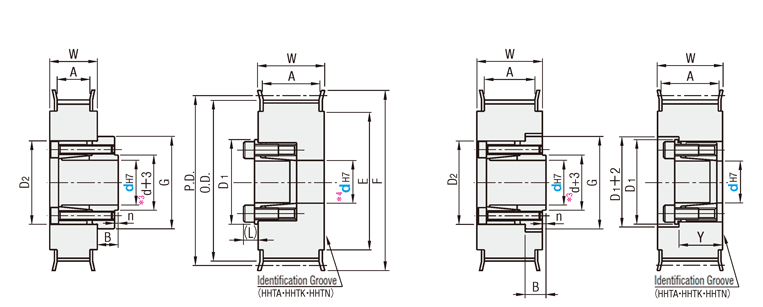

●Pulley Shape
Shape EShape F
Shape EShape F
■Belt Nominal Width / Dimensions
| mm | Nominal | ||
| S5M100 | S5M150 | S5M250 | |
| A | 11 | 17 | 27 |
| W | 16 | 22 | 32 |
*3. When d = 6, d + 2.5; and when d = 15, 16, d + 3.5.
*4. For the combination of nominal width and MechaLock inner diameter shown in Table 2,
the MechaLock mounting holes are not stepped holes,
but are through holes of the MechaLock outer diameter. ([ ! ] Shape E only)
[ ! ] Surface treatment may not be applied to the shaft bores.
[ ! ] Flange is installed.
[ ! ] For orders with no flange, please specify the alteration NFC.
[ ! ] Compatible with S5M type from Mitsuboshi Belting Ltd. as well as Bando Chemical Industries Ltd.
[ ! ] Unless otherwise specified, the dimension tolerance, except for the tooth section and F dimension,
conforms to JIS B 0405 Class m.
*4. For the combination of nominal width and MechaLock inner diameter shown in Table 2,
the MechaLock mounting holes are not stepped holes,
but are through holes of the MechaLock outer diameter. ([ ! ] Shape E only)
[ ! ] Surface treatment may not be applied to the shaft bores.
[ ! ] Flange is installed.
[ ! ] For orders with no flange, please specify the alteration NFC.
[ ! ] Compatible with S5M type from Mitsuboshi Belting Ltd. as well as Bando Chemical Industries Ltd.
[ ! ] Unless otherwise specified, the dimension tolerance, except for the tooth section and F dimension,
conforms to JIS B 0405 Class m.
■Dimensional Tolerances Without Command
[ ! ] Compliant with JIS B 0405
Class m (intermediate).
| Dimension Range | Tolerance (mm) | |
| Over | or Less | |
| 0.5 | 3 | ±0.1 |
| 3 | 6 | ±0.1 |
| 6 | 30 | ±0.2 |
| 30 | 120 | ±0.3 |
| 120 | 400 | ±0.5 |
Class m (intermediate).
| Type | Part Number | [ M ] Material＊1 | [ S ] Surface Treatment | [ A ] Accessory | ||||||
| Belt Width 10mm | Belt Width 15mm | Belt Width 25mm | Pulley | Flange | MechaLock | Pulley | Flange | MechaLock | List of MechaLocks by part number | |
| S5M100 | S5M150 | S5M250 | ||||||||
| HHAA | ● | ● | ● | 2000 Series Aluminum alloy | Aluminum alloy | 2000 Series Aluminum alloy | Clear Anodize | MLBA | ||
| HHTA | ● | ● | ● | Extra Super Duralumin Aluminum alloy | Aluminum alloy | S45C Equivalent | Clear Anodize | - | MLM | |
| HHTK | ● | ● | ● | Hard Clear Anodized＊2 | - | |||||
| HHTN | ● | ● | ● | Electroless nickel plating | - | |||||
| HHTAS | ● | ● | ● | SUS304 Equivalent | Clear Anodize | - | MLHS | |||
| HHTT | ● | ● | ● | S45C Equivalent | SPCC | S45C Equivalent | - | MLM | ||
| HHTM | ● | ● | ● | Black Oxide Coating | MLMB | |||||
| HHTP | ● | ● | ● | Electroless nickel plating | MLMP | |||||
| HHTS | ● | ● | - | SUS304 | SUS304 | SUS304 Equivalent | - | MLHS | ||
*2 Hard clear anodize: film hardness 300 HV or more
Table 1: Select Shaft Bore Dia.
| Type | HHAA | HHT□ | Y | ||||||||||||||
| HHTA・HHTK HHTN・HHTT | HHTM | HHTP | HHTAS HHTS | D1 | (L) | ||||||||||||
| MechaLocks | MLBA | MLM | MLMB | MLMP | MLHS | ||||||||||||
| dH7 | Maximum＊1 Allowable Torque (N・m) | Tightening＊2 Torque (N・m) | D2 | B | G | n | Maximum＊1 Allowable Torque (N・m) | Tightening＊2 Torque (N・m) | Maximum＊1 Allowable Torque (N・m) | Tightening＊2 Torque (N・m) | Maximum＊1 Allowable Torque (N・m) | Tightening＊2 Torque (N・m) | Maximum＊1 Allowable Torque (N・m) | Tightening＊2 Torque (N・m) | |||
| 6 | 4 | 0.9 | 17 | 4 | 20 | 0.5 | - | - | - | - | - | - | - | - | - | - | 14 |
| 8 | 6 | 0.9 | 19 | 5 | 22 | 0.5 | 19.6 | 3.9 | 19.6 | 3.2 | 16.6 | 3.9 | 10.7 | 2.7 | 23.5 | 6 | |
| 10 | 8 | 0.9 | 21 | 5 | 24 | 0.5 | 27.5 | 3.9 | 27.5 | 3.2 | 19.6 | 3.9 | 12.7 | 2.7 | 25.5 | 6 | |
| 12 | 12 | 0.9 | 24 | 6 | 27 | 1.0 | 44.1 | 3.9 | 44.1 | 3.2 | 36.2 | 3.9 | 24.5 | 2.7 | 28.5 | 6.5 | 22 |
| 14 | 18 | 0.9 | 26 | 6 | 29 | 1.0 | 63.7 | 3.9 | 63.7 | 3.2 | 50.9 | 3.9 | 28.4 | 2.7 | 30.5 | 6.5 | |
| 15 | 25 | 1.5 | 28 | 7 | 31 | 1.2 | 80.4 | 3.9 | 80.4 | 3.2 | 54.8 | 3.9 | 30.4 | 2.7 | 31.5 | 6.5 | |
| 16 | 26 | 1.5 | 29 | 7 | 32 | 1.2 | 83.3 | 3.9 | 83.3 | 3.2 | 58.8 | 3.9 | - | - | 33 | 6.5 | |
| 17 | - | - | - | - | - | - | 92.2 | 3.9 | 92.2 | 3.2 | 76.4 | 3.9 | - | - | 33.5 | 6.5 | |
| 18 | 95.1 | 3.9 | 95.1 | 3.2 | 80.3 | 3.9 | - | - | 34.5 | 6.5 | |||||||
| 19 | 98.1 | 3.9 | 98.1 | 3.2 | 85.2 | 3.9 | - | - | 35.5 | 6.5 | |||||||
| 20 | 216 | 8.8 | 216 | 7.5 | 183 | 8.8 | 122 | 5.6 | 42 | 8 | |||||||
| 22 | 255 | 8.8 | 255 | 7.5 | 201 | 8.8 | - | - | 44 | 8 | |||||||
| 24 | 363 | 8.8 | 363 | 7.5 | 252 | 8.8 | - | - | 46 | 8 | 27 | ||||||
| 25 | 392 | 8.8 | 392 | 7.5 | 264 | 8.8 | 153 | 5.6 | 47 | 8 | |||||||
| 28 | 441 | 8.8 | 441 | 7.5 | 295 | 8.8 | - | - | 50 | 8.5 | |||||||
| 30 | 500 | 8.8 | 500 | 7.5 | 396 | 8.8 | 230 | 5.6 | 52 | 8.5 | |||||||
| 32 | 530 | 8.8 | 530 | 7.5 | 423 | 8.8 | - | - | 54 | 8.5 | |||||||
| 35 | 883 | 15.7 | 883 | 12.7 | 548 | 15.7 | - | - | 62 | 10 | |||||||
＊2 MechaLock locking bolt tightening torque (N・m)
