Sprockets-60B Series
Brand :
MISUMI
Caution
Product Description
Sprockets are essential components in power transmission, especially chain drive systems. They offer a wide variety of sizes to choose from.
[Feature]
● Number of Teeth Minimum/Maximum : 9 and 30
● Shaft Bore Spec. : Pilot Bore and New JIS Key slot + Tap
● Shaft Bore Diameter Minimum/Maximum (mm.) : 19 and 50
● Material :
SP60B and BSP60B are S45C Equivalent (Spurs are Induction Hardened)
SSP60B - SUS304 Equivalent
● Surface treatment : Black Oxide only BSP60B
[Application]
Sprockets are commonly used in industrial machinery, such as chain conveyors.

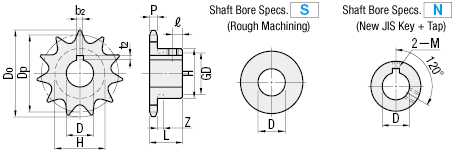

SP60B
[ ! ]Offset between tooth tip and keyway is ±0.5mm.
BSP60B
[ ! ]Offset between tooth tip and keyway is ±0.5mm.
SSP60B
[ ! ]Offset between tooth tip and keyway is ±0.5mm.

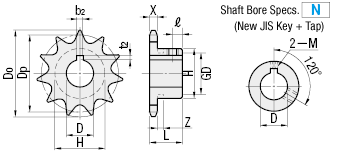

[ A ] Accessory: Set Screw
(Only for shaft bore specificationsⓃ)
[ ! ]Offset between tooth tip and keyway is ±0.5mm.
BSP60B
[ ! ]Offset between tooth tip and keyway is ±0.5mm.
SSP60B
[ ! ]Offset between tooth tip and keyway is ±0.5mm.
| Type | [ M ]Material | [ S ] Surface Treatment |
| SP60B | S45C Equivalent (Spurs are Induction Hardened) | － |
| BSP60B | S45C Equivalent (Spurs are Induction Hardened) | Black Oxide |
| SSP60B | SUS304 Equivalent | － |
(Only for shaft bore specificationsⓃ)
