High Torque Timing Pulleys S5M Type
Caution
- Please note that the swaged flange options, NFC, RFC, and LFC, are not reflected in the CAD data.
- For customers who are selecting timing pulley with tapped holes on the tooth surface. Depending on the shaft bore diameter selected by the customer, the accessory set screw may protrude and interfere with the belt. Please check whether the set screw protrudes from the bottom of the pulley root on the 3D preview or CAD. If it protrudes, please consider alteration SLH "Set screw length change" or changing to shape B. Thank you for choosing this product.
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
[Material]
· Pulley: Aluminum alloy, S45C equivalent, SUS304
· Flange: Aluminum alloy, SPCC, SUS304
[Surface treatment]
· Clear anodize, black anodize, hard clear anodize (firm hardness 300HV~), electroless nickel plating, black iron oxide coating
[Related Products]
· Timing belt High Torque Timing Belt, Long Timing Belts-Polyurethane, Open End Belts/Polyurethane/Chloroprene Rubber
· Idler Idler with Teeth Center Bearing, Idler with Teeth Both Sides Bearing, Idler - Backside Tensioning Center Bearing, Idler - Backside Tensioning Both Sides Bearing
Dimensions
■S5M
● Pulley Shape
Shape A
Shape B
Standard Tooth Profile
[ ! ]
[ ! ]
| mm | Nominal | |||
| S5M100 | S5M150 | S5M200 | S5M250 | |
| A | 11 | 17 | 22 | 27 |
| W | 16 | 22 | 27 | 32 |
| L | 28 | 34 | 39 | 44 |
| dH7 Shaft Bore I.D. | M (Coarse) | Accessory Set Screws | Number of Accessories Included |
| 5 | M3 | M3 × 3 | 2 |
| 6 to 12 | M4 | M4 × 3 | |
| 13 to 17 | M5 | M5 × 4 | |
| 18 to 30 | M6 | M6 × 5 | |
| 31 to 45 | M8 | M8 × 6 | |
| 46 to 70 | M10 | M10 × 8 |
| Dimension Range | Tolerance (㎜) | |
| Over | or Less | |
| 0.5 | 3 | ±0.1 |
| 3 | 6 | |
| 6 | 30 | ±0.2 |
| 30 | 120 | ±0.3 |
[ ! ] Shaft Bore Specs. H (Round hole), V or F (Stepped Hole), Y (Both Sides Stepped Hole) and WB (Two-stepped Hole) do not have tapped holes.
[ ! ] The tolerance of the tap position dimension from the boss end face and pulley end face is ±0.3.
[ ! ] Unless otherwise specified except for teeth and F dimensions, the dimension tolerance conforms to JIS B 0405 Class m.
[ ! ] Compatible with S5M type from Mitsuboshi Belting Ltd. as well as Bando Chemical Industries Ltd.

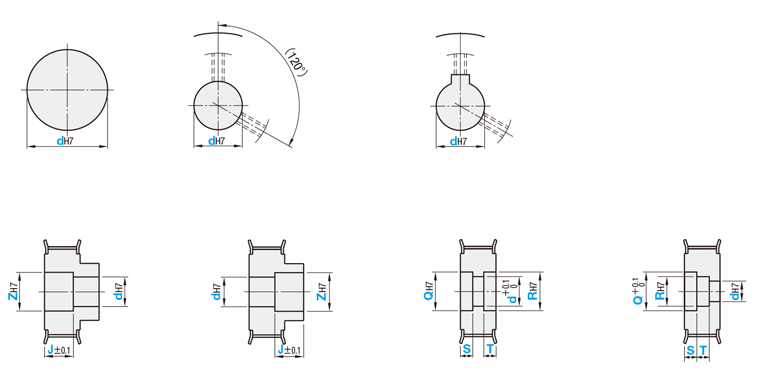

H round hole
P Round Hole + Tap
[ ! ] For A-Shape pulley, the screw holes are
set at around 120° to keep away from peaks.
N New JIS Keyway + Tap
C Old JIS Keyway + Tap
V Stepped Hole
[ ! ] Z - d ≥ 2
[ ! ] 2.0 ≤ J ≤ W－2.0
F Stepped Hole
(Counterbored Hole on the Hub Side)
[ ! ] Applicable to Shape B only
[ ! ] Z - d ≥ 2
[ ! ]2.0 ≤ J ≤ L－2.0
Y Both Ends Stepped Hole
[ ! ] Applicable to Shape A only
[ ! ]Q (R)－Y ≥ 2
[ ! ]S+T ≤ W－3.0
[ ! ]S (T) ≥ 3.0
WB Two-stepped hole
[ ! ] Applicable to Shape A only
[ ! ] Q－R ≥ 2
[ ! ] R－WB ≥ 2
[ ! ] S+T ≤ W－3.0
[ ! ] S (T) ≥ 3.0
| Nominal(N,C) | dH7 |
| 8～10(K) | ＋0.015 0 |
| 11～18 | ＋0.018 0 |
| 19～30 | ＋0.021 0 |
| 31～50 | ＋0.025 0 |
| 51～70 | ＋0.030 0 |
| Nominal(N) | bJS9 | t | ||
| 8～10 | 3 | ±0.0125 | 1.4 | ＋0.1 0 |
| 10K～12 | 4 | ±0.0150 | 1.8 | |
| 13～17 | 5 | 2.3 | ||
| 18～22 | 6 | 2.8 | ||
| 23～30 | 8 | ±0.0180 | 3.3 | ＋0.2 0 |
| 31～38 | 10 | |||
| 39～44 | 12 | ±0.0215 | ||
| 45～50 | 14 | 3.8 | ||
| 55 | 16 | 4.3 | ||
| Nominal(C) | bJS9 | t | ||
| 10～12 | 4 | ＋0.022 ＋0.010 | 1.5 | ＋0.1 0 |
| 15～20 | 5 | 2 | ||
| Shape | Hole | ||||||
| H | P | N(C) | V | F | Y | WB | |
| A | ○ | ○ | ○ | ○ | ‐ | ○ | ○ |
| B | ○ | ○ | ○ | ○ | ○ | ‐ | ‐ |
| Type | Belt Width | [M] Material | [S] Surface Treatment | [A] Accessory Set Screws | ||||
| 10 mm | 15 mm | 20 mm | 25 mm | Pulley | Flange | |||
| S5M100 | S5M150 | S5M200 | S5M250 | |||||
| HTPA | ● | ● | ● | ● | Aluminum alloy | Aluminum alloy | Clear Anodize | SUS304 |
| HTPB | ● | ● | ● | ● | Black Anodize | |||
| HTPK | ● | ● | ● | ● | Hard Clear Anodize | |||
| HTPN | ● | ● | ● | ● | Electroless nickel plating | |||
| HTPT | ● | ● | ● | ● | S45C Equivalent | SPCC | — | SCM435 (Black Oxide) |
| HTPM | ● | ● | ● | ● | Black Oxide Coating | |||
| HTPP | ● | ● | ● | ● | Electroless nickel plating | |||
| HTPS | ● | ● | ● | ● | SUS304 | SUS304 | — | SUS304 |
[ ! ] For orders with no flange, please specify the alteration NFC.
[ ! ] Due to vibrations during transportation, the set screw may become detached from the main body.
