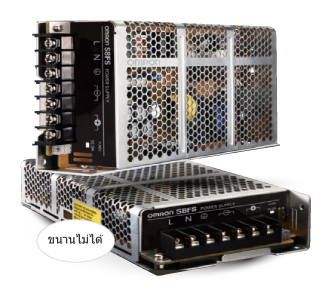

> แบบโครงเหล็กป้องกันสนิม ราคาถูก
|
|
|
> ความน่าเชื่อถือสูง ในราคาที่เหมาะสม
|
|
|
|
|
Lineup
|
44 Models
|
|
Input Voltage
|
85〜264VAC (15W-100W)
90〜264VAC (150W-350W)
|
|
Capacity
|
15〜350W
|
|
Standard Specification
|
|
|
Input Range
|
○
|
|
Output Range
|
○
|
|
Guarantee
|
３Years
|
|
Dimension/Installation
|
○
|
|
Inrush Current
|
○
|
|
Withstand Voltage
|
○
|
|
Quality of Appearance
|
○
(Aluminum)
|
|
Lightning Surge Withstand
|
○
|
|
Efficiency
|
○
|
|
Ripple Noise
|
○
|
|
Voltage Proof of Input Capacitor
|
○
|
|
|
|
|
|
|
|
|
Output Voltage
(VDC)
|
Power Rating
|
|
15 W
|
25 W
|
35 W
|
50 W
|
75 W
|
100 W
|
150 W
|
200 W
|
350 W
|
|
5 V
|
|
|
|
|
|
|
|
|
|
|
12 V
|
|
|
|
|
|
|
|
|
|
|
15 V
|
|
|
|
|
|
|
|
-
|
-
|
|
24 V
|
|
|
|
|
|
|
|
|
|
|
36 V
|
-
|
-
|
-
|
-
|
-
|
|
|
|
|
|
48 V
|
-
|
-
|
-
|
|
|
|
|
|
|
|
|
|
|
|
|
Code
|
Power Rating
|
|
015
|
15 W
|
|
025
|
25 W
|
|
035
|
35 W
|
|
050
|
50 W
|
|
075
|
75 W
|
|
100
|
100 W
|
|
150
|
150 W
|
|
200
|
200 W
|
|
350
|
350 W
|
|
|
Code
|
Output Voltage (VDC)
|
|
05
|
5 V
|
|
12
|
12 V
|
|
15
|
15 V
|
|
24
|
24 V
|
|
36
|
36 V
|
|
48
|
48 V
|
|
|
Code
|
Terminal Block Direction
|
|
Blank
|
|
Models with terminal block facing upward
|
|
|
|
J
|
|
Models with terminal block facing forward
|
|
|
|
D
|
|
Models with DIN rail
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Part No.
|
Capacity (W)
|
Output Voltage
(Single Only)
|
Input Voltage
|
Rated Output Current
(Single Only) (A)
|
Terminal Block Direction
|
Dimension
Height x Depth x Width
(mm)
|
Price
|
|
S8FS-C01524J
|
15
|
DC24V
|
AC-Dedicated
|
0.7
|
Facing Forward
|
51 x 92 x 28
|
598.-
|
|
S8FS-C05024
|
50
|
2.2
|
Facing Upward
|
97 x 129 x 38
|
822.-
|
|
S8FS-C15024
|
150
|
6.5
|
97 x 199 x 38
|
1,320.-
|
|
|
|
|
|
|
|
|
>
|
แบบโครงเหล็ก ฟังก์ชันสูง สำหรับแทนรุ่น S8GX-G
|
|
>
|
ประสิทธิภาพและความน่าเชื่อถือที่เหนือกว่า รองรับมาตรฐานที่หลากหลาย
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Output Voltage
(VDC)
|
Power Rating
|
|
15 W
|
30 W
|
50 W
|
100 W
|
150 W
|
300 W
|
600 W
|
|
5 V
|
|
|
|
|
|
-
|
-
|
|
12 V
|
|
|
|
|
|
|
|
|
15 V
|
|
|
|
|
|
|
|
|
24 V
|
|
|
|
|
|
|
|
|
48 V
|
-
|
-
|
-
|
-
|
|
|
|
|
|
|
|
|
|
(1) Power Rating
|
|
015: 15 W
|
|
030: 30 W
|
|
050: 50 W *1
|
|
100: 100 W *2
|
|
150: 150 W *3
|
|
300: 300 W
|
|
600: 600 W
|
|
|
(2) Output Voltage (VDC)
|
|
05: 5 V
|
|
12: 12 V
|
|
15: 15 V
|
|
24: 24 V
|
|
48: 48 V
|
|
|
(3) Configuration
|
|
C: With cover/Direct mounting
|
|
CD: With cover/DIN Rail mounting
|
|
|
(4) Option [1]
|
|
None: Screw terminal block
|
|
E: Connectors *4
|
|
|
(5) Option [2] *5
|
|
None: None
|
|
W: Parallel operation
|
|
|
(6) Option [3] *6
|
|
None: None
|
|
R: Remote control
|
|
|
(7) Option [4] *7
|
|
None: None
|
|
H: Extended hold time
|
|
|
|
|
|
|
|
|
|
Part No.
|
Capacity (W)
|
Output Voltage
(Single Only)
|
Input Voltage
|
Rated Output Current
(Single Only) (A)
|
Mounting Method
|
Dimension
Height x Depth x Width
(mm)
|
Price
|
|
S8FS-G05005CD
|
50
|
DC5V
|
AC-Dedicated
|
8
|
DIN Rail Mounting
|
102.5 x 137 x 42.2
|
2,154.-
|
|
S8FS-G15012C
|
150
|
DC12V
|
13
|
Direct Mounting
|
97 x 173.3 x 38
|
4,025.-
|
|
S8FS-G03015C
|
30
|
DC15V
|
2.4
|
82 x 113.3 x 35
|
2,553.-
|
|
S8FS-G10024CD-500
|
100
|
DC24V
|
4.5
|
DIN Rail Mounting
|
101.5 x 167 x 44.2
|
3,135.-
|
|
S8FS-G15048CD
|
150
|
DC48V
|
3.3
|
100.9 x 197 x 44.2
|
3,587.-
|
|
|
|
|
* โปรดตรวจสอบข้อมูลปัจจุบันของ สเปค ราคา และวันจัดส่งจากเว็บไซต์อีกครั้ง
|
|
|
|
|
|
|
|
