Pin Gauge EX Series (0.001 mm increment)
Brand :
EISEN
Caution
Product Description
Feature

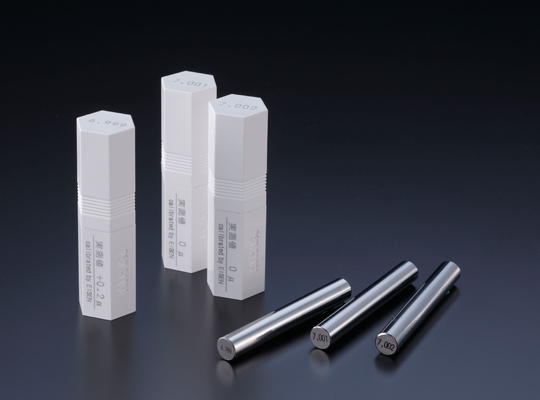

EISEN PIN GAUGE EX Series made in Japan
Used to measure inner diameter starts from 0.201 mm (0.001 mm increment).
All sizes are available
Specification
Diameter : 0.201 - 9.999 mm (Tolerance ±0.5μm, Class 0)
Product is packed inside hexagon case.
Size is engraved on product which has diameter 1.00 mm or more.
Actual measure data is engraved on product case (only class 0)
Hardness : 58 HRC or more
Material :
Size 0.20 - 0.99 mm made from SKH51
Size 1.00 - 10.00 mm made from SUJ2
Feature
- EISEN PIN GAUGE EX Series made in Japan
- Used to measure inner diameter starts from 0.201 mm (0.001 mm increment).
- All sizes are available
Specification
- Diameter : 0.201 - 9.999 mm (Tolerance ±0.5μm, Class 0)
Remark
- Product is packed inside hexagon case.
- Size is engraved on product which has diameter 1.00 mm or more.
- Actual measure data is engraved on product case (only class 0)
Hardness : 58 HRC or more
Material :
Size 0.20 - 0.99 mm made from SKH51
Size 1.00 - 10.00 mm made from SUJ2
Maker catalog Click
