Pin Gauge ECP Series start from 0.205 mm (0.01 mm increment)
Brand :
EISEN
Caution
Product Description
Feature
- EISEN PIN GAUGE ECP Series made in Japan
- Used to measure inner diameter starts from 0.205 mm (0.01 mm increment) ex 0.205, 0.215, 0.225 mm.
- All sizes are available
Specification
- Diameter : 0.205 - 10.005 mm (Tolerance ±0.5μm, Class 0)
- Diameter : 10.015 - 15.005 mm (Tolerance ±1.5μm, Class 1)
Remark

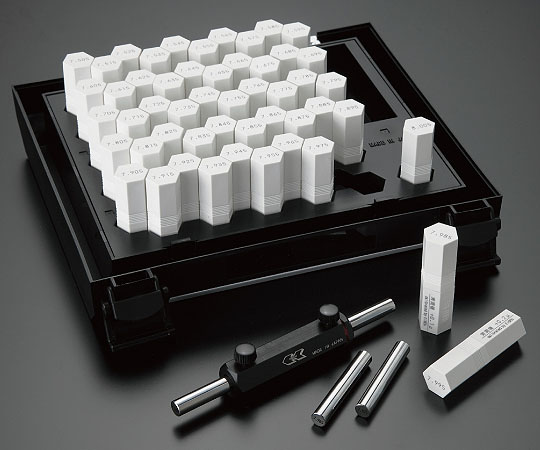

- Product is packed inside hexagon case.
- Size is engraved on product which has diameter 1.00 mm or more.
- Actual measure data is engraved on product case (only class 0)
Hardness : 58 HRC or more
Material :
Size 0.20 - 0.99 mm made from SKH51
Size 1.00 - 10.00 mm made from SUJ2
Feature
- EISEN PIN GAUGE ECP Series made in Japan
- Used to measure inner diameter starts from 0.205 mm (0.01 mm increment) ex 0.205, 0.215, 0.225 mm.
- All sizes are available
Specification
- Diameter : 0.205 - 10.005 mm (Tolerance ±0.5μm, Class 0)
- Diameter : 10.015 - 15.005 mm (Tolerance ±1.5μm, Class 1)
Remark
- Product is packed inside hexagon case.
- Size is engraved on product which has diameter 1.00 mm or more.
- Actual measure data is engraved on product case (only class 0)
Hardness : 58 HRC or more
Material :
Size 0.20 - 0.99 mm made from SKH51
Size 1.00 - 10.00 mm made from SUJ2
Maker catalog Click
