Liquid Silicone (Adhesive)

Brand :

AS ONE

Caution

Product Description

Liquid silicone.
[Applications]
· Single-ingredient oxime silicone adhesive sealing material, reacts with moisture in the air and hardens into an elastic, rubbery state.
· Adheres to metal, plastic, glass and almost any other material without primer while it cures.
· This product does not emit acid while curing, so it causes almost no corrosion to non-copper metals.
· After curing, the rubber has excellent heat resistance, cold resistance, weather resistance, water resistance and electrical properties, etc.
[Applications]
· Ideal as an adhesive sealant for electronic communication equipment.
· Ideal as a sealing material for car parts or gaskets for meters/instruments.

Liquid Silicone Specifications

Characteristics

Code	Model Number	Characteristics	Functionality
			Type	Pre-Curing Characteristics			Post-Curing Characteristics										Applications
			Type	Flow Characteristics	Viscosity Coefficient (25°C) P {Pa⋅s}	Tack-free Time min	Relative Density (25°C)	Hardness (JIS A)	Tensile Strength kgf/cm² {MPa}	Stretch %	Adhesive Strength kgf/cm² {MPa}	Thermal Conductivity cal/cm⋅s⋅°C {W/m⋅K}	Volume Resistivity Ω⋅cm	Breakdown Voltage kv/mm	Dielectric Constant (60 Hz)	Dielectric Tangent (60 Hz)	Adhesive	Seal	Fixed	Coating	Potting	Impregnation
02	TSE392	For general use	Alcohol	Non-liquidity	-	5	1.04	30	16 {1.6}	430	15 {1.5}	4.4 × 10^-4 {0.18}	2 × 10¹⁵	22	2.9	0.005	✓	✓	✓	-	-	-
10	TSE397			Fluidity	500 {50}	10	1.04	20	12 {1.2}	300	12｛1.2｝	4.4×10^-4｛0.18｝	2×10¹⁵	22	2.9	0.005	✓	✓	✓	✓	-	-
11	TSE399			Fluidity	25 {2.5}	10	1.04	30	13 {1.3}	140	8 {0.8}	4.4 × 10^-4 {0.18}	2×10¹⁵	20	2.9	0.005	-	-	-	✓	✓	✓
01	TSE382		Oxime	Non-liquidity	-	10	1.04	28	19 {1.9}	380	17 {1.7}	4.4 × 10^-4 {0.18}	1 × 10¹⁵	23	2.9	0.004	○	✓	✓	-	-	-
08	TSE387			Fluidity	600 {60}	90	1.04	25	18 {1.8}	300	13 {1.3}	4.4 × 10^-4 {0.18}	1 × 10¹⁵	20	2.9	0.004	✓	✓	✓	✓	-	-
09	TSE389			Fluidity	56 {5.6}	30	1.04	30	19 {1.9}	160	4 {0.4}	4.4 × 10^-4 {0.18}	1 × 10¹⁵	20	2.7	0.009	-	-	-	✓	✓	✓
12	TSE3826	For heat resistance		Non-liquidity	-	10	1.04	29	20 {2.0}	400	14 {1.4}	4.4 × 10^-4 {0.18}	1 × 10¹⁵	23	2.9	0.004	✓	✓	✓	-	-	-
13	TSE322	Adhesive for sealing	Additional type	Fluidity	1,100 {110}	60 (150°C)	1.27	45	35 {3.4}	230	25 {2.5}	6.9 × 10^-4 {0.29}	2×10¹⁵	21	2.8	0.001	✓	✓	✓	-	-	-

Chemical Resistance

Chemical Name		Volume Change	Chemical Name		Volume Change
Acid	Concentrated hydrochloric acid	◎	Oil	ASTM No.1 oil (150°C, 70h)	◎
	Hydrochloric acid (3%)	◎		ASTM No.3 oil (150°C, 70h)	△
	Concentrated sulfuric acid	Disintegration		Mineral oil	◎
	Sulfuric acid (10%)	◎		Castor oil	◎
	Concentrated nitric acid	△		Linseed oil	◎
	Nitric acid (7%)	◎		Silicone oil (35°C, 70h)	△
	Dilute acetic acid	◎	S o l v e n t	Acetone	△
	Acetic acid	◎		Butyl alcohol	✓
	Hydrofluoric acid	Disintegration		Ethyl alcohol	◎
	Citric acid	◎		Carbon tetrachloride	×
	Phosphoric acid	◎		Gasoline	×
Alkali	Concentrated ammonia solution	◎		Mineral spirit	×
	Ammonia solution (10%)	◎		Toluene	×
	Potassium hydroxide (20%)	◎	Water	Water (room temperature)	◎
	Sodium hydroxide (1%)	◎	Water	Boiling water (70h)	◎
	Sodium hydroxide (20%)	◎	Other	Detergent	◎
	Sodium hydroxide (50%)	◎		R-12 CFC	✓
Inorganic Salt Aqueous Solution	Sodium chloride (10%)	◎		CFC-114	△
	Sodium carbonate (2%)	◎		Methyl chloride	△
	Sodium carbonate (20%)	◎	-
	Hydrogen peroxide solution (3%)	◎	-

*Examination method: volume change of cured liquid silicone rubber measured after soaking for 1 week at 25°
◎: 10% or less, ○: 10 to 25%, △: 25 to 75%, ×: 75% or greater

TSE382 Specifications

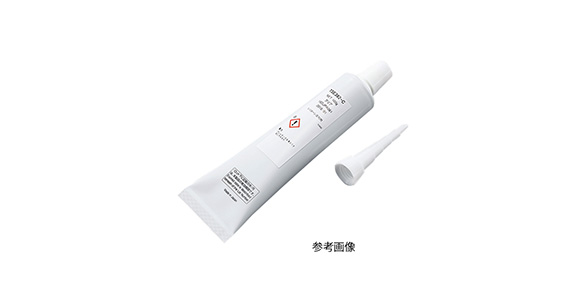

TSE382C external appearance

Features

Excellent adhesive properties. Adheres to metal, plastic, glass and almost any other material without primer.
Almost zero corrosion. This product does not emit acid while curing, so it causes almost no corrosion to non-copper metals.
No irritating odor. Does not emit unpleasant acetic acid-like smells while curing, making it suitable for use indoors.
Has excellent heat and cold resistance. Maintains rubber elasticity and adhesion within a temperature range of 55 to 200°C.
Excellent weather resistance. Excellent UV resistance, ozone resistance, water resistance, etc., so it can be used outdoors for extended periods with almost no deterioration.
Excellent electrical properties. Maintains these excellent electrical properties even in harsh conditions.
Easy to handle. Simply by pushing it out of the tube or cartridge, it will cure at room temperature and becomes rubber.
TSE382-C has UL746B temperature index Elec.150°C, Mech.140°C and UL94HB certification (File No. E56745).

Applications

Insulating waterproof sealing for electric/communication equipment
Adhesive sealing for waterproofing, dustproofing and airtight sealing of instruments.
Wind sealing for cars and marine vessels
Adheres to metals, glass, plastic, wood, etc.
Additionally, adhesive sealing for devices used outdoors or parts that require heat or cold resistance.

Precautions For Use

Clean and dry the surface of adherend thoroughly.
When handling, be sure to wear protective goggles and gloves depending on requirements.
Do not let skin come into contact with uncured adhesive for long periods of time.
Although this product has almost no effect on metal, be aware that using it on copper in an area where gas cannot escape can lead to discoloration or corrosion.
Run ventilation equipment and keep the area well ventilated when using the product.
Keep out of direct sunlight and store in a cool, dry and dark place.
Store out of reach of children.
