Container Rack Case
Brand :
SAKAE
Caution
- The product images are representative only. Specifications may differ for each part number, including shape and color.
- 〈Important Notice Regarding List Price〉
After confirming the part number, click the "Check Price" button on the right side of the page to display the latest price.
Product Description
Open type storage cabinet that stores resin parts bin box
[Features]
・ This is a basic set combination with various containers in the rack case.
·Uniformly distributed load capacity per shelf: 100 kg (NCR series) and 50 kg (SCR series), which are as strong as a steel shelf.
・ The NCR series is an SA type that can open a transparent small window type lid, and the SCR series is a Z type that has a wide opening for easy access.
·The products in the SCR series can be used with free combination of boxes by adding a shelf board (optional).
Product features and specifications
Basic specifications and features of the product
NCR series

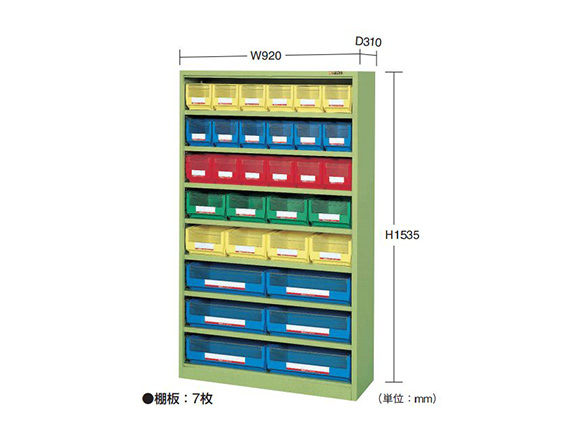

Product images (NCR-15A)
| Width × depth × height | Product Number | Weight |
|---|---|---|
| 920 × 310 × 1535 | NCR-15A | 54 kg |
| 920 × 310 × 1895 | NCR-18A | 66 kg |

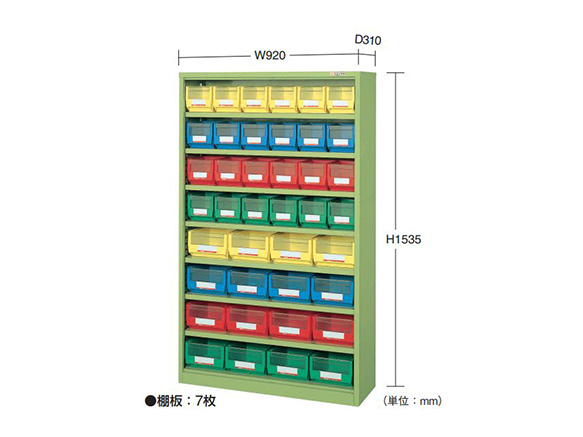

Product images (NCR-15E)
| Width × depth × height | Product Number | Weight |
|---|---|---|
| 920 × 310 × 1535 | NCR-15E | 52 kg |
| 920 × 310 × 1895 | NCR-18F | 65 kg |
Product images (NCR-15C)
| Width × depth × height | Product Number | Weight |
|---|---|---|
| 920 × 310 × 1535 | NCR-15C | 41 kg |
| 920 × 310 × 1895 | NCR-18D | 66 kg |
Product images (SCR-18CI)
| Width × depth × height | Product Number | Weight |
|---|---|---|
| 852 × 320 × 900 | SCR-9AI | 30 kg |
| 852 × 320 × 1800 | SCR-18AI | 48 kg |
| 852 × 320 × 1800 | SCR-18CI | 50 kg |

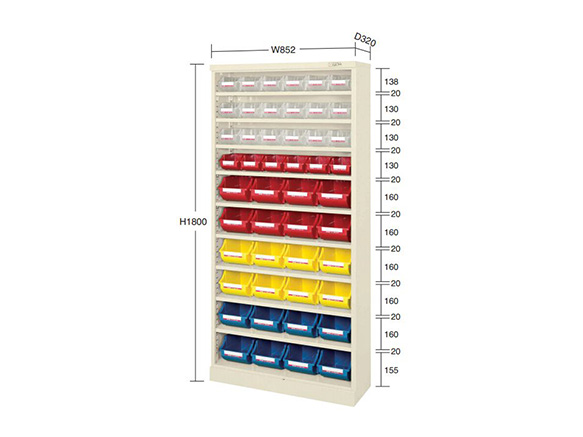

Product images (SCR-18FI)
| Width × depth × height | Product Number | Weight |
|---|---|---|
| 852 × 320 × 900 | SCR-9BI | 33 kg |
| 852 × 320 × 1800 | SCR-18TI | 48 kg |
| 852 × 320 × 1800 | SCR-18FI | 48 kg |

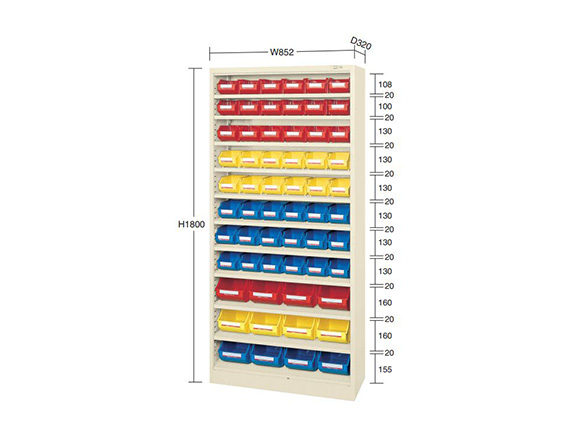

Product images (SCR-18GI)
| Width × depth × height | Product Number | Weight |
|---|---|---|
| 852 × 320 × 900 | SCR-9CI | 27 kg |
| 852 × 320 × 1800 | SCR-18BI | 47 kg |
| 852 × 320 × 1800 | SCR-18GI | 48 kg |
Usage method and usage examples

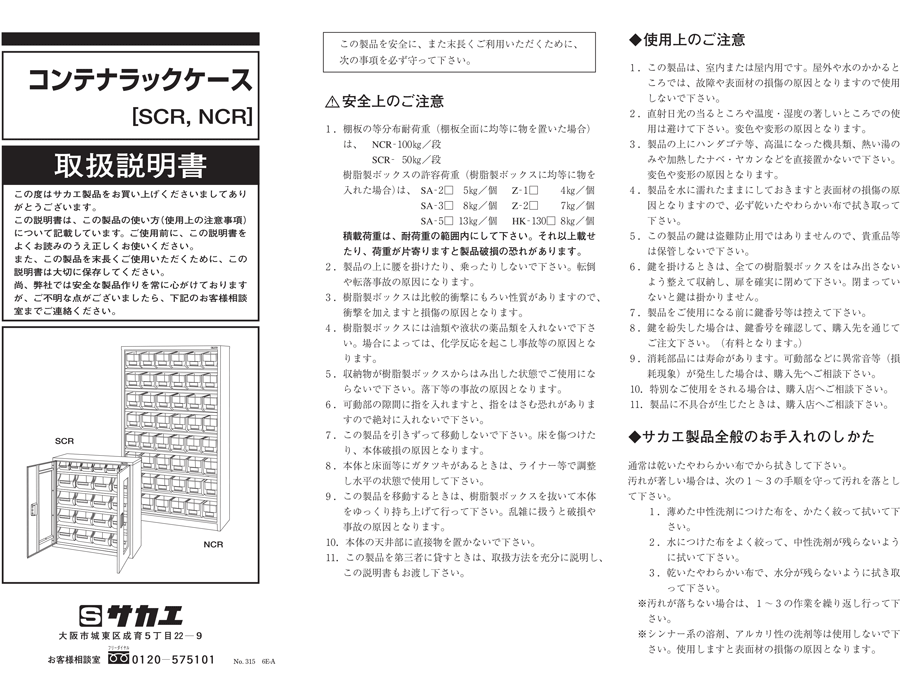

Instruction manual
