Bishamon Lifter BX

Name: Bishamon Lifter BX
Brand: SUGIYASU
Availability: PreOrder

Click this image to zoom it.

Move the mouse over or click the image to zoom

Until 31/05/2024

Brand :

SUGIYASU

Specification / DimensionsClear all selection

Amount Of Content

see all
(1) see less

Uniform Load (kg)

see all
(4) see less

Table height Minimum (mm)

see all
(3) see less

Table dimensions Width (mm)

see all
(3) see less

Table dimensions Length (mm)

see all
(3) see less

Table height Maximum (mm)

see all
(3) see less

Days to Ship :

Sort by

By Fastest Delivery Date
By Slowest Delivery Date

Standard Unit Price :

Sort by

Price: Low to High
By Highest Price

Quantity

Standard Unit Price:: ฿ 20,050.00- Special Price
Days to Ship :: 40 Day(s)

Details

From :

฿ 20,050.00 /Unit
Order Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

Part Number
BX-15 SALE
BX-25 SALE
BX-50 SALE
BX-75 SALE

Price	Name	Minimum Order Qty.	Days to Ship	Uniform Load (kg)	Table height Minimum (mm)	Table dimensions Width (mm)	Table dimensions Length (mm)	Table height Maximum (mm)	Stroke (mm)	Stepping Times (times)	Wheel Diameter, D (mm)	Trusco Code	Mass (kg)	Turbine Oil	Amount Of Content
฿ 20,050.00 ฿ 20,050.00	HAND LIFTERS-PORTABLE LIFT TA	1 Piece(s)	40 Day(s)	150	215	450	700	733	518	15	100 (Rubber)	460-4822	33	ISO-VG22	1 unit
฿ 25,740.00 ฿ 25,740.00	HAND LIFTERS-PORTABLE LIFT TA	1 Piece(s)	40 Day(s)	250	290	500	813	867	577	25	100 (Rubber)	460-4831	69	ISO-VG32	1 unit
฿ 52,933.00 ฿ 52,933.00	HAND LIFTERS-PORTABLE LIFT TA	1 Piece(s)	40 Day(s)	500	438	518	1010	998	560	50	150 (Urethane)	460-4865	112	ISO-VG32	1 unit
฿ 69,043.00 ฿ 69,043.00	HAND LIFTERS-PORTABLE LIFT TA	1 Piece(s)	40 Day(s)	750	438	518	1010	998	560	67	150 (Urethane)	460-4873	115	ISO-VG32	1 unit

Basic Specifications

Product Type

Moving Lifter
Color

Orange
Features

Moving manufactured item to the next process can be done easily.
Specifications

Swivel Casters and Swivel Casters with Stopper, 1 Piece Each, Fixed Casters 2 Pieces, with Overload Protection Device
Intended Use

As a lifting trolley at factories, distribution centers, warehouses etc.
Lifting Method

Stepping type hydraulic
Amount Of Content

1 unit

Product Description

Bishamon MobiLift™ - Electric Hydraulic Scissor Lift Tables
[Features]
· Heavy-duty construction with captured scissor rollers for maximum stability
· High quality casters and wheels for exceptional rollability
· Foot actuated caster brake
· Heavy duty maintenance scissor lock pin
· Durable powder coated finish
[Applications]
· From stocking shelves in retail stores to lifting and moving materials in machine shops and manufacturing operations, MobiLifts improve productivity.

Part Numbers

Part Number
BX-15 SALE
BX-25 SALE
BX-50 SALE
BX-75 SALE

Price	Name	Minimum Order Qty.	Days to Ship	Uniform Load (kg)	Table height Minimum (mm)	Table dimensions Width (mm)	Table dimensions Length (mm)	Table height Maximum (mm)	Stroke (mm)	Stepping Times (times)	Wheel Diameter, D (mm)	Trusco Code	Mass (kg)	Turbine Oil	Amount Of Content
฿ 20,050.00 ฿ 20,050.00	HAND LIFTERS-PORTABLE LIFT TA	1 Piece(s)	40 Day(s)	150	215	450	700	733	518	15	100 (Rubber)	460-4822	33	ISO-VG22	1 unit
฿ 25,740.00 ฿ 25,740.00	HAND LIFTERS-PORTABLE LIFT TA	1 Piece(s)	40 Day(s)	250	290	500	813	867	577	25	100 (Rubber)	460-4831	69	ISO-VG32	1 unit
฿ 52,933.00 ฿ 52,933.00	HAND LIFTERS-PORTABLE LIFT TA	1 Piece(s)	40 Day(s)	500	438	518	1010	998	560	50	150 (Urethane)	460-4865	112	ISO-VG32	1 unit
฿ 69,043.00 ฿ 69,043.00	HAND LIFTERS-PORTABLE LIFT TA	1 Piece(s)	40 Day(s)	750	438	518	1010	998	560	67	150 (Urethane)	460-4873	115	ISO-VG32	1 unit

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs.

The product list can be filtered using the selections found beneath the specification item name.

Product Specifications

A lifter that is easy to use for moving in factories, distribution centers, etc.

BX-15

Uses a safer and more convenient lowering lever

Lever-style Lowering Control

Product Specifications

Lifting method: Foot-operated hydraulic type
Flexible Casters, Flexible Casters with Stoppers, 1 Each, Fixed Casters 2
With overload prevention device
Country of origin: Taiwan

Part number	Maximum Capacity (kg)	Table dimension (mm) width x length	Table height (mm)	Number of Pumps To Max Height (times)	Wheel diameter D (mm)	Weight (kg)
BX-15	150	450 x 700	215 - 733	15	100 (rubber)	33
BX-25	250	500 x 813	290 - 867	25	100 (rubber)	69
BX-50	500	518 x 1010	438 - 998	50	150 (Urethane)	112
BX-75	750	518 x 1010	438 - 998	67	150 (Urethane)	115

Warning

Do not move with the table raised while luggage is loaded.

Recommended product

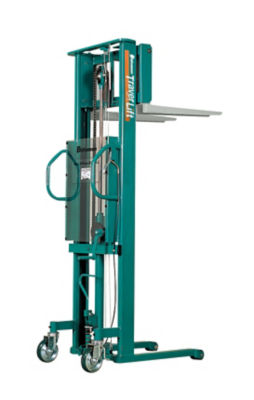

Bishamont Traverslift (manual hydraulic type)

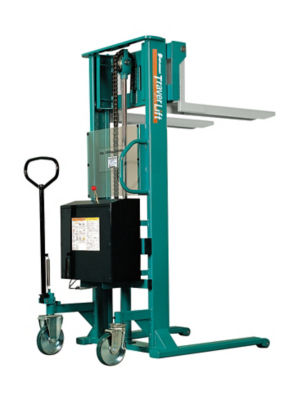

Traber lift Battery hydraulic type / Climbing type

Bishamont Lifter BX (manual type) (hydraulic pedal type) image

Bishamon Lifter BX (Double scissor Models)

This page is Bishamon Lifter BX (manual type) (foot pedal type), part number BX-15.
You can find the specification information about model number BX-15 in this page.

Please note that the specifications and dimensions of some model numbers may not be fully available, so please see the manufacturer's catalog for details.
