IMX-C4HV 4-Flute Damping Radius Head
Brand :
MITSUBISHI MATERIALS
Caution
- Product pictures are for reference only !!!!
- Please check product specification before order !!!!
Product Description
With an uneven lead, the vibration-damping radius type achieves stable cutting by suppressing chatter even for difficult-to-cut materials and workpieces with long protrusions
Product Information

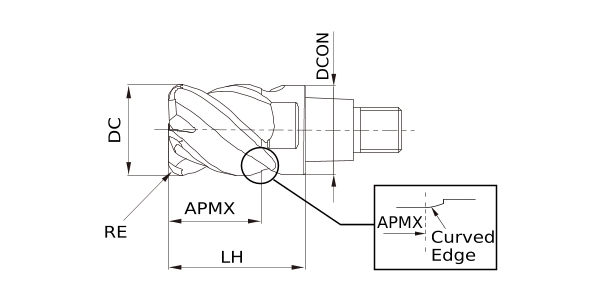

| Order No. | DC | RE | APMX | LH | DCON | Number of flutes | Grade | Figure |
|---|---|---|---|---|---|---|---|---|
| EP7020 | ||||||||
| IMX10C4HV100R05010 | 10 | 0.5 | 10 | 16 | 9.7 | 4 | ● | 3 |
| IMX10C4HV100R10010 | 10 | 1 | 10 | 16 | 9.7 | 4 | ● | 3 |
| IMX10C4HV100R15010 | 10 | 1.5 | 10 | 16 | 9.7 | 4 | ● | 3 |
| IMX10C4HV100R20010 | 10 | 2 | 10 | 16 | 9.7 | 4 | ● | 3 |
| IMX10C4HV100R25010 | 10 | 2.5 | 10 | 16 | 9.7 | 4 | ● | 3 |
| IMX10C4HV100R30010 | 10 | 3 | 10 | 16 | 9.7 | 4 | ● | 3 |
| IMX10C4HV120R10012 | 12 | 1 | 12.5 | 19 | 9.7 | 4 | ● | 3 |
| IMX10C4HV120R20012 | 12 | 2 | 12.5 | 19 | 9.7 | 4 | ● | 3 |
| IMX12C4HV120R05012 | 12 | 0.5 | 12 | 19 | 11.7 | 4 | ● | 3 |
| IMX12C4HV120R10012 | 12 | 1 | 12 | 19 | 11.7 | 4 | ● | 3 |
| IMX12C4HV120R15012 | 12 | 1.5 | 12 | 19 | 11.7 | 4 | ● | 3 |
| IMX12C4HV120R20012 | 12 | 2 | 12 | 19 | 11.7 | 4 | ● | 3 |
| IMX12C4HV120R25012 | 12 | 2.5 | 12 | 19 | 11.7 | 4 | ● | 3 |
| IMX12C4HV120R30012 | 12 | 3 | 12 | 19 | 11.7 | 4 | ● | 3 |
| IMX12C4HV120R40012 | 12 | 4 | 12 | 19 | 11.7 | 4 | ● | 3 |
| IMX12C4HV140R10014 | 14 | 1 | 14.5 | 22.5 | 11.7 | 4 | ● | 3 |
| IMX12C4HV140R20014 | 14 | 2 | 14.5 | 22.5 | 11.7 | 4 | ● | 3 |
| IMX16C4HV160R05016 | 16 | 0.5 | 16 | 24 | 15.5 | 4 | ● | 2 |
| IMX16C4HV160R10016 | 16 | 1 | 16 | 24 | 15.5 | 4 | ● | 3 |
| IMX16C4HV160R15016 | 16 | 1.5 | 16 | 24 | 15.5 | 4 | ● | 3 |
| IMX16C4HV160R20016 | 16 | 2 | 16 | 24 | 15.5 | 4 | ● | 3 |
| IMX16C4HV160R25016 | 16 | 2.5 | 16 | 24 | 15.5 | 4 | ● | 3 |
| IMX16C4HV160R30016 | 16 | 3 | 16 | 24 | 15.5 | 4 | ● | 3 |
| IMX16C4HV160R40016 | 16 | 4 | 16 | 24 | 15.5 | 4 | ● | 3 |
| IMX16C4HV160R50016 | 16 | 5 | 16 | 24 | 15.5 | 4 | ● | 3 |
| IMX16C4HV180R10018 | 18 | 1 | 18.5 | 27 | 15.5 | 4 | ● | 3 |
| IMX16C4HV180R30018 | 18 | 3 | 18.5 | 27 | 15.5 | 4 | ● | 3 |
| IMX20C4HV200R05021 | 20 | 0.5 | 21 | 30 | 19.5 | 4 | ● | 1 |
| IMX20C4HV200R10021 | 20 | 1 | 21 | 30 | 19.5 | 4 | ● | 1 |
| IMX20C4HV200R15021 | 20 | 1.5 | 21 | 30 | 19.5 | 4 | ● | 1 |
| IMX20C4HV200R20021 | 20 | 2 | 21 | 30 | 19.5 | 4 | ● | 1 |
| IMX20C4HV200R25021 | 20 | 2.5 | 21 | 30 | 19.5 | 4 | ● | 1 |
| IMX20C4HV200R30021 | 20 | 3 | 21 | 30 | 19.5 | 4 | ● | 1 |
| IMX20C4HV200R40021 | 20 | 4 | 21 | 30 | 19.5 | 4 | ● | 1 |
| IMX20C4HV200R50021 | 20 | 5 | 21 | 30 | 19.5 | 4 | ● | 1 |
| IMX20C4HV200R63521 | 20 | 6.35 | 21 | 30 | 19.5 | 4 | ● | 1 |
| IMX20C4HV220R10023 | 22 | 1 | 23 | 33 | 19.5 | 4 | ● | 3 |
| IMX20C4HV220R30023 | 22 | 3 | 23 | 33 | 19.5 | 4 | ● | 3 |
| IMX25C4HV250R10026 | 25 | 1 | 26 | 37.5 | 24.5 | 4 | ● | 1 |
| IMX25C4HV250R20026 | 25 | 2 | 26 | 37.5 | 24.5 | 4 | ● | 1 |
| IMX25C4HV250R30026 | 25 | 3 | 26 | 37.5 | 24.5 | 4 | ● | 1 |
| IMX25C4HV250R40026 | 25 | 4 | 26 | 37.5 | 24.5 | 4 | ● | 1 |
| IMX25C4HV250R50026 | 25 | 5 | 26 | 37.5 | 24.5 | 4 | ● | 1 |
| IMX25C4HV250R63526 | 25 | 6.35 | 26 | 37.5 | 24.5 | 4 | ● | 1 |
| IMX25C4HV280R10029 | 28 | 1 | 29 | 41.5 | 24.5 | 4 | ● | 3 |
| IMX25C4HV280R30029 | 28 | 3 | 29 | 41.5 | 24.5 | 4 | ● | 3 |
| IMX16C4HV160R10032 | 16 | 1 | 32 | 40 | 15.5 | 4 | ● | 4 |
| IMX16C4HV160R30032 | 16 | 3 | 32 | 40 | 15.5 | 4 | ● | 4 |
| IMX20C4HV200R10040 | 20 | 1 | 40 | 50 | 19.5 | 4 | ● | 4 |
| IMX20C4HV200R30040 | 20 | 3 | 40 | 50 | 19.5 | 4 | ● | 4 |
| IMX10C4HV100R03010 | 10 | 0.3 | 10 | 16 | 9.7 | 4 | ● | 2 |
| IMX10C4HV110R05011 | 11 | 0.5 | 11.5 | 18 | 9.7 | 4 | ● | 3 |
| IMX10C4HV110R10011 | 11 | 1 | 11.5 | 18 | 9.7 | 4 | ● | 3 |
| IMX10C4HV120R03012 | 12 | 0.3 | 12.5 | 19 | 9.7 | 4 | ● | 3 |
| IMX10C4HV120R05012 | 12 | 0.5 | 12.5 | 19 | 9.7 | 4 | ● | 3 |
| IMX12C4HV120R03012 | 12 | 0.3 | 12 | 19 | 11.7 | 4 | ● | 2 |
| IMX12C4HV130R05013 | 13 | 0.5 | 13.5 | 21.5 | 11.7 | 4 | ● | 3 |
| IMX12C4HV130R10013 | 13 | 1 | 13.5 | 21.5 | 11.7 | 4 | ● | 3 |
| IMX12C4HV140R03014 | 14 | 0.3 | 14.5 | 22.5 | 11.7 | 4 | ● | 3 |
| IMX12C4HV140R05014 | 14 | 0.5 | 14.5 | 22.5 | 11.7 | 4 | ● | 3 |
| IMX16C4HV160R03016 | 16 | 0.3 | 16 | 24 | 15.5 | 4 | ● | 2 |
| IMX16C4HV170R05017 | 17 | 0.5 | 17.5 | 26 | 15.5 | 4 | ● | 3 |
| IMX16C4HV170R10017 | 17 | 1 | 17.5 | 26 | 15.5 | 4 | ● | 3 |
| IMX16C4HV180R03018 | 18 | 0.3 | 18.5 | 27 | 15.5 | 4 | ● | 3 |
| IMX16C4HV180R05018 | 18 | 0.5 | 18.5 | 27 | 15.5 | 4 | ● | 3 |
| IMX16C4HV180R20018 | 18 | 2 | 18.5 | 27 | 15.5 | 4 | ● | 3 |
| IMX20C4HV200R03020 | 20 | 0.3 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV200R05020 | 20 | 0.5 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV200R10020 | 20 | 1 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV200R15020 | 20 | 1.5 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV200R20020 | 20 | 2 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV200R25020 | 20 | 2.5 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV200R30020 | 20 | 3 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV200R40020 | 20 | 4 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV200R50020 | 20 | 5 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV200R60020 | 20 | 6 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV200R63520 | 20 | 6.35 | 20 | 30 | 19.5 | 4 | ● | 2 |
| IMX20C4HV220R05023 | 22 | 0.5 | 23 | 33 | 19.5 | 4 | ● | 3 |
| IMX20C4HV220R20023 | 22 | 2 | 23 | 33 | 19.5 | 4 | ● | 3 |
| IMX25C4HV250R10025 | 25 | 1 | 25 | 37.5 | 24.5 | 4 | ● | 2 |
| IMX25C4HV250R20025 | 25 | 2 | 25 | 37.5 | 24.5 | 4 | ● | 2 |
| IMX25C4HV250R30025 | 25 | 3 | 25 | 37.5 | 24.5 | 4 | ● | 2 |
| IMX25C4HV250R40025 | 25 | 4 | 25 | 37.5 | 24.5 | 4 | ● | 2 |
| IMX25C4HV250R50025 | 25 | 5 | 25 | 37.5 | 24.5 | 4 | ● | 2 |
| IMX25C4HV250R60025 | 25 | 6 | 25 | 37.5 | 24.5 | 4 | ● | 2 |
| IMX25C4HV250R63525 | 25 | 6.35 | 25 | 37.5 | 24.5 | 4 | ● | 2 |
