ASX400 Type Face Milling Machine (Arbor Type)
Brand :
MITSUBISHI MATERIALS
Caution
Product Description
[Features]
· High-precision non-grinding insert.
· Cost effective by using 4 corners.
· Good wall accuracy due to curved cutting edge and high-precision main body.
· Screw-on type clamp.
Product features and specifications
Basic specifications and features of the product

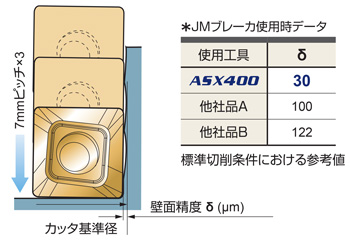

High accuracy
By adopting a curved cutting edge and a high-precision body / insert, not only a high-quality bottom surface finish but also good wall surface accuracy can be obtained.
By adopting a curved cutting edge and a high-precision body / insert, not only a high-quality bottom surface finish but also good wall surface accuracy can be obtained.
Low resistance
The insert uses a three-dimensional curved cutting edge and a large rake angle to show outstanding sharpness.
The insert uses a three-dimensional curved cutting edge and a large rake angle to show outstanding sharpness.

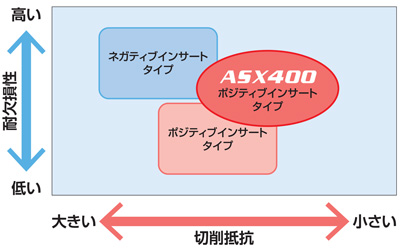

| — | Cutting force | Fracture resistance | Cutting heat |
|---|---|---|---|
| ASX400 | Small | Low | Low |
| Triangular negative insert type | Large | High | High |
ASX is a well-balanced cutter with low cutting resistance and excellent fracture resistance even with a positive insert type cutter.
Due to its low cutting resistance (cutting power), it is suitable for finish cutting, etc. when the workpiece is thin or when you do not want to increase the cutting heat.
Due to its low cutting resistance (cutting power), it is suitable for finish cutting, etc. when the workpiece is thin or when you do not want to increase the cutting heat.
High reliability
High fastening force Torx plus ® is used for the clamp screw. Combined with the adoption of carbide sheet and Mitsubishi's original insert shatterproof mechanism (AFI), the seating rigidity is high and stable cutting is possible.
High fastening force Torx plus ® is used for the clamp screw. Combined with the adoption of carbide sheet and Mitsubishi's original insert shatterproof mechanism (AFI), the seating rigidity is high and stable cutting is possible.

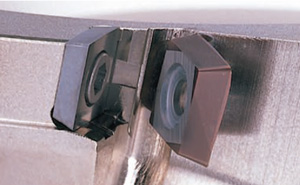

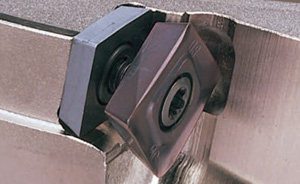

Ease of use
Uses a screw-on method that allows anyone to easily and accurately insert clamp.
Corner changes can be done without completely removing the screws.
Uses a screw-on method that allows anyone to easily and accurately insert clamp.
Corner changes can be done without completely removing the screws.
Performance/test information

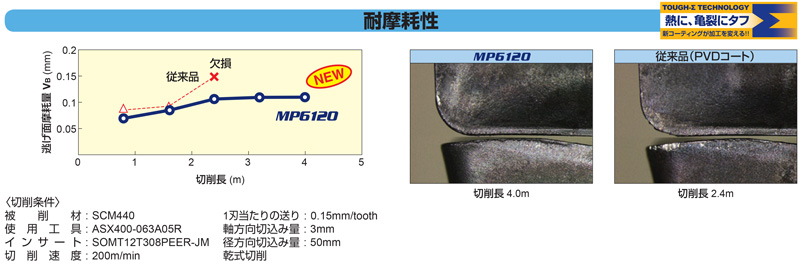

Cutting alloy steel

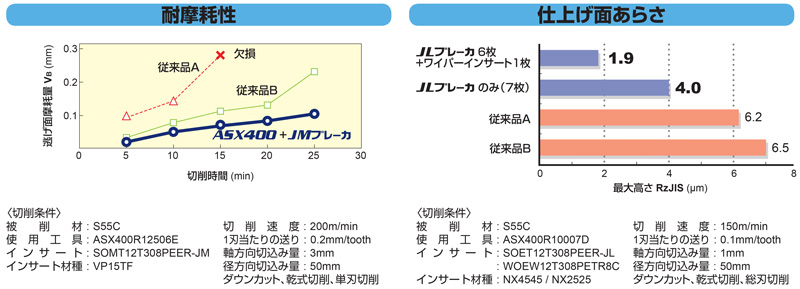

Cutting of general steel

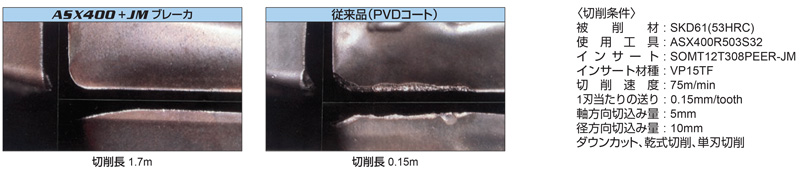

Cutting hardened steel

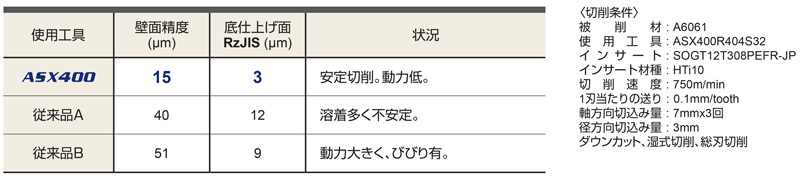

Cutting of aluminum alloy

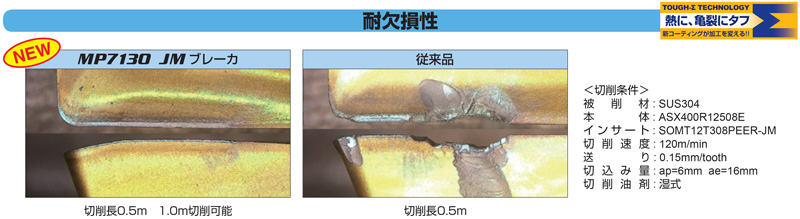

Cutting stainless steel
Defect resistance is greatly improved by the effect of PVD laminated coating.

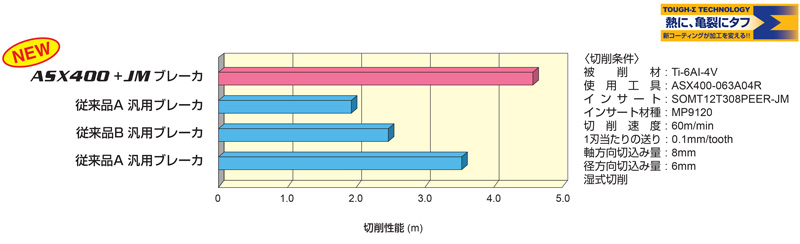

Cutting heat-resistant alloy

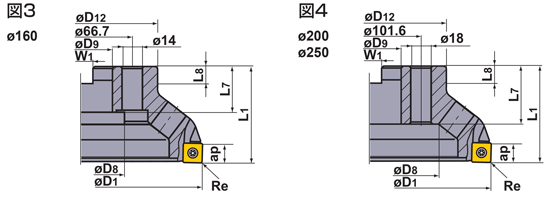

Drawing
For millimeter size arbor
Usage method and usage examples

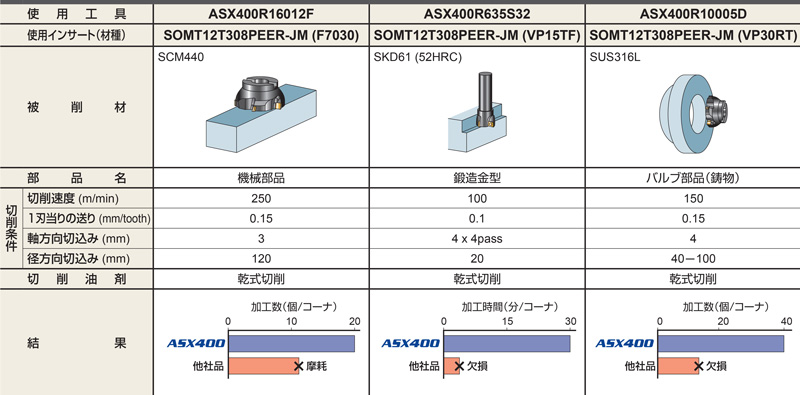

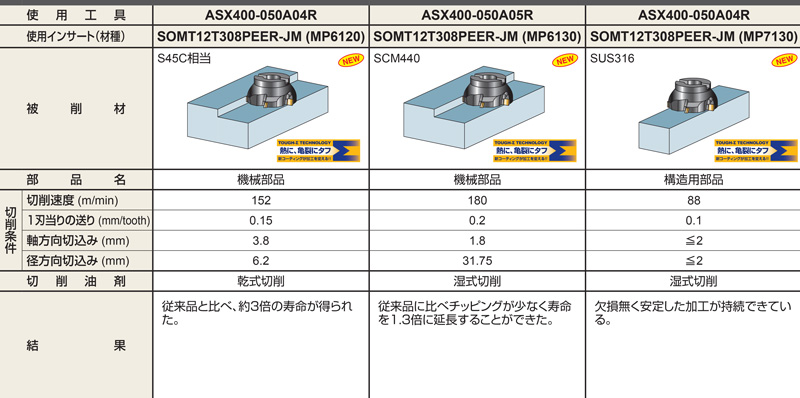

Usage examples
