Delta UPS N Series (6/10 kVA)
Caution
Product Description
- The Amplon N series 6-10kVA UPS is a single-phase on-line UPS with pioneering technology that provides output power factor up to unity and AC-AC efficiency to a maximum 95%.
- Its remarkably compact dimensions reserve more room for critical equipment such as workstations, POSs, ATMs, office appliances, small server rooms, and production equipment.
- The Amplon N series superior features include a N+X parallel redundancy function and variable fan speed control to guarantee high system availability and best Total Cost of Ownership (TCO).

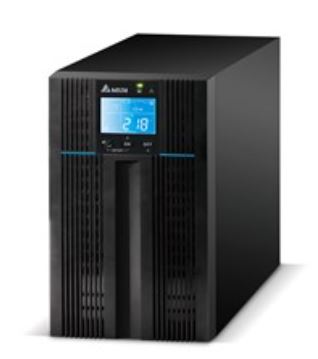

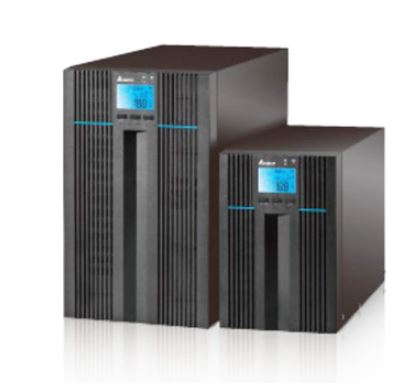

N Series 6/10 kVA
Innovative. Compact. High Performance.
The Amplon N series 6-10kVA UPS is a single-phase on-line UPS with pioneering technology that provides output power factor up to unity and AC-AC efficiency to a maximum 95%. Its remarkably compact dimensions reserve more room for critical equipment such as workstations, POSs, ATMs, office appliances, small server rooms, and production equipment. The Amplon N series superior features include a N+X parallel redundancy function and variable fan speed control to guarantee high system availability and best Total Cost of Ownership (TCO).
Features & Benefits
The Most Compact Design and Best TCO
• The smallest dimensions in its class saves significant space for more critical equipment
• A pioneer in unity power factor (kVA=kW) to maximize power availability
• The highest AC-AC efficiency up to 95% and efficiency of 98% in ECO mode for exceptional energy cost savings
• Automatic speed regulation function with multi-stage fan speed control maximizes system efficiency, significantly reduces audible noise, and prolongs the service life of the fans
High Availability
• True online double-conversion topology and zero transfer time to battery ensure high reliability
• Parallel configuration for expansion and N+X redundancy up to 4 units
• Advanced DSP (Digital Signal Processor) controller for fast computation capabilities and a simplified control circuit for enhanced stability
• Generator compatibility ensures continuous and reliable power
Intelligent Management

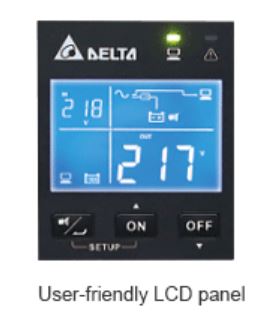

• Excellent local communications through user-friendly LCD display and LED indicators
• Intelligent battery management maximizes battery performance and extends battery life
• Various types of communication interfaces enhance monitoring and manageability
Applications
Delta UPS - Amplon Catalog Click here
Specifications
Model
• N-6K, N-10K
Power Rating
• N-6K: 6 kVA / 6 kW
• N-10K: 10 kVA / 10 kW
Input
Nominal Voltage: 200/208/220/230/240 Vac Voltage Range 200/208 (de-rating to 90%): 100~280 Vac(1) 220/230/240: 100~280 Vac(2) Frequency: 40-70 Hz Power Factor: > 0.99 (full load) Current Harmonic Distortion: < 3%
Output
Power Factor: 1 Nominal Voltage: 200/208/220/230/240 Vac Frequency: 50/60 ±0.05 Hz Voltage Harmonic Distortion: < 2% (linear load) Overload Capability: < 105%: continuous, 105-125%: 2 minutes, 125-150%: 30 seconds Crest factor: 3:1
Efficiency
• AC-AC: Up to 95%
• ECO mode: Up to 98%
Battery
• Voltage: 192-264 Vdc adjustable
• Charge Current : 1.5-8 A selectable
Audible Noise: < 50 dBA
Display: LED indicators and LCD display
Communication Interfaces: REPO x 1, RS-232 Port x 1, USB Port x 1, Parallel Port x 2, Smart Slot x 1
Physical
Dimensions (W x D x H): 190 x 390 x 325 mm Weight • N-6K: 10.1 kg
• N-10K: 12.7 kg
Environment
• Operating Altitude: 1000 meters (without de-rating)
• Operating Temperature: 0 to 40℃ (at 100% load), 45 to 55℃ (de-rating to 80%)
• Storage Temperature: -15 to 50℃
• Relative Humidity: 5-95% (non-condensing)
(1) Linear de-rating between 40-90% load at 100~175 Vac.
(2) Linear de-rating between 40-100% load at 100~194 Vac.
